Minor Service Kit for Volvo Penta D1/D2 Seawater Pump 3593655 - JSM0073

$187.00 AUD : Incl GST

Minor repair kit for Volvo Penta Seawater Pump 3593655 used on Volvo Penta D1/D2 Series Engines and JMP Marine pump JPR-VP0010D-02.

Volvo Penta Engines: D1-30A/B/F, D2-40A/B/F, MD2010, MD2020, MD2030, MD2040

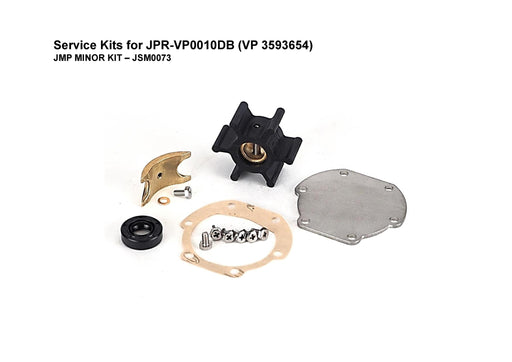

Kit Contents: Interchangeable with Volvo Penta parts.

This is a JMP Marine part JSM 0073.

Can use in place of wear kit VP 21951370

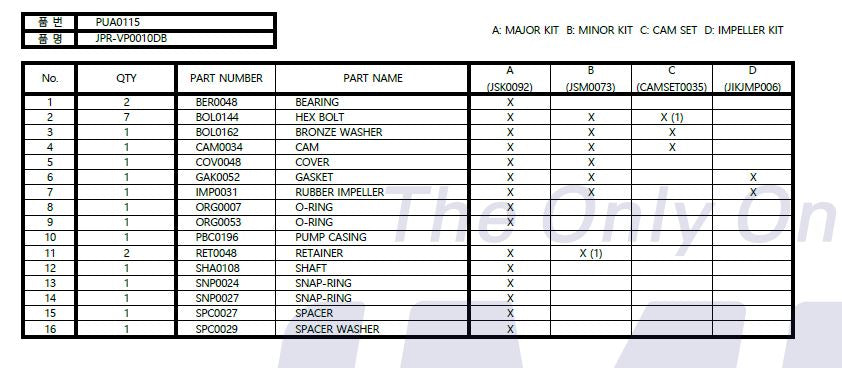

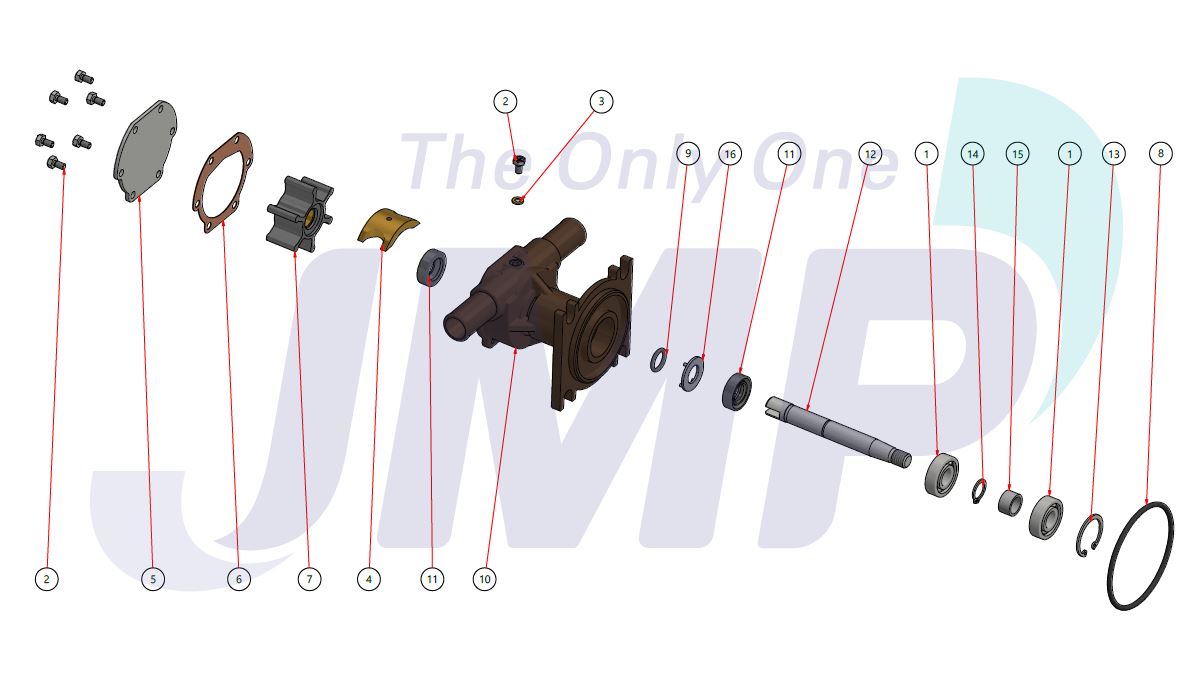

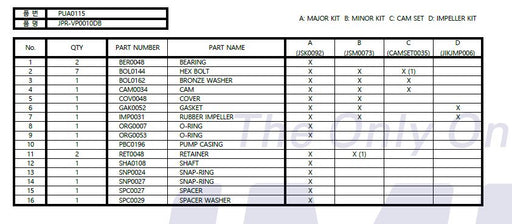

No	Description	Qty	Volvo Penta	Compatibility	JMP Number	In Kit
	Sea Water Pump Assy	1	3593655	Yes	JPR-VP0010DB
1	Ball Bearing	2	181717	Yes	BER0048
2	Screw, End Cover	6	840384 21951302	Yes	BOL0144	✔
3	Cam Set	1	827009	Yes	CAMSET0035	✔
	Cam	1	981749	Yes	CAM0034	✔
	Screw, Cam	1	18669	Yes	BOL0144	✔
	Washer, Cam	1	840386	Yes	BOL0162	✔
4	End Cover (STS)	1	3593659	Yes	COV0048	✔
5	Impeller Kit	1	840385	Yes	7051K	✔
	Impeller	1	925055	Yes	7051-01
	Gasket, End Cover	1	3580063	Yes	GAK0052	✔
6	Slinger (O-ring)	1	833996	Yes	ORG0053	✔
7	O--ring (Mounting)	1	3580380	Yes	ORG0056
8	Lip Seal	2	914515	Yes	RET0048
9	Shaft	1	914446	Yes	SHA0108
10	Snap-Ring(Large)	1	3581367	Yes	SNP0024
11	Sanp Ring(Small)	1	859101	Yes	SNP0027
12	Spacer Sleeve	1	3581367	Yes	SPC0027
13	Spacer Washer	1	N/A	Yes	SPC0029
14	Service Kit - Minor	1		Yes	JSM0073
15	Service Kit - Major	1		Yes	JSK0092
