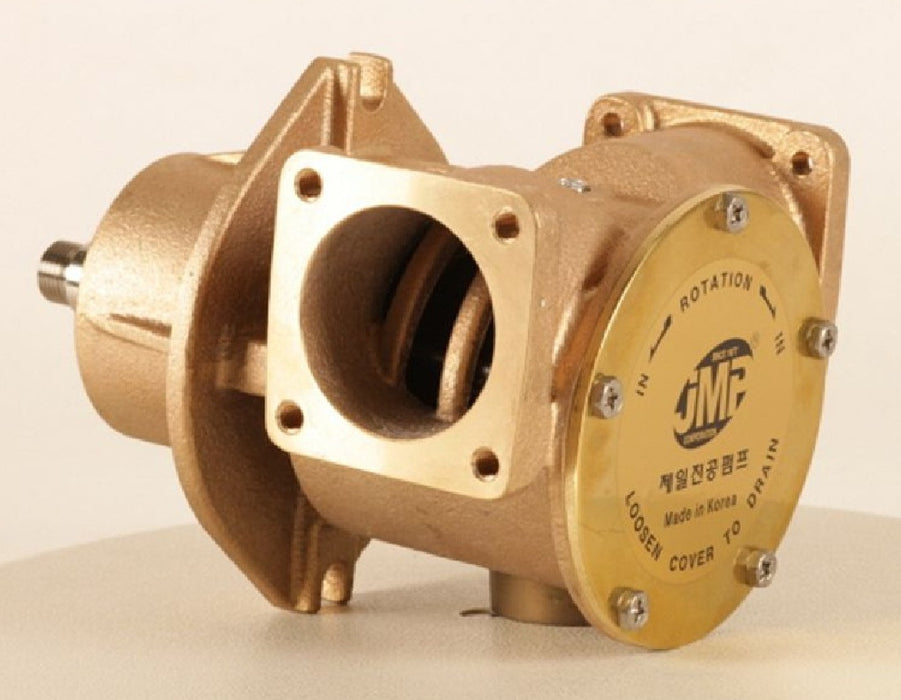

Yanmar 6SY, 8SY; Scania D9/11/12/16 Seawater Pump Replacement JPR-SC50IF

Yanmar 6SY, 8SY; Scania D9 Seawater Pump Replacement

Replaces Johnson 10-24308-02

Suits Yanmar Engines: 6SY-STP720, 8SY-STP900

Replaces Yanmar pump: 165000-36440

Suits Scania Engines: D9, DI12, DI13, DI16, DN11, DS11, DSI11

Replaces Scania pump: 1785018 (Pump housing 1 304 981)  - 1101073



This is a non-OEM, aftermarket part JMP Pump JPR-SC50 IF

See parts list below. Internal parts are not all the same, JMP has made manufacturing improvements to this pump.

Mounting:               Flange

Port size:                2" / Flange

Impeller:                 JMP 8301-01, Ancor 2054 (Scania 323897 / Johnson 09-814B)

CAM:                     CAMSET 0016

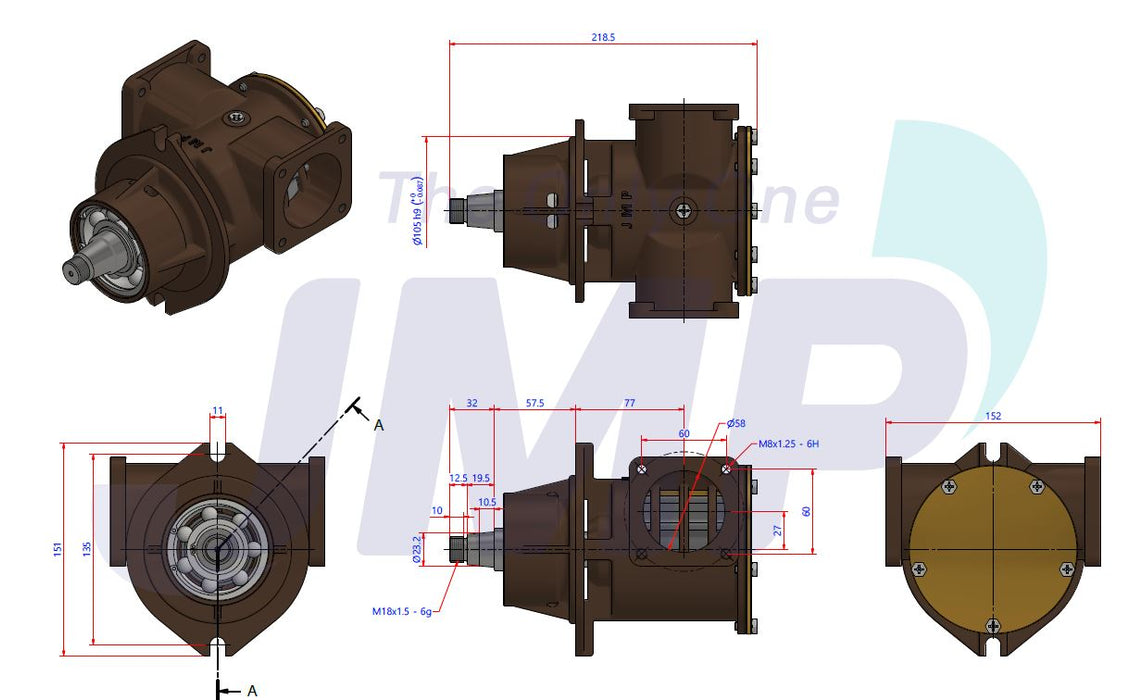

Size (lxwxh):          220 x 152 x 150 mm

Weight:                  7.4kgs (approx)

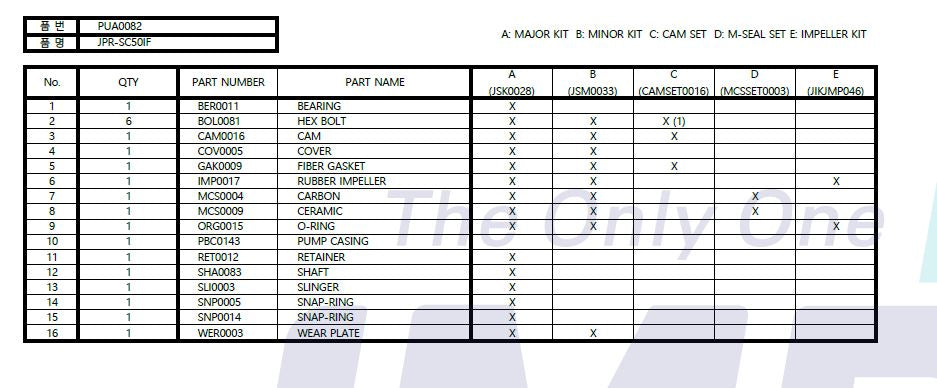

Service Kits (Replacement Parts) are available.

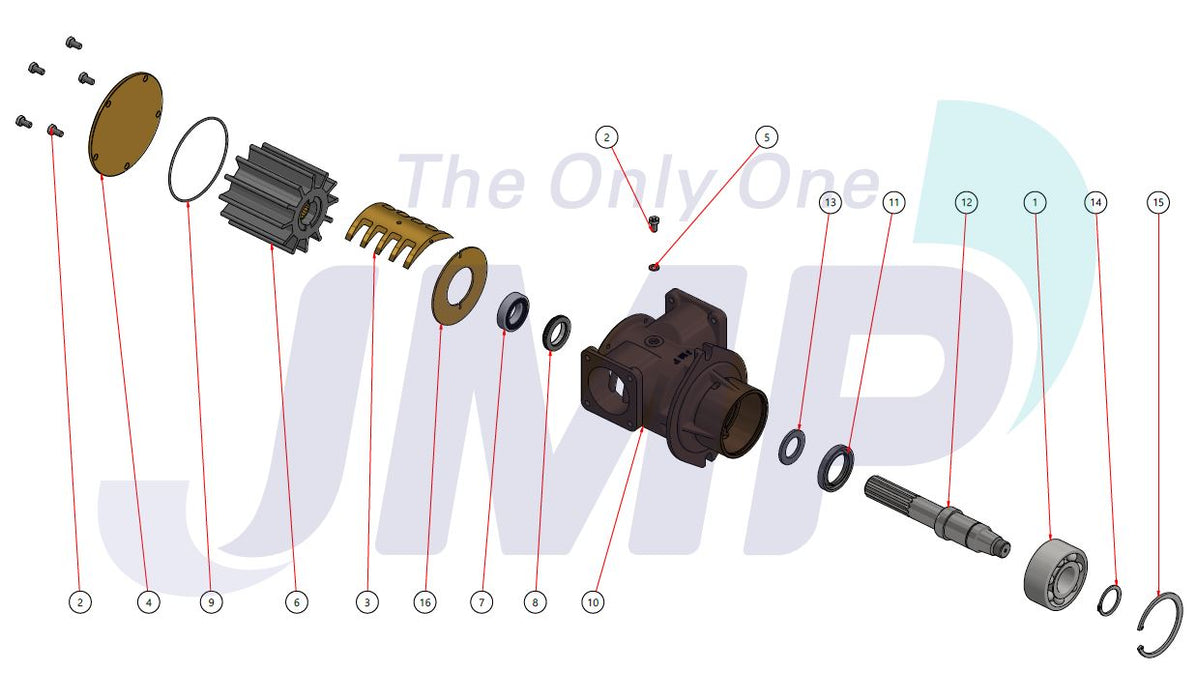

CROSS REFERENCE PARTS LISTING AND COMPATIBILITY

No.

DESCRIPTION

JMP

SCANIA

JOHNSON

Compatibility



Pump Assembly

JPR-SC50IF

1785018

10-24308-02

O

1

Pump Housing

PBC0143

1 304 981

01-13079

X

2

Shaft

SHA0083

1 304 982

01-35282

X

3

Cam

CAM0016

1 119 692

01-45173

X

4

Impeller

8301-01

323 897

08-814B

O

5

End Cover

COV0005

1 304 983

01-35284

X

6

O-RING for End Cover (Gasket)

ORG0015

1 304 984

01-45354

X

7

Wear Plate

WER0003

216 253

01-42423

X

8

Pin for Wear Plate



262 952

01-42426-2



9

Slinger

SLI0003

216 256

01-42427-15

O

10

Screw for Cam

BOL0081

295 019

0.0138.134

O

11

Screw for End Cover

BOL0081

1 430 539

01-46794-09

X

12

Gasket for Cam (Washer)

GAK0009

291 027

01-46790-02

X

13

Snap Ring

SNP0008

261 411

0.0370.525



14

Snap Ring

SNP0014

282 924

0.0371.072

O

15

Snap Ring

SNP0005

282 925

0.0370.030

O

16

Mechanical Seal

MCSSET0003

282 923

0.2247.008

X

17

Oil Seal

RET0012

282 922

0.2234.006

X

18

Bearing

BER0011

282 926

0.3431.684

O
