Caterpillar 3408, 3412 Seawater Pump (Gilkes Style) 7C3613 Replacement JMP JPR-CT3412

Replacement raw water cooling pump for Caterpillar engines with Gilkes style pump. Used on Caterpillar engines: 3408, 3408B, 3408C, 3412, 3412C, 3412D

Replaces Caterpillar 7C3613 / 3N7790 / OR7720.

Replaces Gilkes M Series Pumps 250/700

For Gilkes Pump OR7721, see JMP JPR-CT3508.

Internal parts same as original. Excludes drive gear.

This is a JMP Marine pump JMP JPR- CT 3412.

This pump is order in and usually ships 4 weeks from order.

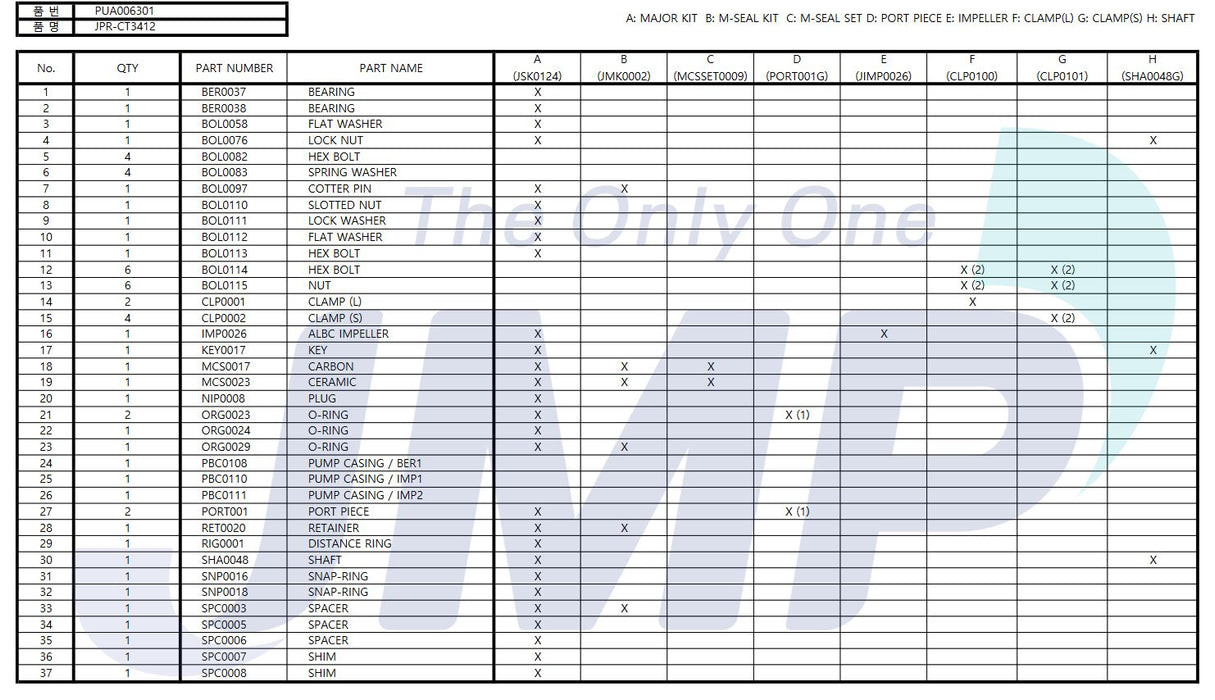

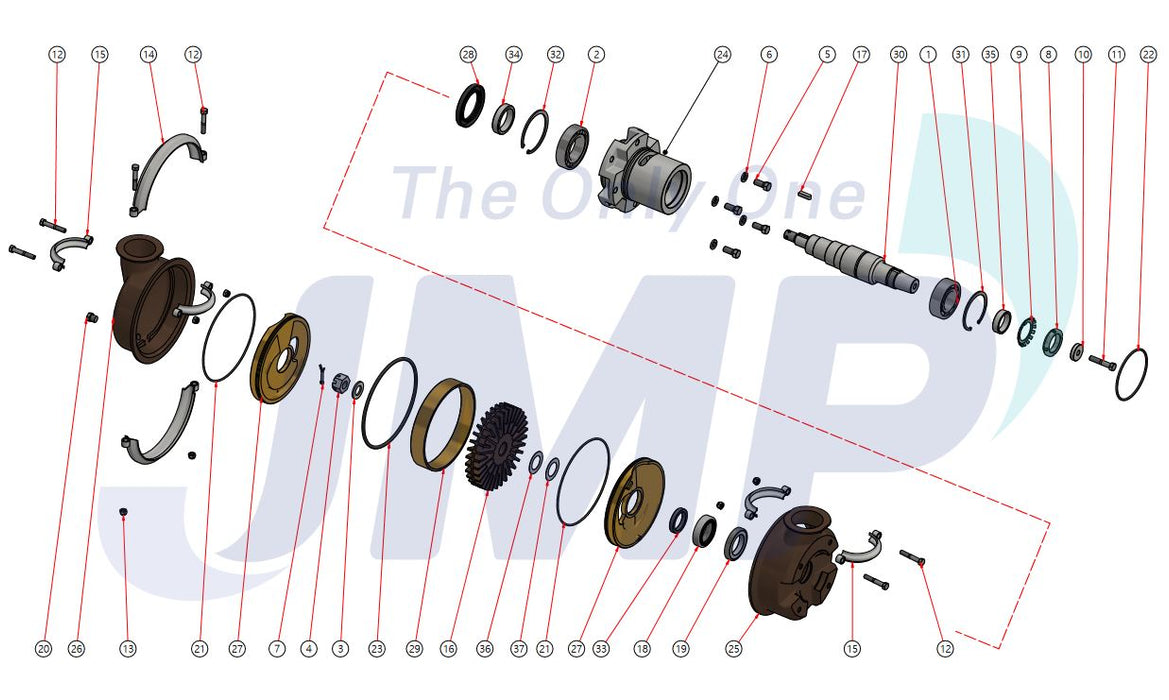

Pump Parts:

JMP CAT DESCRIPTION QTY REMARK
JPR-CT3412 7C3613 SEA WATER PUMP 1
BER0037 3N8463 BALL BEARING 1
BER0038 4M6107 BALL BEARING 1 4M6107+8T0209
BOL0097 4P9312 COTTER PIN 1
BOL0110 8B7614 SLOTTED NUT 1
CLP0100 3N8469 CLAMP ASSEMBLY(LARGE) 1
CLP0101 3N8468 CLAMP ASSEMBLY(SMALL) 2
IMP0026 3N8449 IMPELLER 1
KEY0017 1756716 KEY 1
MCSSET0009 5N6055 MECHANICAL SEAL SET 1
PORT001G 5N4504 PORT PLATE 2
ORG0023 N/A O-RING, PORT PLATE 2
ORG0024 N/A O-RING 1
ORG0029 3N8462 O-RING 1
RET0020 5N2902 OIL SEAL 1
RIG0001 3N8452 DISTANCE RING 1
SHA0048 7C3493 SHAFT 1
SNP0016 1075565 SNAP RING 1
SNP0018 IJ6472 SNAP RING 1
SPC0003 3N8442 SPACER 1
SPC0005 5N2904 SPACER 1
SPC0006 3N8445 SPACER 1
JMK0002 N/A SEAL KIT 1 INCLUDES No.4, 10, 14, 15, 20
JSK0124 N/A MAJOR KIT 1 ALL INTERNAL PARTS
