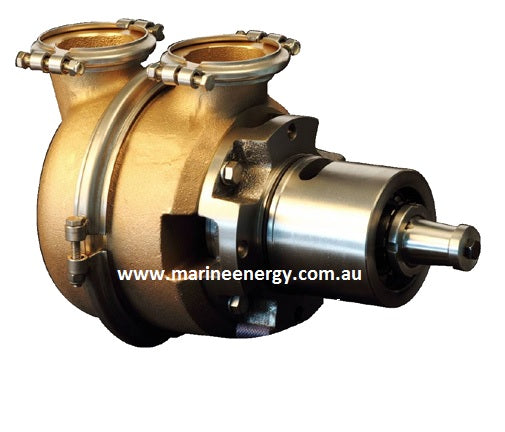

Caterpillar 3508 Seawater Pump (Gilkes Style) 7C3614 Replacement JMP JPR-CT3508

Replacement seawater cooling Pump for CATERPILLAR ENGINES:

 3508, 3508B, 3508C, 3512, 3512B, 3516B

Replaces Caterpillar pump 7C3614 / Gilkes pump OR7721 - M Series 250/700. For Gilkes pump OR7720 - see JMP CT-3412

Note: 5N2600 is replaced by 7C3614

Internal parts compatible to genuine. Drive gear not included.

This is a JMP Marine Pump JPR CT-3508. It usually ships 4 weeks from order.

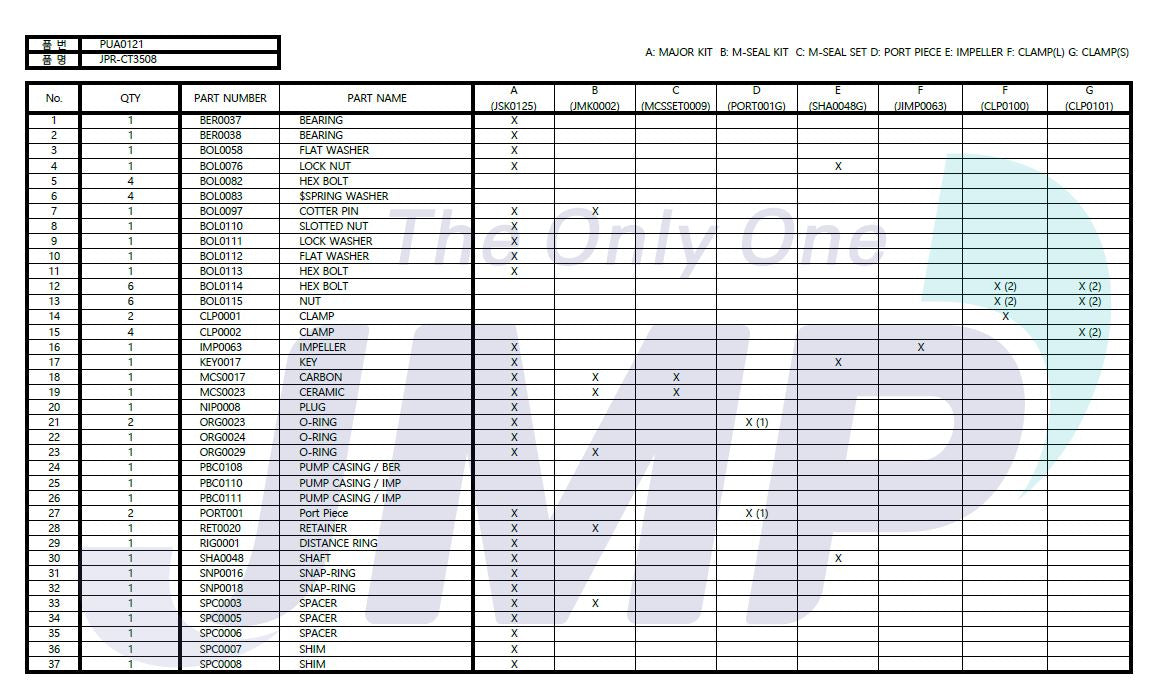

Pump Parts:
JMP CAT DESCRIPTION QTY REMARK
JPR-CT3508 7C3614 SEA WATER PUMP 1
BER0037 3N8463 BALL BEARING 1
BER0038 4M6107 BALL BEARING 1 4M6107+8T0209
BOL0097 4P9312 COTTER PIN 1
BOL0110 8B7614 SLOTTED NUT 1
CLP0100 3N8469 CLAMP ASSEMBLY(LARGE) 1
CLP0101 3N8468 CLAMP ASSEMBLY(SMALL) 2
IMP0063 5N2618 IMPELLER 1
KEY0017 1756716 KEY 1
MCSSET0009 5N6055 MECHANICAL SEAL SET 1
PORT001G 5N4504 PORT PLATE 2
ORG0023 N/A O-RING, PORT PLATE 2
ORG0024 N/A O-RING 1
ORG0029 3N8462 O-RING 1
RET0020 5N2902 OIL SEAL 1
RIG0001 3N8452 DISTANCE RING 1
SHA0048 7C3493 SHAFT 1
SNP0016 1075565 SNAP RING 1
SNP0018 IJ6472 SNAP RING 1
SPC0003 3N8442 SPACER 1
SPC0005 5N2904 SPACER 1
SPC0006 3N8445 SPACER 1
JMK0002 N/A SEAL KIT 1 INCLUDES No.4, 10, 14, 15, 20
JSK0125 N/A MAJOR KIT 1 ALL INTERNAL PARTS
