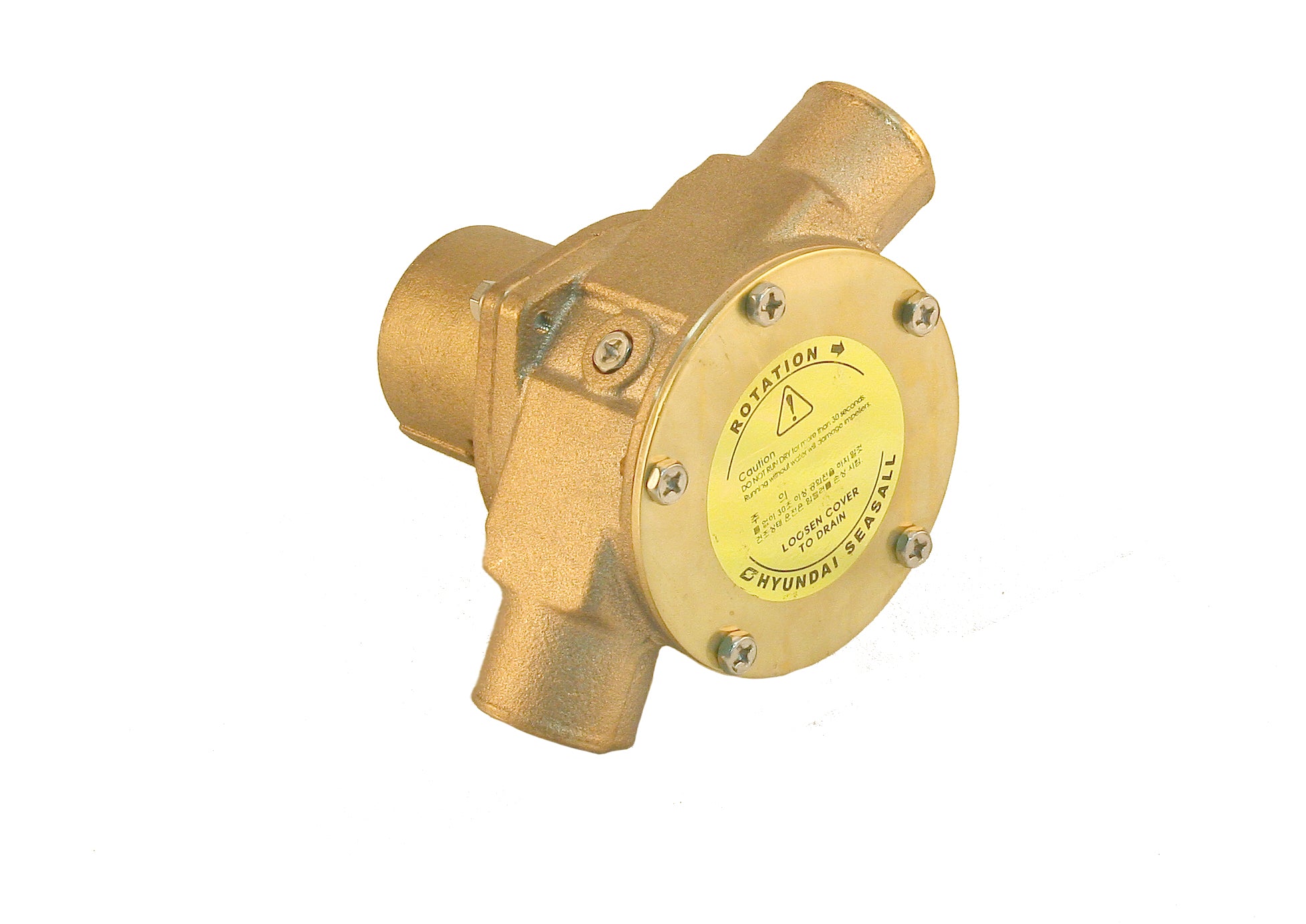

Hyundai Seasall D Series Seawater pump Replacement JPR-HDS170

Seawater pump for Hyundai Seasall D Series pumps.

This is a JMP Marine pump JMP JPR-HDS170

Dimensions:

Inlet Outlet Size (LxWxH) Weight Notes
1-1/4" 1-1/4" 144 x 176 x 165 4.3 kgs


Pump Parts:

JMP OEM Description Qty Notes
7526-01 Impeller 1
JSM0067 Minor Kit 1
JSK0062 Major Kit 1
BER0044 Bearing Drive 1
N/A Bearing Seal 1
BOL0080 Screw
CAMSET0004 Camset 1
COV0004 End Cover 1
ORG0014 Cover Gasket 1
N/A Key 1
MCSSET0014 Seal 1
N/A Retainer Drive 1
RET0021 Retainer Seal 1
SHA0065 Shaft 1
SLI0002 Slinger 1
SNP000301 Snap Ring Seal 1
SNP0010 Snap Ring Drive 1
WER0002 Wear Plate 1
1
