JMP JPR-D3200
by JMP
Original price
$0.00 AUD
-
Original price
$0.00 AUD
Original price
$0.00 AUD
-
$0.00 AUD
Current price

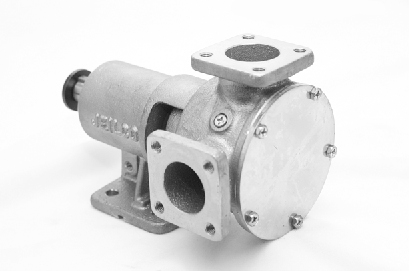

This is a non-OEM, aftermarket pump JMP JPR-D3200
Dimensions:
| Inlet | Outlet | Size (LxWxH) | Weight | Notes |
|---|---|---|---|---|
| 1-1/4" | 1-1/4" | 210 x 126 x 140 | 5.9 kgs |
Pump Parts:
| JMP | OEM | Description | Qty | Notes |
|---|---|---|---|---|
| 7500-01 | Impeller | 1 | ||
| JSM0036 | Minor Kit | 1 | ||
| JSK0036 | Major Kit | 1 | ||
| BER0003 | Bearing Drive | 1 | ||
| BER0003 | Bearing Seal | 1 | ||
| BOL0081 | Screw | |||
| CAMSET000401 | Camset | 1 | ||
| COV0015 | End Cover | 1 | ||
| ORG0014 | Cover Gasket | 1 | ||
| KEY0002 | Key | 1 | ||
| MCSSET0003 | Seal | 1 | ||
| RET0008 | Retainer Drive | 1 | ||
| RET0007 | Retainer Seal | 1 | ||
| SHA0034 | Shaft | 1 | ||
| SLI0003 | Slinger | 1 | ||
| SNP0008 | Snap Ring Seal | 1 | ||
| SNP0011 | Snap Ring Drive | 1 | ||
| WER0002 | Wear Plate | 1 | ||
| Clutch / Drive | 1 |
