Volvo Penta Spare Parts - Diesel - TMD41A/B/D/L-A, TAMD41A/B/D, D41A/B/D/L-A AD41A/B/D, AQD41A, AQAD41A
Volvo Penta TMD41B 150hp 6 Cylinder Diesel 1989-1993;
Volvo Penta TMD41D 150hp 6 Cylinder Diesel 1993-1994;
Volvo Penta TMD41L-A 150hp 6 Cylinder Diesel 1994-1997;
Volvo Penta TAMD41A 200hp 6 Cylinder Diesel 1986-1989;
Volvo Penta TAMD41B 145-200hp 6 Cylinder Diesel 1989-1993;
Volvo Penta TAMD41D 145hp 6 Cylinder Diesel 1993-1994;
Volvo Penta D41A 150hp 6 Cylinder Diesel 1988-1989;
Volvo Penta D41B 150hp 6 Cylinder Diesel 1989-1993;
Volvo Penta D41D 150hp 6 Cylinder Diesel 1993-1994;
Volvo Penta D41L-A 150hp 6 Cylinder Diesel 1994-1998;
Volvo Penta AD41A 200hp 6 Cylinder Diesel 1988-1989;
Volvo Penta AD41B 153-200hp 6 Cylinder Diesel 1989-1993;
Volvo Penta AD41D 200hp 6 Cylinder Diesel 1993-1994;
Volvo Penta AQD41A 150hp 6 Cylinder Diesel 1986-1989;
Volvo Penta AQAD41A 200hp 6 Cylinder Diesel 1986-1989
| Spare Part | Engines | Aftermarket Part No |
|---|---|---|
| FILTERS: | ||
| Oil Filter | REC 471034 | |
| Fuel Filter | REC 3840335 | |
| Air Filter |
Old Type 41 | REC 858488 |
| Air Filter | New Type 41, KAD 42WJ | REC 21646645 |
| Crankcase Filter | REC 876069 | |
| COOLING SYSTEMS: | ||
| Zinc Anode | TEC 00714 | |
| Impeller | AN 2039 | |
| Seawater Pump | AN 3361 | |
| Pump Drive Coupling | WA 858467 | |
| Heat Exchanger |
MEC 3586705 REC 860276 |
|
| Oil Cooler (3 Bolt MOTA) | AD41, AQAD41, TAMD41, KAD42, KAD43, KAD44, KAD300, KAMD42, KAMD43, KAMD44, KAMD300 | 861601 |
| Oil Cooler Insert (3 Bolt) | 3580869 | AMLP 3580869 |
| Thermostat (Old) 70° | REC 3831426 | |
| Thermostat (New) 81° | REC 3831424 | |
| BELTS & ELECTRICALS: | ||
| Belts (2 required) | L=1100MM 30, 31, 40, 41, 42, 70, 100,120 |
REC 966978 |
| Starter Motor |
12V 3581774 |
|
| Alternator |
AQ/AD/TAMD/ 30, 31, 40, 41- Long Body KAD 300, 32, 43, 44 - Short Body |
|
| Fuel Lift Pump | D30, D31, D32, D40, D41, D42, D43, D44, D300 | REC 3582310 |
| TURBO: | ||
| WA 861260 Turbo |
TMD41A, TMD41B, D41A, D41B, TAMD41A, TAMD41B, AQAD41A, AD41A, AD41B, 290A, DP-A, DP-B, DP-A1, DP-B1, SP-A, SP-A1, AD41BJ, AD41, AD41P-B, D41, TAMD41M-A |
WA 861260 |
| Turbo Gasket Set | REC 3582563 | |
| EXHAUST SYSTEM: | ||
|
Exhaust Elbow |
31 / 41 / 32 / 42 / 43 / 44 / KAD300-A / D5A-TA / D5A-B TA / D7A-T / D7A-TA / D7A-B TA / D7C-TA / D7C-B TA 31 and 41 Series New Type |
Old Style in Cast 316 Stainless New style in Cast 316 Stainless |
| Clamp, Exhaust Elbow | HDI VBC | |
| Exhaust Hose |
AQ31, All 41 All KAD42 |
|
| GASKETS: | ||
| De-carbonizing Gasket Set | REC 3583787 | |
| Cylinder Head Gasket | REC 3583786 | |
| Oil Cooler Gasket Kit | REC 22149 | |
| Oil Cooler Gasket Kit (minor, 4 bolt cap) | D22, D30, D31, D32, D40, D41, D42, D43 | REC 22152 |
| Cylinder Liner Kit | TMD31B, TAMD31B, AD31B, TMD41B, TAMD41B, D41B, AD41B, TMD31D, TAMD31D, AD31D-A, AD31XD, TMD41D, TAMD41D, AD41D, D41D | REC 22389354 |
| Heat Exchanger Gasket Kit | TMD 31L-A, 41L-A TAMD 31P-A, L-A, M-A 41P-A, L-A, M-A, H-A AD 31P-A, L-A, 41 P-A, L-A D 41 L-A | REC 22109 |
| Oil Pan Gasket Set | REC 861251 | |
| Aftercooler Gasket set | REC 22182 | |
| Exhaust Manifold Gasket | REC 876144 | |
| Con Gasket / Bottom Kit | REC 876774 | |
| Drive Kit Gasket Set | REC 19035 | |
| Water Pipe Gasket Set | TMD41A/B/D/L-A, TAMD41A/B/D | REC 22113 |
| Exhaust Gaskets | AD31L-A / AD31P-A / AD41L-A / AD41P-A / TAMD31L-A / TAMD31M-A / TAMD31P-A / TAMD31S-A / TAMD41H-A / TAMD41H-B / TAMD41P-A / MD22L / MD22P / MD22L-B /MD22P-B / TAMD22P-C / TAMD22P-B / HS25A / HS25A-B /120S-E / MS2L-E / MS2B-L / TAMD22B | HDI G-AD |
| Intake Valve | REC 838637 | |
| Exhaust Valve | REC 838638 | |
| Valve Cover Gasket | Volvo Penta 41, KAD/KAMD 42A | REC 838653 |
| Valve Stem Seal |
REC 1306630 REC 859171 |
|
| Universal Joint | REC 3860232 | |
| Ring Set | REC 275350 | |
| Forward Sealing Ring | REC 1542318 | |
| Rear Sealing Ring | REC 860971 | |
| ENGINE PARTS: | ||
| Piston Ring Set | REC 3817033 | |
| Seal ring | REC 851407 | |
| Tilt Bushing (2 Units) | REC 876279 | |
| Tilt Bushing (2 Units) | REC 872096 | |
| Nozzle Sleeve Kit | REC 861255 | |
| Circulating Pump Repair Kit | D41L-A, TAMD41H-A, TAMD41H-B, TAMD41L-A, TAMD41M-A, TAMD41P-A, TMD41L-A TAMD42WJ-A, KAD42P-A, KAMD42P-A, KAD43P-A, KAMD43P-A, KAD44P-A, KAD44P-B, KAD44P-C, KAMD44P-A, KAMD44P-B, KAMD44P-C |
REC 876794 |
| Engine Mounts | 858161/ 846765 | AN 5131 |
Volvo Penta Oil Filter 471034 Replacement
$24.20 AUD $26.00 AUD
Volvo Penta Oil Filter 471034 ReplacementOil Filter suits Volvo Penta marine engines 40, 41, 42, 70.Replaces Volvo Penta 471034.This is a non-OEM, aftermarket part REC 471034.
Volvo Penta 40, 41, 42, 43, 44, 300 Fuel Filter 21624740 Replacement
$25.30 AUD
Replaces Volvo Penta 21624740, 243464, 3588378, 3840335, 838593, 860008, 860874. This filter does not have the drain as previously supplied by Volvo Penta. 21624740 (without drain) replaces those earlier filters....
Volvo Penta Crankcase Breather Filter 876069, 875850 Replacement Part
$44.00 AUD
Replacement Crankcase Filter Element suits Volvo Penta marine engines: TAMD 30,31, 32, 40,41,43,43,44, 100 KAD300, TAMD61A, 62A, 63, TAMD71A, 72A, 73, 74, TAMD 120, TAMD122. AQAD 30,31,40,41. D-12 Replaces Volvo Penta...
Volvo Penta Air Filter 3582358 Element Volvo 21646645 Replacement
$55.00 AUD
Volvo Penta Air Filter Element Volvo 21646645 ReplacementAir Filter Element Volvo suits Volvo Penta 31, 41 & 42WJ, D-3.Replaces Volvo Penta 21646645, 3582358. Height: 8.4 cmInner Diameter: 9.1cmDiameter: 15.3cmThis is...
Volvo Penta Belt 966978 Replacement Volvo Penta AQAD 30, 31, TAMD 40, 41, 42, 70, 100,120
$20.90 AUD $45.00 AUD
Volvo Penta Belt 966978 Replacement / old P/N 958359Belt suits Volvo Penta Diesel 30, 31, 40, 41, 42, 70, 100,120 Replaces Volvo Penta 966978. Qty 2 Required per engine. add 2...

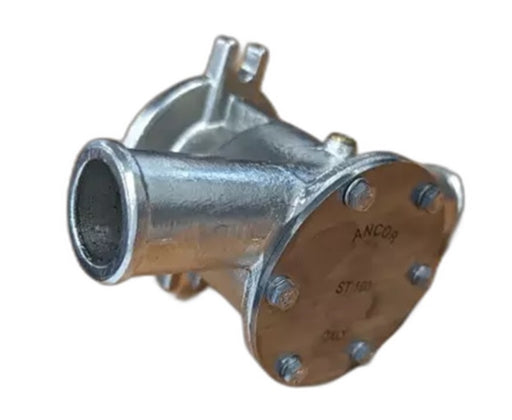

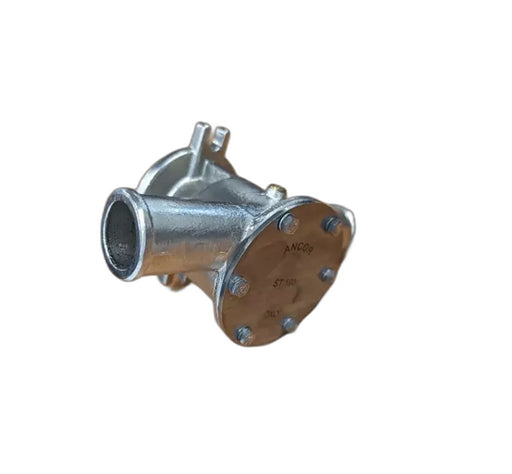

Ancor 3361 Replaces Volvo Penta 3583095,3583115, 3581558, 860629, Johnson F7B-9, 10-242771-1
$797.50 AUD
ANCOR Pump Model ST 160 - AN 3361 ANCOR, of Italy - Replacement sea water cooling pump for Volvo Penta 842843, 3583115 & 3583095 , (Pump 3583115 replaced pump 3581558...
Ancor $44.00 AUD: Incl GST

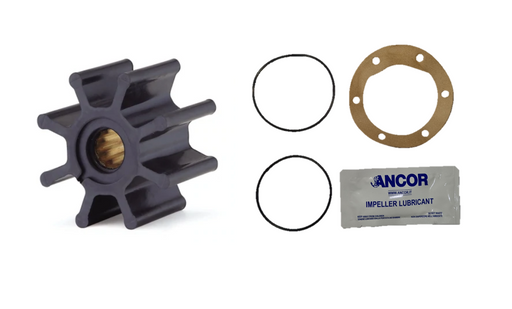

AN 2039 Replaces Johnson 09-1028 B / Jabsco 920-0001,Volvo Penta 21951356
$44.00 AUD
Impeller Johnson 09-1028B, Jabsco 920-0001, Volvo Penta 21951356 replacement by Ancor of Italy. Impeller Specifications (A) 65 x (B) 50.8 x (D) 16 mm Number of Blades – 8 Shaft...

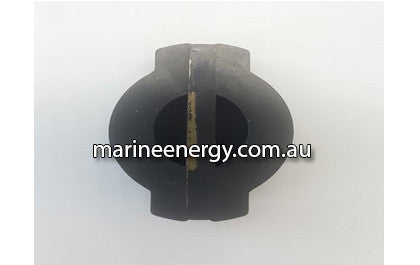

Dog Cross Piece Companion Flange Replaces Volvo Penta 858467
$19.80 AUD
Volvo Penta 858467 Cross Piece Pump Drive, Replacement. Companion flange for raw water pump on Volvo Penta D31, D32, D41, D42, D43, D44, D300 This is an aftermarket, non OEM (Original Equipment...
Volvo Penta 838929 Zinc Anode Replacement suits most Volvo Penta engines
$6.00 AUD
Volvo Penta 838929 Zinc Anode Replacement Newer style anode: Male & Female (Hollow) end anode. Anode only. For the plug, order WA 838928. Suits Diesel Engines 2001, 2002, 2003, 2003T;...
Volvo Penta Thermostat Kit 3831426 Replacement
$39.60 AUD
Volvo Penta Thermostat Kit 3831426 Replacement MD40A, TMD40A, TMD40B, TMD40C, AQD40A, TAMD40A, TAMD40B, AD40B, AQAD40A, AQAD40B Petrol engines: 4.3GXi 4.3GXi-B, 4.3GXi-BF (freshwater cooled engines) 5.0GXi-A, 5.7Gi-A, 5.7GXi-B, 5.7GiI-A, 5.7GXiI-B , 5.7GXi-A, 5.7GSiI-A,...
Volvo Penta Volvo Thermostat Kit 3831424 Replacement
$42.90 AUD
Volvo Penta Volvo Thermostat Kit 3831424 ReplacementVolvo Thermostat Kit suits Volvo Penta Diesel Engine 31, 41, 32, 42, 43, 44, 300, 100, 102, 103, 120, 121, 122Replaces Volvo Penta 3831424.This is...
Volvo Penta D40, D41, D42, D43, D44, D300 Circulation (Coolant) Pump Repair Kit 876794, 876544
$357.50 AUD
Volvo Penta Circulating Pump Repair Kit 876794, 876544 Genuine VP PartRepair kit, Circulating Pump Volvo Penta D40, D41, D42, D43, D44, D300, NOTE- at the time of reinstallation of repaired...

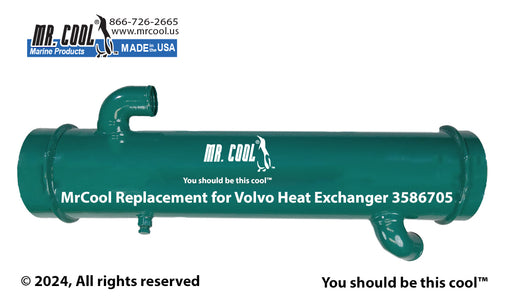

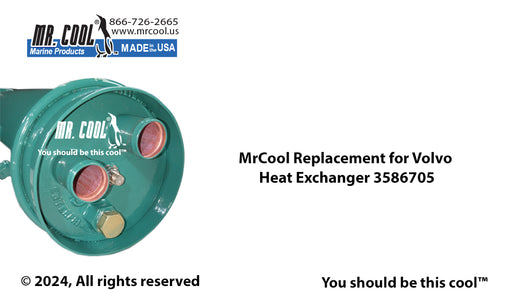

VOLVO PENTA HEAT EXCHANGER 3586705 REPLACEMENT
$3,303.30 AUD
Heat Exchanger to replace Volvo Penta 3586705, 861082. This heat exchanger has the 1" water connections 861308. These end caps 861308 are available separately here. Heat exchanger 3586706 / 3580866...
Yanmar 119773-13300 and Volvo Penta 842993 , 21325765 SS Exhaust Clamp Replacement HDI VBC
$88.00 AUD
Stainless Steel Exhaust Clamp suits Yanmar 119773-13300 and Volvo Penta 842993, 21325765 DIMENSIONS: V 4 inches Fits HDI Exhausts VB / VBP / HOT1 / HOT2 / HOT 4 / VG1...

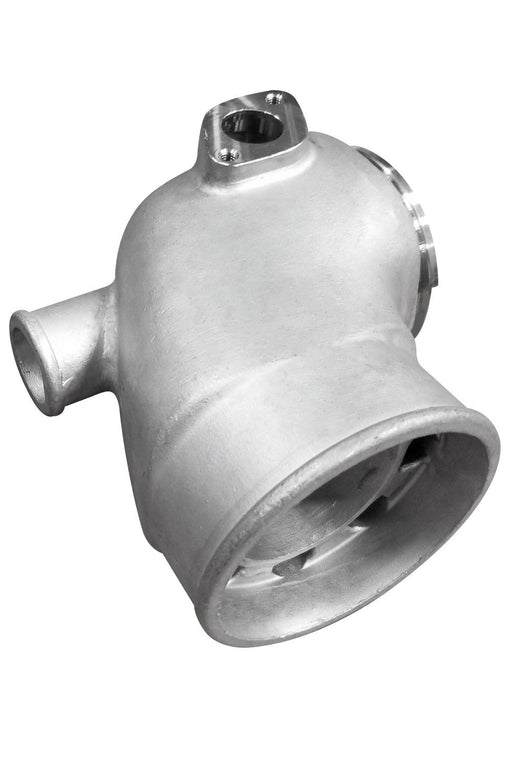

Volvo Penta Exhaust Elbow 861289 CAST 316 Replacement HDI VG1
$792.00 AUD
CAST 316 Stainless Steel elbow by HDI Marine. Suits Volvo Penta marine engines: 31, 41, 42, 43 (see list below) Replaces Volvo Penta 861289 (replacing older 860656 with 32mm pipe)....

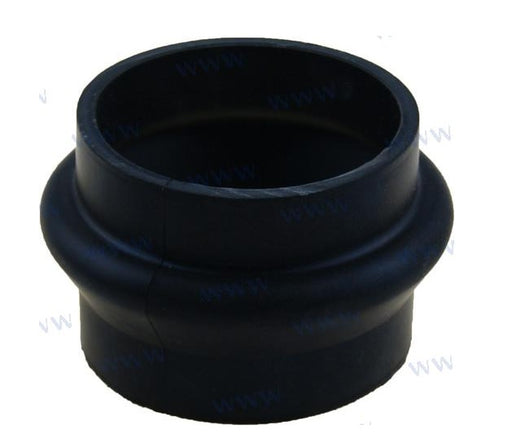

Volvo Penta 31, 41 Exhaust Hose 858955 (87mm ID) Replacement
$37.40 AUD
Exhaust Hose - Elbow to Outlet Pipe - suits Volvo Penta AQ31** and AQ41** Series engines. ** Note there is an option on 31B and 41B series engines: 1. Hose...
Volvo Penta 31, 41, 42 Exhaust Hose 860396 Replacement 500531
$38.50 AUD
Exhaust Hose for exhaust elbow to outlet pipe. ID 100mm. Suits 31, 41 & 42 Series Volvo Penta engines. This is a non-OEM, aftermarket part REC 500531.

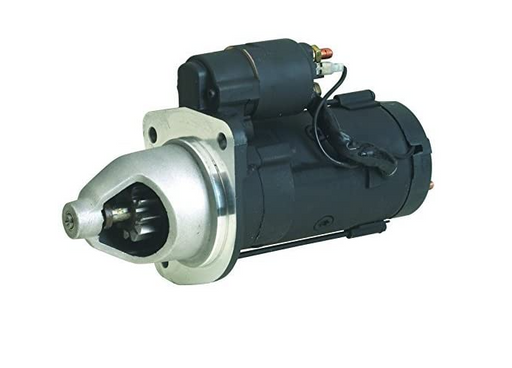

Volvo Penta 30, 31, 40, 41, 42, 300 Starter Motor 3581774 Replacement
$660.00 AUD
Aftermarket Starter Motor to suit Volvo Penta marine engines. Replaces Volvo Penta 3581774, 3803118, 3803200, 3803386, 859252, Suits Volvo Penta AQ/AD 30, 31, 40, 41, Suits Volvo Penta TAMD 30,...

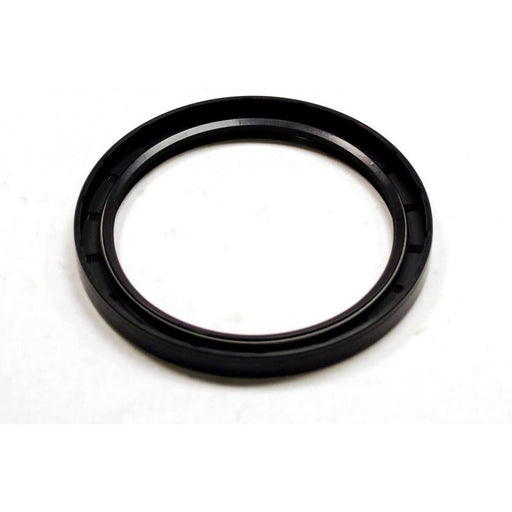

Volvo Penta 3582851 Rear Oil Seal Replacement REC 860971
$38.50 AUD
Volvo Penta Rear Sealing Ring 860971, 3582851 ReplacementRear Crankshaft Oil Seal suits Volvo Penta 30, 31, 32, 40, 41, 42, 44Replaces Volvo Penta 3582851, 860971.This is a non-OEM, aftermarket part...
Volvo Penta Oil Cooler Gasket Kit 22149 Replacement
$77.00 AUD
Volvo Penta Oil Cooler Gasket Kit 22149 ReplacementOil Cooler Gasket Kit suits Volvo Penta MD 30, 31, 32, 40, 41, 42, 43, 44, 300Replaces Volvo Penta Following Parts 2 x 859086...
Volvo Penta 31, 32, 41, 42 Turbo (861260) Gasket Kit 3582563 Set Replacement REC 3582563
$103.40 AUD
Volvo Penta 3582563 Turbo Gasket Kit ReplacementTurbo Connection Gasket Set suits Volvo Penta Turbo 861260 on marine diesel engines D31, D32, D41, D42, D43, D44, D300 AD31A, AD31B, AD31D, AD31L-A,...
Volvo Penta Seal ring 851407 Replacement for Lower shaft oil seal 280 & 290 sterndrive
$18.70 AUD
Volvo Penta Seal Ring 851407 ReplacementDuo prop Seal ring suits Volvo Penta MD 30, 31, 41, 42, AQ 271, 280 / 290, 225 / 231, 500 / 501, 570 / 572, 740, 275,...
Volvo Penta 877386 Aftercooler Gasket Set Replacement-41/31/43 - REC 22182
$71.50 AUD
Volvo Penta 877386 After Cooler Gasket Set Replacement Suits Volvo Penta After Cooler / Charge Air Cooler for Volvo Penta D31, D32, D41, D42, D43, D44. This is a non-OEM,...
Volvo Penta 31, 41, 42, 43, 44, 300 Heat Exchanger Gasket Kit 22109 Replacement
$55.00 AUD
Volvo Penta Heat Exchanger Gasket Kit 22109 Replacement Heat Exchanger Gasket Kit Suitable for Volvo Penta marine engines: AD31D, AD31L-A, AD31P-A, AD31XD, TAMD31D, TAMD31L-A, TAMD31M-A,TAMD31P-A, TMD31D, TMD31L-A,KAD32P-AAD41D, AD41L-A, AD41P-A,D41D, D41L-A,...
Volvo Penta Intake Valve 838637 Replacement
$35.20 AUD
Volvo Penta Intake Valve 838637 ReplacementIntake Valve suits Volvo Penta MD31, 41, 42, 43.Replaces Volvo Penta 838637.39mmThis is a non-OEM, aftermarket part REC 838637.
Volvo Penta Oil Pan Gsk 861251 Replacement
$92.40 AUD
Volvo Penta Oil Pan 861251 ReplacementOil Pan Gasket suits Volvo Penta models 40, 41, KAD/KAMD 42A.Replaces Volvo Penta 861251.Sump gasket.This is a non-OEM, aftermarket part REC 861251.
Volvo Penta DP Lower Unit Gasket Set 876267 Replacement
$110.00 AUD
Volvo Penta DP Lower Unit Gasket Set 876267 Replacement Lower Unit Gasket Set suits Volvo Penta Drives 280DP, 290DP, DP-A, DPA1, DP-A2, DP-B, DP-C, DP-D, DP-E, DPX-S. S1 Diesel engines...
Volvo Penta Oil Cooler Gasket Kit 22152 Replacement
$22.00 AUD $26.00 AUD
Oil Cooler Gasket Kit for older style 861601 with 4 Bolt. Suits for Volvo Penta D22, D30, D31, D32, D40, D41, D42, D43 Kit Contents: 1 x 842597 (gasket for...
Volvo Penta Water Pipe Gasket Set 22113 Replacement
$39.60 AUD
Volvo Penta Water Pipe Gasket Set 22113 ReplacementWater Pipe Gasket Set suits Volvo Penta marine engines D31, D32, D41, D42, D43, D44This is a non-OEM, aftermarket part REC 22113.
Volvo Penta Cylinder Head Gasket 3583786 Replacement
$261.80 AUD
Volvo Penta Cylinder Head Gasket 3583786 ReplacementCylinder Head Gasket suits Volvo Penta D 31, 32, 41, 42, 43, 44, 300Replaces Volvo Penta 3583786.This is a non-OEM, aftermarket part REC 3583786.
Volvo Penta 41, 42, 43 Top Kit (De-carbonizing) Gasket Set 3583787 Replacement
$594.00 AUD
De-carbonizing Gasket Set suits Volvo Penta marine engines D41, D42, D43: AD41A, AD41B, AD41D, AD41L-A, AD41P-A, AQAD41A, AQD41AD41A, D41B,, D41D, D41L-ATAMD41A, TAMD41B, TAMD41D, TAMD41H-A, TAMD41L-ATAMD41MA, TAMD41P-A, TMD41A, TMD41B, TMD41D, TMD41L-AKAD42A, KAD42B,...
Volvo Penta Nozzle Sleeve Kit 861255 Replacement
$35.20 AUD
Volvo Penta Nozzle Sleeve Kit 861255 ReplacementNozzle Sleeve Kit suits Volvo Penta All 31, 32, 41, 42, 43, 44Replaces Volvo Penta 861255.This is a non-OEM, aftermarket part REC 861255.
Volvo Penta Exhaust Valve 838638 Replacement
$71.50 AUD
Volvo Penta Exhaust Valve 838638 ReplacementExhaust Valve suits Volvo Penta MD31, 41, 42, 43.Replaces Volvo Penta 838638.This is a non-OEM, aftermarket part REC 838638.
Volvo Penta Cylinder Liner Kit 22389354 Replacement
$1,100.00 AUD $1,120.00 AUD
Volvo Penta Cylinder Liner Kit 22389354 Replacement Cylinder Liner Kit (with pistons & rings). Suitable for Volvo Penta TMD31B, TAMD31B, AD31B, TMD41B, TAMD41B, D41B, AD41B, TMD31D, TAMD31D, AD31D-A, AD31XD, TMD41D,...
Volvo Penta 838653 Valve Cover Gasket Replacement
$99.00 AUD
Volvo Penta 838653 Valve Cover Gasket ReplacementValve Cover to Cylinder Head Gasket suits Volvo Penta 41, KAD/KAMD 42A This is a non-OEM, aftermarket part REC 838653 .
Volvo Penta Bottom Gasket Kit 876774 Replacement
$495.00 AUD
Conversion Gasket Set Replaces Volvo Penta 876774, 876362 Conversion Gasket Kit suits Volvo Penta D41, D42, D43, D44, D300AD41A, AD41B, AD41D, AD41L-A, AD41P-A, AQAD41A, D41A, D41B,D41D, D41L-ATAMD41A, TAMD41B, TAMD41D, TAMD41H-A, TAMD41L-ATAMD41M-A, TAMD41P-A,...
Volvo Penta Exhaust Manifold Gasket 876144 Replacement
$17.60 AUD
Volvo Penta Exhaust Manifold Gasket 876144 ReplacementExhaust Manifold Gasket suits Volvo Penta MD 31, 32, 41, 42, 43, 44, 300Replaces Volvo Penta 876144. 31: quantity 4 required 41: quantity 6 required...
Volvo Penta 31-43 Piston Ring Set 3817033 (Aftermarket)
$93.50 AUD
Piston Ring Set replaces Volvo penta 3817033. Standard size to suit Volvo Penta marine engines: D31, D32, D41, D42, D43AD31L-A, AD31P-A,TAMD31L-A, TAMD31M-A, TAMD31P-A, TMD31L-AKAD32P-A,AD41L-A, AD41P-A, D41L-A,TMD41L-A, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41L-A,...
Volvo Penta Piston Ring Set 275350 Replacement
$88.00 AUD
Volvo Penta Piston Ring Set 275350 ReplacementPiston Ring Set suits Volvo Penta 30 A&B,40 A&B ,31 A & B , 41.A & B Series EnginesReplaces Volvo Penta 275350.This is a non-OEM, aftermarket...
Volvo Penta Valve Stem Seal 859171, 21501189 Replacement
$3.30 AUD
Volvo Penta Valve Stem Seal 859171, 21501189 ReplacementValve Stem Seal suits Volvo Penta 31, 32, 41, 42, 43, 63, 74, 75, D9, D12.Replaces Volvo Penta 21501189.This is a non-OEM, aftermarket...
Volvo Penta Valve Stem Seal 1306630 / 859171 Replacement
$4.95 AUD
Volvo Penta Valve Stem Seal 1306630 ReplacementValve Stem Seal suits Volvo Penta AQ 115, 120B, 125, 130, 131, 140, 145, 151, 230A, 250A, MD 1B, 2B, 3B, 5, 7, 11C,D,...
Volvo Penta 838929 Aluminium Anode Replacement suits most Volvo engines
$6.00 AUD
Volvo Penta 838929 Aluminium Anode Replacement Newer style anode: Male & Female (Hollow) end anode. Anode only. For the plug, order WA 838928. Suits Diesel Engines 2001, 2002, 2003, 2003T;...
Volvo Penta Oil Cooler Insert 3580869 (for 3 bolt cooler 861601 861757)
$1,094.50 AUD
Aftermarket insert to suit the Volvo Penta oil cooler 861601 ( with newer MOTA style 3 bolt end caps) & Oil Cooler 861757 (43, 44 & KAD300) Replaces Volvo penta...
Engine Mount 183x75 Replaces Volvo Penta 858161 846765 (AN 5131)
$99.00 AUD
Engine mount with protective shield to prevent corrosion or damage to the rubber. Similar to: Volvo Penta 858161 and 846765 (rubber) for Volvo Penta 31, 41, 300 series engines. Cummins 4/6...
Stud Assembley for Engine Mounting 5131
$26.40 AUD
16 mm Stud Assembly suits ANCOR Engine Mount 5131 Assembly includes stud / lock nut / adjuster nuts / washers.
