Volvo Penta Aftermarket Parts - KAD42A, KAD42B, KAMD42A, KAMD42B, KAMD42P-A

Aftermarket / non-genuine parts to suit Volvo Penta KAD42 marine engines:

KAD42A (1991-1993), KAD42B (1993-2001). Duoprop sterndrive legs.

KAMD42A (1991-1993), KAMD42B (1993-1994), KAMD42P-A (1994-1997). Shaft drive.

These 230hp 6 Cylinder, 3.6L Kompressor Diesels need approx 11 Litres of engine oil, 0.1 Litres compressor oil, and 19 litres of coolant.

Sterndrive Parts are Listed Separately Here.

Stocked and shipped from the Gold Coast, Australia.

Spare Part Engines / Notes Aftermarket Part
OIL: VDS 4.5 Approx 11L 23068343 15W-40 OILS PAGE
FILTERS:
Oil Filter
 423135 LF 4017
Fuel Filter - Engine 21624740 REC 3840335
Fuel Filter - Primary Varies by Installation - Commonly Racor RACOR 2010TM
Air Filter 876185 REC 876185
Transmission Filter ZF / HURTH 3582069 463772
Transmission Filter Spin On Type REC 834337
ELECTRICAL & BELTS:
Fuel Pump Feed Pump REC 3582310
Starter Motor 3581774 (12V) REC 3581774
Alternator 60A 873771
 IBC 873770
Pulley, Alternator Single 841813
Belt, Single Pulley 977542 REC 977542
COOLING SYSTEM:
Coolant pump Assy 23059414/ 3809412 REC 23059414
Coolant Pump Kit 876794 REC 876794
Thermostat 3831424 x 2 REC 3831424

Anodes



838929 (zinc)

838928 (plug)

REC 838929

WA 838928
Impeller (seawater) 21422647
 ANCOR 2039 / JMP 7400
Seawater Pump

3583155

AN 3361 OR

JMP V1000
Pump Drive Coupling 858467 WA 858467
Heat Exchanger
 3586705
MEC 3586705
Aftercooler Insert 3582598 AFM 3582599
Oil Cooler (3 Bolt) Newer MOTA Style - 3 Bolt Cover Volvo 861601
Insert, Oil Cooler 3580869 AMLP 3580869
Oil Cooler Housing (4 bolt Old style) Older 4 Bolt Cap MES 861600
Cooler (Fuel / Steering) 858541 MEC 2170298
EXHAUST COMPONENTS:
Turbo 1993 + 861260 BW 53269886497
Turbo Up to 1993 860352 BW 53269886496
Turbo Gasket Kit REC 3582563
Exhaust Mixing Elbow 861289 (replacing older version 860656) HDI VG1 IN CAST 316
Exhaust Mixing Elbow 860656 (older version, 32mm pipe and dual outlet) HDI VG2 IN CAST 316
Exhaust Clamp 842993 (4") HDI VBC
Sealing Ring Elbow to Pipe REC 842913
Exhaust Hose ID 100mm (newer 861289 elbow) CEF500531
Exhaust Hose  ID 87mmmm (older 860656 elbow) CEF500530
GASKET KITS:
Top Set / De-carbonizing Gasket Set 3583787, 876104, 876530 REC 3583787
Bottom Set / Conversion Gasket Set 876774, 876362, 876106, 876531 REC 876774
Cylinder Head Gasket 3583786, 3582433, 3580742 REC 3583786
Oil Pan Gasket  861251, 860685, 1542247 REC 861251
Oil Cooler Gasket Kit View old and new style coolers for links to gaskets
Exhaust Manifold Gasket 6 Pieces Needed REC 876144
Heat Exchanger Gasket Kit  REC 22109
Aftercooler Gasket kit REC 22182
Valve Cover Gaskets Valve Cover Tops x 3 REC 838654
Valve Cover Gasket Head to Valve Cover REC 838653
ENGINE PARTS:
Engine Mounts ANCOR 5131
Engine Mounts some intalls 843323 REC 843323
Front Oil Seal REC 1542318
Rear Oil Seal REC 860971
Intake Valve Inlet 39mm REC 838637
Exhaust Valve Exhaust 37mm REC 838638
Valve Stem Seal REC 859171
Piston Ring Set
REC 3817033
Nozzle Sleeve Kit REC 861255



Filters

$
$
$48.00 AUD - $48.00 AUD
$48.00 AUD
$48.00 AUD - $48.00 AUD
$48.00 AUD

Penrite 15W-40 Convoy DHD Premium Mineral Engine Oil 5 Litres

Penrite

Penrite 15W-40 Convoy DHD Premium Mineral Engine Oil 5 Litres Base Oil: Mineral Viscosity: SAE 15W-40 (for diesel engines) Key Specifications: API ...

View full details
$48.00 AUD - $48.00 AUD
$48.00 AUD
$48.00 AUD - $48.00 AUD
$48.00 AUD
$29.70 AUD - $29.70 AUD
$29.70 AUD
$29.70 AUD - $29.70 AUD
$29.70 AUD

Volvo Penta Oil Filter 423135, 4785974 Replacement LF4017

Recmar

Volvo Penta Oil Filter 423135, 4785974 Replacement LF4017 Oil filter replaces:Yanmar: 127695-35150, 127695-35160;Mercruiser: 19485, 35-19485;Volvo:...

View full details
$29.70 AUD - $29.70 AUD
$29.70 AUD
$29.70 AUD - $29.70 AUD
$29.70 AUD
$25.30 AUD - $25.30 AUD
$25.30 AUD
$25.30 AUD - $25.30 AUD
$25.30 AUD

Volvo Penta 40, 41, 42, 43, 44, 300 Fuel Filter 21624740 Replacement

Recmar

Replaces Volvo Penta 21624740, 243464, 3588378, 3840335, 838593, 860008, 860874. This filter does not have the drain as previously supplied by Volv...

View full details
$25.30 AUD - $25.30 AUD
$25.30 AUD
$25.30 AUD - $25.30 AUD
$25.30 AUD
$24.00 AUD - $24.00 AUD
$24.00 AUD
$24.00 AUD - $24.00 AUD
$24.00 AUD

RACOR 2010 TM (10 Micron) Fuel Filter Element

Racor Parker

Original Racor element for 500 Series Racor filter assemblies. 10 micron filtration. Volvo Penta fuel filter 861014 / 828897. Also available in 2 m...

View full details
$24.00 AUD - $24.00 AUD
$24.00 AUD
$24.00 AUD - $24.00 AUD
$24.00 AUD
$32.00 AUD - $32.00 AUD
$32.00 AUD
$32.00 AUD - $32.00 AUD
$32.00 AUD

Volvo Penta 876185 Air Filter Replacement

Recmar

Volvo Penta 876185, 463505 Air Filter Replacement Suis Volvo Penta Marine engines: MD30A/B/D, AQ, TAMD30A/B/D AQ, TMD30A/B/D MD40A, TMD40A/B/C, TAM...

View full details
$32.00 AUD - $32.00 AUD
$32.00 AUD
$32.00 AUD - $32.00 AUD
$32.00 AUD
$77.00 AUD - $77.00 AUD
$77.00 AUD
$77.00 AUD - $77.00 AUD
$77.00 AUD

Transmission Oil Filter 463772 for Hurth and ZF 3312199031

Marine Energy Systems

Aftermarket Gear Oil filter suits marine gearboxes: HSW450 HSW630 HSW800 HSW850, ZF ZF45 ZF63 ZF80 ZF85/ ZF 3312199031 Replaces Mercruiser 35-8154...

View full details
$77.00 AUD - $77.00 AUD
$77.00 AUD
$77.00 AUD - $77.00 AUD
$77.00 AUD
$19.80 AUD - $19.80 AUD
$19.80 AUD
$19.80 AUD - $19.80 AUD
$19.80 AUD

Oil Filter, Reverse Gearbox 834337 Replacement Part

Recmar

Oil Filter used on the gearbox. Replaces Volvo Penta : 22057107, 834337, 897321.1This is a non-OEM, aftermarket part REC 834337.

$19.80 AUD - $19.80 AUD
$19.80 AUD
$19.80 AUD - $19.80 AUD
$19.80 AUD
$725.40 AUD - $725.40 AUD
$725.40 AUD
$725.40 AUD - $725.40 AUD
$725.40 AUD

Volvo Penta Exhaust Mixing Elbow 861289 (single water inlet) CAST 316 Replacement VG1

HDI Marine

Upgrade your exhaust elbow to Cast 316 Stainless Steel by HDI. Suits Volvo Penta marine engines: 31, 41, 42, 43 (see list below) Replaces Volvo Pen...

View full details
$725.40 AUD - $725.40 AUD
$725.40 AUD
$725.40 AUD - $725.40 AUD
$725.40 AUD
$836.00 AUD - $836.00 AUD
$836.00 AUD
$836.00 AUD - $836.00 AUD
$836.00 AUD

Volvo Penta Exhaust Elbow 859963 31 & 41 Series (dual water inlet) Cast 316 Replacement VG2

HDI Marine

VOLVO PENTA 31 & 41 Series Cast 316 Exhaust Elbow Replaces 859963 / 860656 Upgrade your exhaust elbow to Cast 316 Stainless Steel. Precision C...

View full details
$836.00 AUD - $836.00 AUD
$836.00 AUD
$836.00 AUD - $836.00 AUD
$836.00 AUD
$50.00 AUD - $50.00 AUD
$50.00 AUD
$50.00 AUD - $50.00 AUD
$50.00 AUD

Exhaust Clamp 4" (119773-13300 / 842993) 316 Stainless HDI VBC

HDI Marine

Stainless Steel Exhaust Clamp suits Yanmar 119773-13300 and Volvo Penta 842993, 21325765 DIMENSIONS: V 4 inches Fits HDI Exhausts VB / VBP / HOT1 /...

View full details
$50.00 AUD - $50.00 AUD
$50.00 AUD
$50.00 AUD - $50.00 AUD
$50.00 AUD
$71.40 AUD - $71.40 AUD
$71.40 AUD
$71.40 AUD - $71.40 AUD
$71.40 AUD

Volvo Penta Hose connection 858659 Replacement HDI VGP

HDI Marine

Volvo Penta 858659 & Seal 859002 Replacement Part Suits Volvo Penta exhaust pipe elbow 859963 (HDI VG2). Includes sealing ring 842913 and Bolts...

View full details
$71.40 AUD - $71.40 AUD
$71.40 AUD
$71.40 AUD - $71.40 AUD
$71.40 AUD
$40.20 AUD - $40.20 AUD
$40.20 AUD
$40.20 AUD - $40.20 AUD
$40.20 AUD

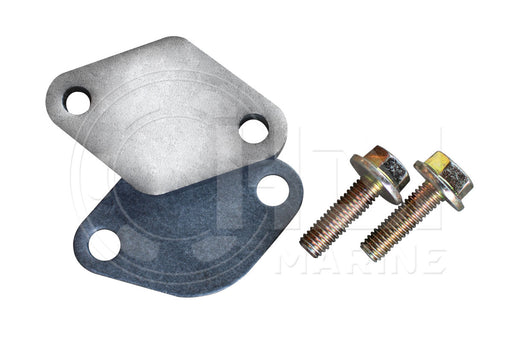

Volvo Penta 844093 Blanking Plate for Elbows 861289 & 859963 HDI VGC

HDI Marine

Blanking plate for exhaust mixing elbows 816289 (VG1) and 859963 (VG2). This is a HDI Marine part VGC.

$40.20 AUD - $40.20 AUD
$40.20 AUD
$40.20 AUD - $40.20 AUD
$40.20 AUD
$3.30 AUD - $3.30 AUD
$3.30 AUD
$3.30 AUD - $3.30 AUD
$3.30 AUD

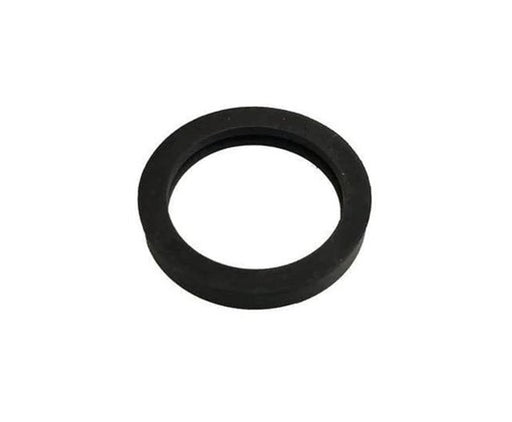

Volvo Penta 842913 Sealing Ring Replacement
