Engine mount with protective shield to prevent corrosion or damage to the rubber.
Similar to:
Volvo Penta 858161 and 846765 (rubber) for Volvo Penta 31, 41, 300 series engines.
Cummins 4/6 BT/A, QSB 5.9,
Caterpillar 3116,
Yanmar 4LHA & 6LP
This is an Ancor (Italy) marine product AN 5131.
------------------------------------------------------------

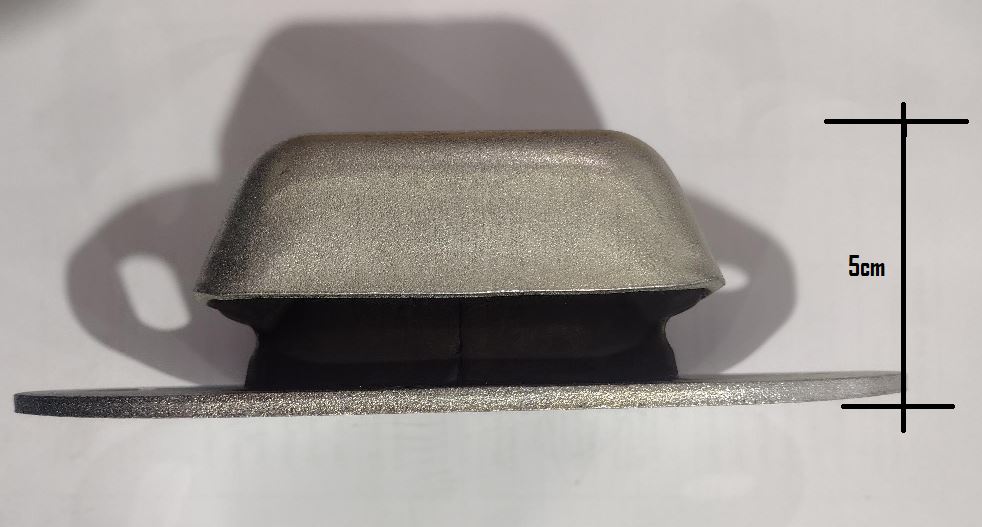

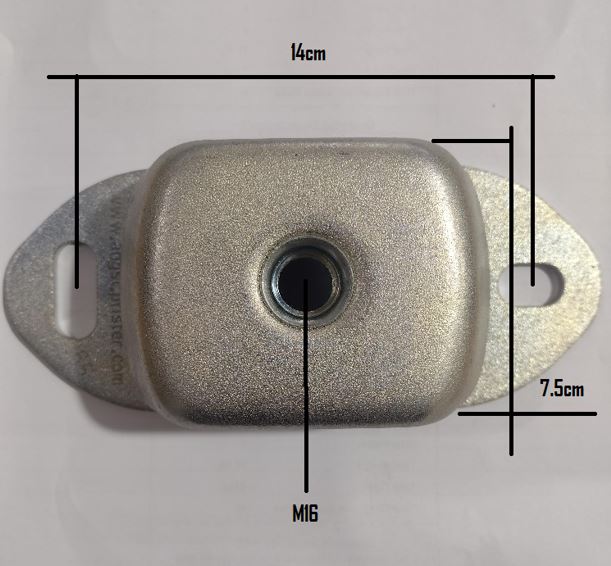

Overall length : 183mm, Width 75mm, Height : 49mm
Distance between mounting bolts: 140mm
Rated 275 kg
IRHD 65 (International Rubber Hardness Degree)
Material: Nickel Plated Steel
M16 stud not included - click link for stud - AN5131 STUD
