Aftermarket / non-genuine parts to suit Volvo Penta 41 Series marine engines:
AD41, AQAD41, D41, TAMD41, TMD41.
Sterndrives AQD41 with turbo at 150hp and AQAD41 with turbo and aftercooler at 200hp.
TAMD41 with shaft drive at 200hp.
These 6 Cylinder Diesels need approx 11 Litres of engine oil and 17 litres of coolant.
Sterndrive Parts are Listed Separately Here.
Spare Part |
Engines | Aftermarket Part No |
---|---|---|
FILTERS: | ||
Oil Filter | Engine | REC 471034 |
Oil 15W40 | Engine Oil | Penrite 15W-40 Convoy DHD Premium Mineral |
Fuel Filter | Engine | REC 3840335 |
Fuel Filter | Primary Racor 828897 | RA 2010 TM |
Air Filter | Old 41 Series 200mm | REC 858488 |
Air Filter | New 41 Series 150mm | REC 21646645 |
Crankcase Filter | REC 876069 | |
Transmission Filter | ZF / HURTH 3582069 | 463772 |
COOLING SYSTEMS: | ||
Anode, Zinc | REC 838929 | |
Anode, Aluminium | CM838929A | |
Impeller Kit | 21422647 |
ANCOR 2039 OR |

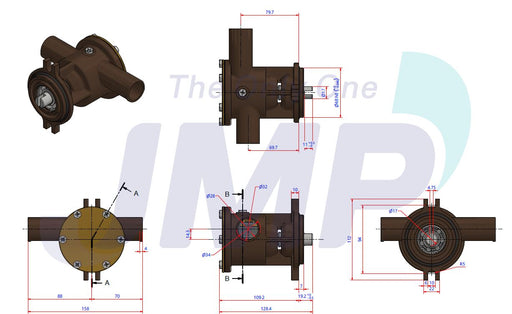

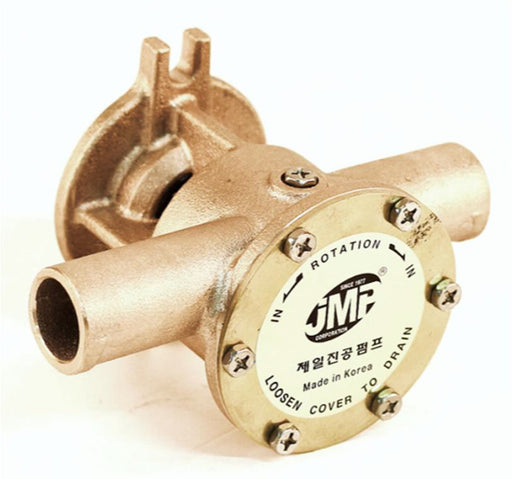

Seawater Pump | 3581558 |
AN 3361 OR |
Pump Drive Coupling | WA 858467 | |
Circulating Pump Repair Kit | 876794 | REC 876794 |
Heat Exchanger | Separate Expansion Tank |
MEC 3586705 |
Oil Cooler (3 Bolt MOTA) |
Newer MOTA Style - 3 Bolt Cover |
|
Oil Cooler Insert (3 Bolt) | AMLP 3580869 | |

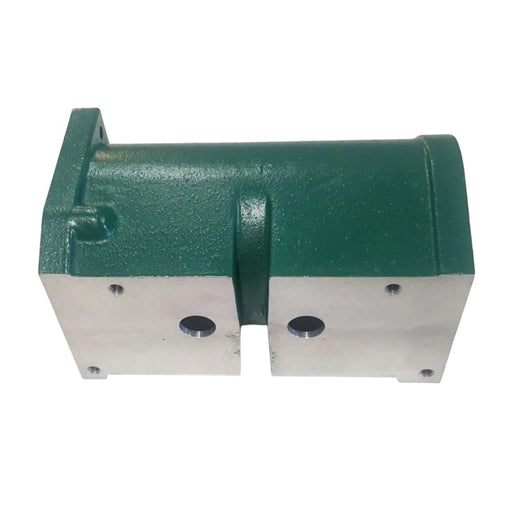

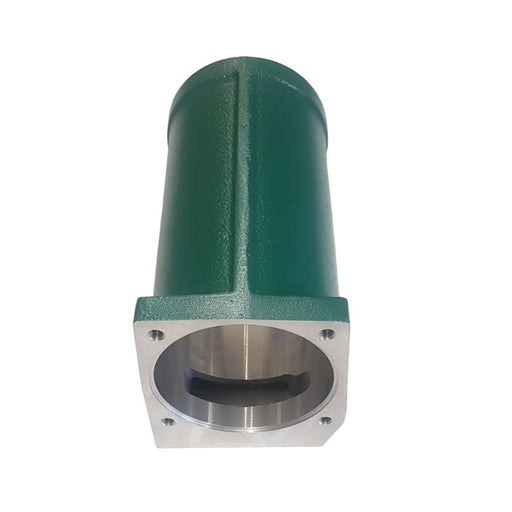

Oil Cooler Housing (4 bolt Old style) | Older 4 Bolt Cap | MES 861600 |

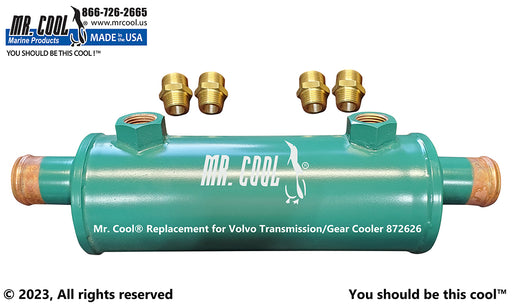

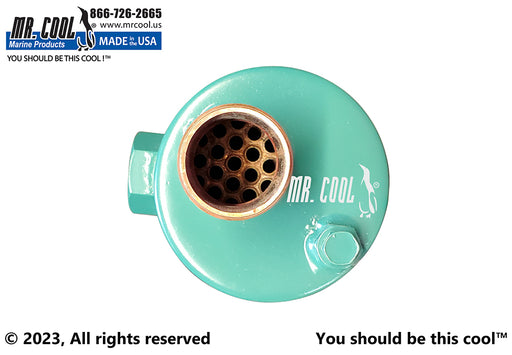

Transmission Cooler | KAD42P-A, KAMD42P-A, DPX, HS1A, DP-D1, DP-E, DP-G | REC 872626 |
Thermostat 81º | New. 2 units. | REC 3831424 |
BELTS & ELECTRICALS: | ||
Fuel Lift Pump | D30, D31, D32, D40, D41, D42, D43, D44, D300 | REC 3582310 |
Belts (2 required) | V Belt 966978 |
REC 966978 |
Alternator | 873770 / 872235 | IBC 873770 |
Pulley, Alternator | 841812 | REC 841812 |
Starter Motor | 12V 3581774 | REC 3581774 |
EXHAUST SYSTEMS: | ||
Turbocharger | 861260 | BorgWarner K26 |
Turbo Gasket Kit | With Clamp | REC 3582563 |
Exhaust Mixing Elbow New Style - Single Water Inlet Older Style - Dual Water Inlet |
861289
859963
|
CAST 316 Stainless HDI VG1 Elbow
HDI VG2 Elbow |
Exhaust Hose | 31 & 41 Diameter 87 mm | CEF500530 |
Exhaust Hose |
31, 32, 41, 42, 43, 300 I D Diameter 100 mm |
CEF500531 |
Exhaust Clamp | 316 Stainless Steel |
HDI VBC |
GASKETS: | ||
Top Set / De-carbonizing Gasket Set | 3583787, 876104, 876530 | REC 3583787 |
Bottom Set / Conversion Gasket Set | 876774, 876362, 876106, 876531 | REC 876774 |
Cylinder Head Gasket | 3583786, 3582433, 3580742, | REC 3583786 |
Oil Cooler Gasket Kit | Old Style Four Bolt Cooler | REC 22149 |
Exhaust Manifold Gasket | 6 Pieces Needed | REC 876144 |
Oil Pan Gasket | 861251, 860685, 1542247 | REC 861251 |
Heat Exchanger Gasket Kit | REC 22109 | |
Aftercooler Gasket kit | 877386, 876110 | REC 22182 |
Water Pipe Gasket Set | REC 22113 | |
Valve Cover Gasket | AD41A, AD41B, AD41L-A, AD41P-A AQAD41A D41A, D41B, D41L-A TAMD41A, TAMD41B TAMD41H-A, TAMD41L-A TAMD41M-A, TAMD41P-A TMD41A, TMD41B, TMD41L-A |
REC 838653 |
Valve Cover Gasket |
3 Pieces Needed |
REC 838654 |
ENGINE PARTS: | ||
Engine Mounts | AD41A, TAMD41A TAMD41P-A, TAMD41H-A, TAMD41H-B, TAMD41L-A, TAMD41M-A |
AN 5131 |
Front Oil Seal | REC 1542318 | |
Rear Oil Seal | REC 860971 | |
Intake Valve | Inlet 39mm | REC 838637 |
Exhaust Valve | Exhaust 37mm | REC 838638 |
Valve Stem Seal | REC 859171 | |
Piston Ring Set | AD41L-A, AD41P-A, D41L-A, TMD41L-A, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41L-A, TAMD41M-A, |
REC 275350 |
Piston Ring Set | D41A, D41D, AD41A, AD41D, AD41B, TMD41, TMD41D, TAMD41, TAMD41D, AQAD41A |
REC 3817033 |
Nozzle Sleeve Kit | AD41A, AD41B, AD41D AD41L-A, AD41P-A AQAD41A D41A, D41B, D41D, D41L-A TAMD41A, TAMD41B, TAMD41D TAMD41H-A, TAMD41L-A TAMD41M-A, TAMD41P-A TMD41A, TMD41B, TMD41D, TMD41L-A |
REC 861255 |
