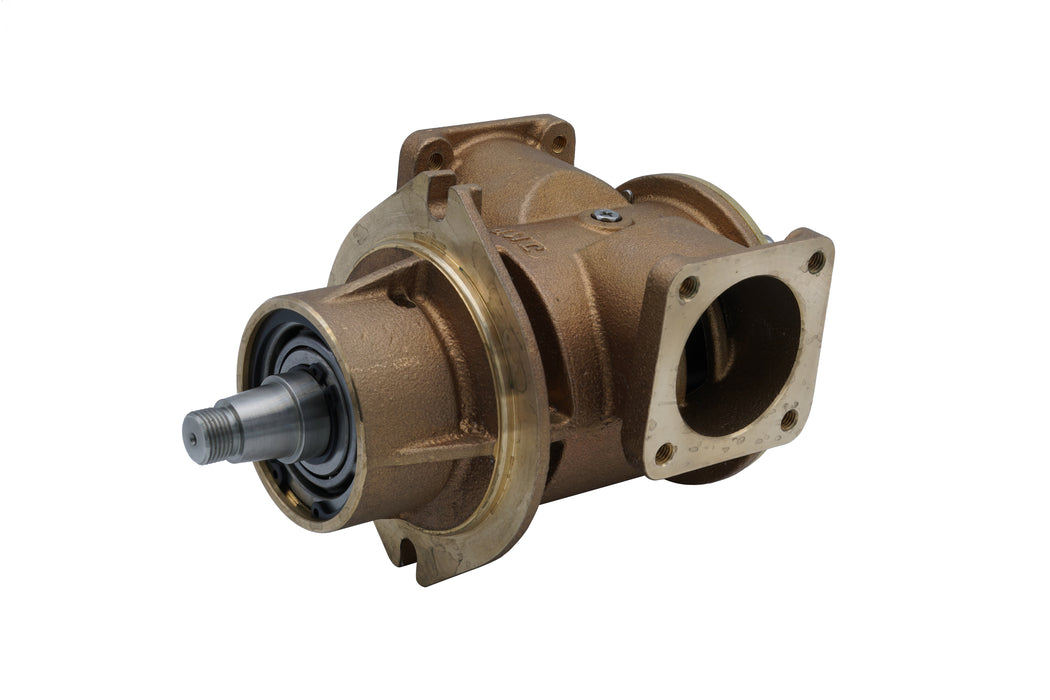

Yanmar 6SY, 8SY; Scania D9 Seawater Pump Replacement
Replaces Johnson 10-24308-02 (F9B-9), 10-24308-02 (F9B-905)
Suits Yanmar Engines: 6SY-STP720, 8SY-STP900
Replaces Yanmar pump: 165000-36440
Suits Scania Engines: D9, DI12, DI13, DI16, DN11, DS11, DSI11
Replaces Scania pump: 1785018 (Pump housing 1 304 981) - 1101073
Pump with tapered shaft. For keyed shaft drive on D13 Generator model, use JPR-SC50IF2.
This is a non-OEM, aftermarket part JMP Pump JPR-SC50 IF
See parts list below. Internal parts are not all the same, JMP has made manufacturing improvements to this pump. Changes made to: End Cover, Cam, Wear Plate, O-Ring for Cover, Shaft, Oil Seal for Better Quality & Performance
Mounting: Flange
Port size: 2" / Flange
Impeller: JMP 8301-01 (Scania 323897 / Johnson 09-814B)
CAM: CAMSET 0016
Size (lxwxh): 220 x 152 x 150 mm
Weight: 7.4kgs (approx)
Major Service Kit JSK0028, Minor Service Kit JSM0033.
CROSS REFERENCE PARTS LISTING AND COMPATIBILITY
|
No.
|
DESCRIPTION
|
JMP
|
SCANIA
|
JOHNSON
|
Compatibility
|
|
|
Pump Assembly
|
JPR-SC50IF
|
1785018
|
10-24308-02
|
O
|
|
1
|
Pump Housing
|
PBC0143
|
1 304 981
|
01-13079
|
X
|
|
2
|
Shaft
|
SHA0083
|
1 304 982
|
01-35282
|
X
|
|
3
|
Cam
|
CAM0016
|
1 119 692
|
01-45173
|
X
|
|
4
|
Impeller
|
8301-01
|
323 897
|
08-814B
|
O
|
|
5
|
End Cover
|
COV0005
|
1 304 983
|
01-35284
|
X
|
|
6
|
O-RING for End Cover (Gasket)
|
ORG0015
|
1 304 984
|
01-45354
|
X
|
|
7
|
Wear Plate
|
WER0003
|
216 253
|
01-42423
|
X
|
|
8
|
Pin for Wear Plate
|
|
262 952
|
01-42426-2
|
|
|
9
|
Slinger
|
SLI0003
|
216 256
|
01-42427-15
|
O
|
|
10
|
Screw for Cam
|
BOL0081
|
295 019
|
0.0138.134
|
O
|
|
11
|
Screw for End Cover
|
BOL0081
|
1 430 539
|
01-46794-09
|
X
|
|
12
|
Gasket for Cam (Washer)
|
GAK0009
|
291 027
|
01-46790-02
|
X
|
|
13
|
Snap Ring
|
SNP0008
|
261 411
|
0.0370.525
|
|
|
14
|
Snap Ring
|
SNP0014
|
282 924
|
0.0371.072
|
O
|
|
15
|
Snap Ring
|
SNP0005
|
282 925
|
0.0370.030
|
O
|
|
16
|
Mechanical Seal
|
MCSSET0003
|
282 923
|
0.2247.008
|
X
|
|
17
|
Oil Seal
|
RET0012
|
282 922
|
0.2234.006
|
X
|
|
18
|
Bearing
|
BER0011
|
282 926
|
0.3431.684
|
O
|
