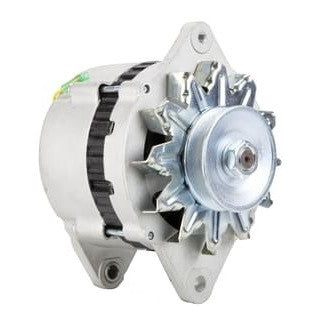

Yanmar Alternator 12V/80Amps - 119573-77201 Replacement 6LY-2/3GM/YM

Yanmar Alternator 12v- 80 Amps 119573-77201 Replacement Part

Alternator will fit most engine models: 3GM, 2YM, 3YM, 3JH, 4JH, 4LH & 6LY

Optional 80A alternator for Yanmar 4JH3E, 4JH3CE1

Replaces Yanmar P/N - 119573-77200 / 77201 / 129470-77200 / Hitachi LR180-03/A/C

Pivot Hole Diameter 11mm
Length Foot to Foot 80mm

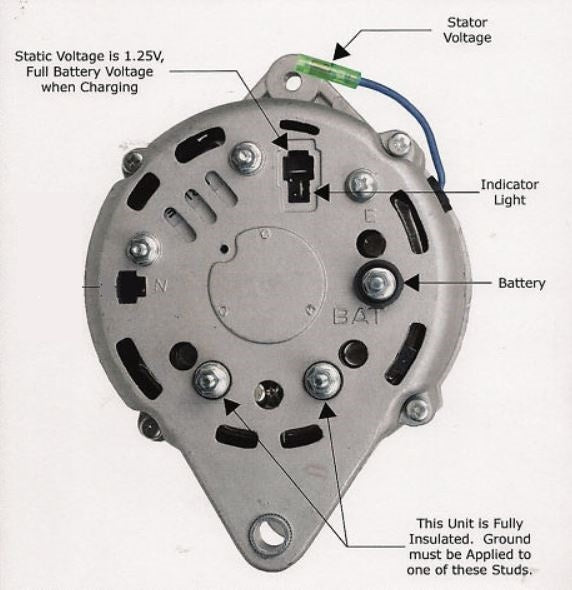

Regulator Style Internal
Adjuster Hole Diameter M8 X1.25mm
Dimensions 19x18x19cm
Amperage 80A
Weight 5.7kg
Shaft Diameter 17mm
Mounting Type J180
Common Application Yanmar Marine
Pulley Grooves Single A
Pulley Diameter 74mm
Plug Type AP97
Voltage 12V


This is a non-OEM, aftermarket part PH300-0002. AH59.
