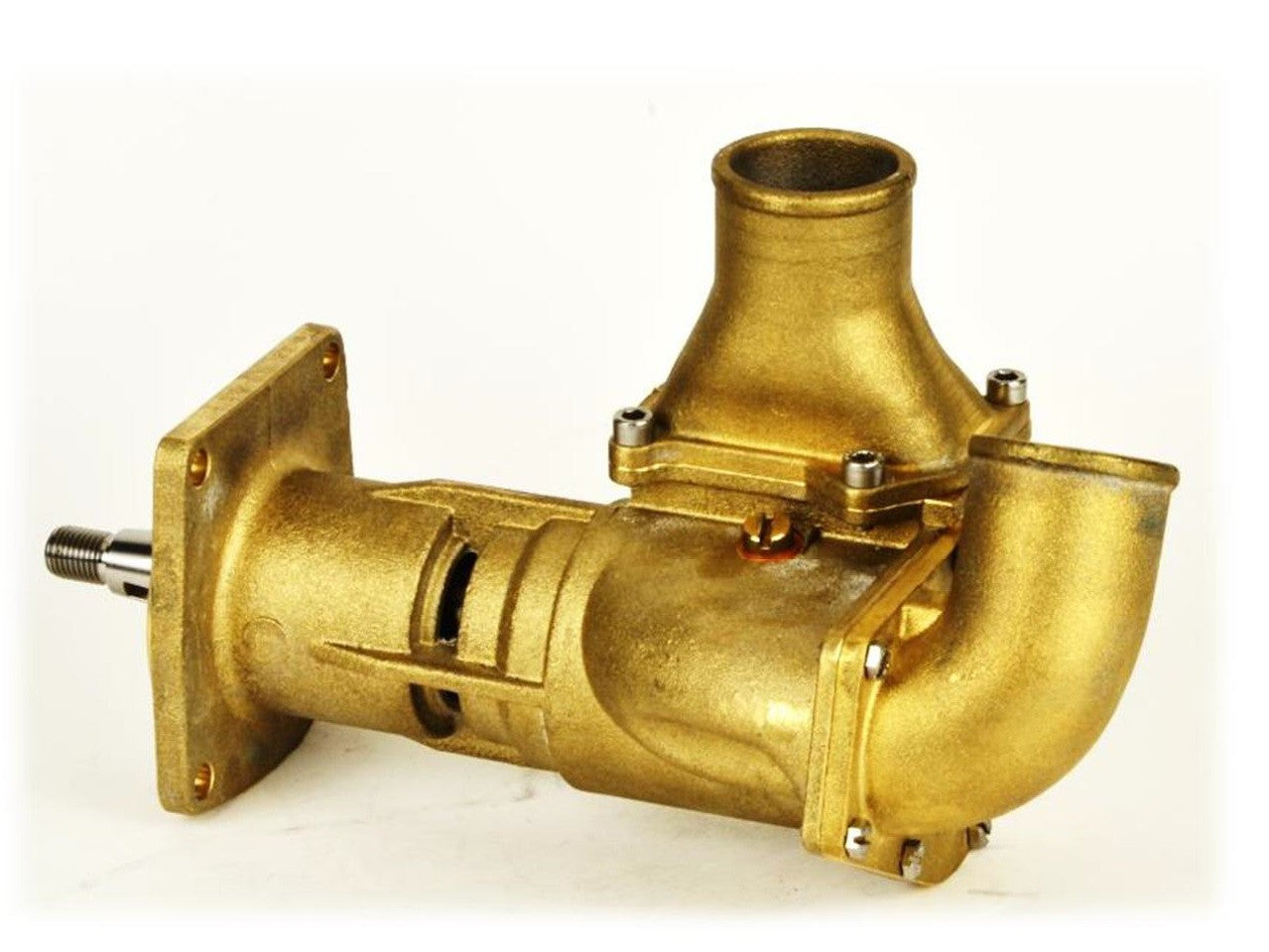

Yanmar 6LY3-ETP/STP/UTPP Seawater Pump 119578-42501 Replacement

Yanmar 6LY3-ETP/STP/UTPP Seawater Pump Replacement Part
Replaces Yanmar Seawater Pump 119578-42501

Replaces Johnson Seawater Pump 10-1286-01

This is a non-OEM, aftermarket part JMP JPR - YM06LY3.

Pump Parts: All Parts Compatible With Yanmar.

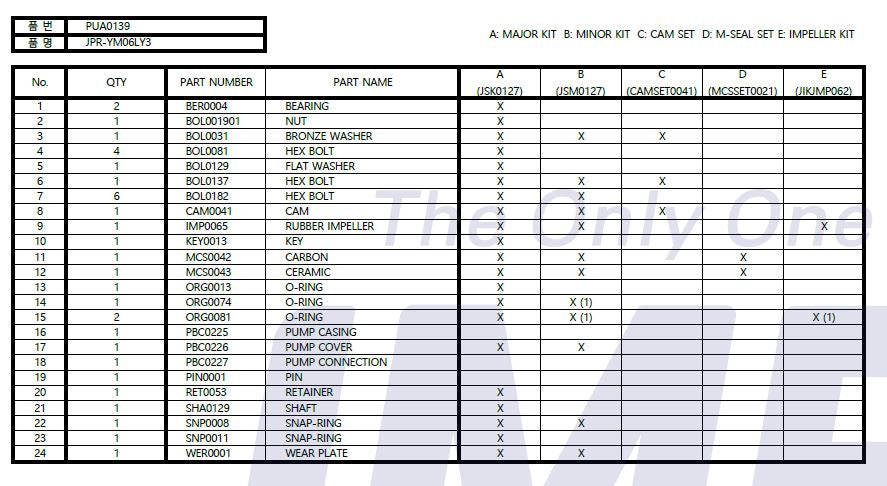

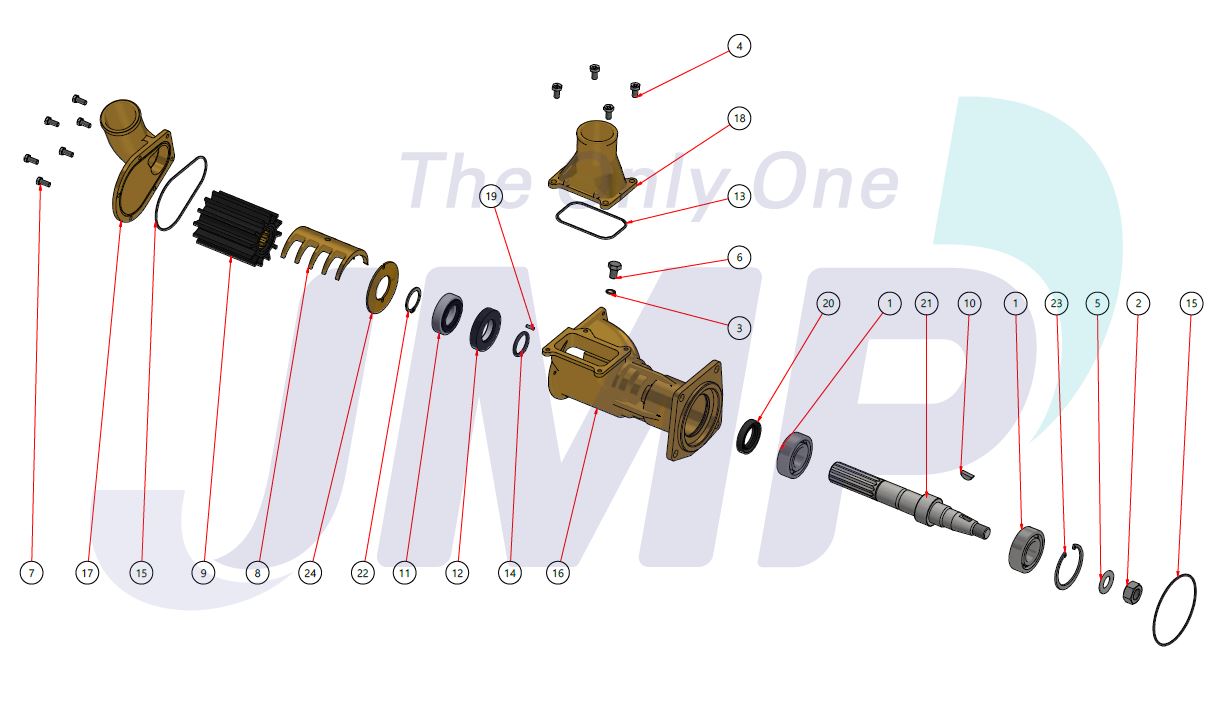

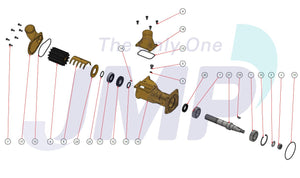

Pos Description Yanmar Number Johnson Number Included
Minor Kit
Included
Major Kit
JMP
Number
Seawater Pump 119578-42501 10-13286-01 JPR-YM06LY3
Minor Kit JSM0127
Major Kit JSK0127
1 Ball
Bearing
119578-42660 0.3431.485 BER0004
2 Nut, Gear 26736-140002 BOL001901
3 Bronze washer, Cam 119578-42700 01-46790-02 BOL0031
4 Hex screw, Hose Flange 119578-42590 0.0252.134 BOL0081
5 Washer, Gear 22117-140000 0 BOL0129
6 Hex bolt, Cam 119578-42720 01-46794-12 BOL0137
7 Hex screw, End Cover 119578-42570 0.0141.503 BOL0182
8 Cam (Order by CAMSET0041) 119578-42610 01-46146 CAM0041
8-1 Cam Set (with BOL0031, BOL0137) N/A 0 CAMSET0041
9 Impeller (Order by 7376K) 119578-42550 08-821B 7376-01
10 Woodruff Key, Gear 22522-050160 0 KEY0013
11 CARBON / Order P/N MCSSET0021 N/A 0 MCS0042
12 CERIMIS / Order P/N MCSSET0021 N/A 0 MCS0043
12-1 Mechanical Seal Set (MCS0042+MCS0043) 119578-42600 0.2247.008 MCSSET0021
13 O-ring (Joint, Hose) 119578-42580 0.2172.998 ORG0013
14 O-ring (Slinger) 119578-42640 0.2172.573 ORG0074
15 O-ring (Cover) 119578-42560 0.2172.996 ORG0085
16 Body, Sea Water Pump 119578-42540 01-24636 PBC0226
17 End Cover 119578-42540 01-24636 PBC0226
18 Joint Hose, Sea Water Pump 119578-42530 01-35999 PBC0227
19 Pin 119578-42630 01-42400 PIN0001
20 Retainer 119578-42650 0.2233.008 RET0053
21 Shaft N/A 01-35998 SHA0129
22 Snap-ring 119578-42670 0.0370.525 SNP0008
23 Snap-ring 119578-42680 0.0371.052 SNP0011
24 Wear plate 119578-42620 01-42443 WER0001
