Yanmar 6LY2 (A)-ST(P),UTP Seawater Pump 119574-42502 Replacement JPR-YM06LY2

by JMP
Original price $2,200.00 AUD - Original price $2,200.00 AUD
Original price
$2,200.00 AUD
$2,200.00 AUD - $2,200.00 AUD
Current price $2,200.00 AUD

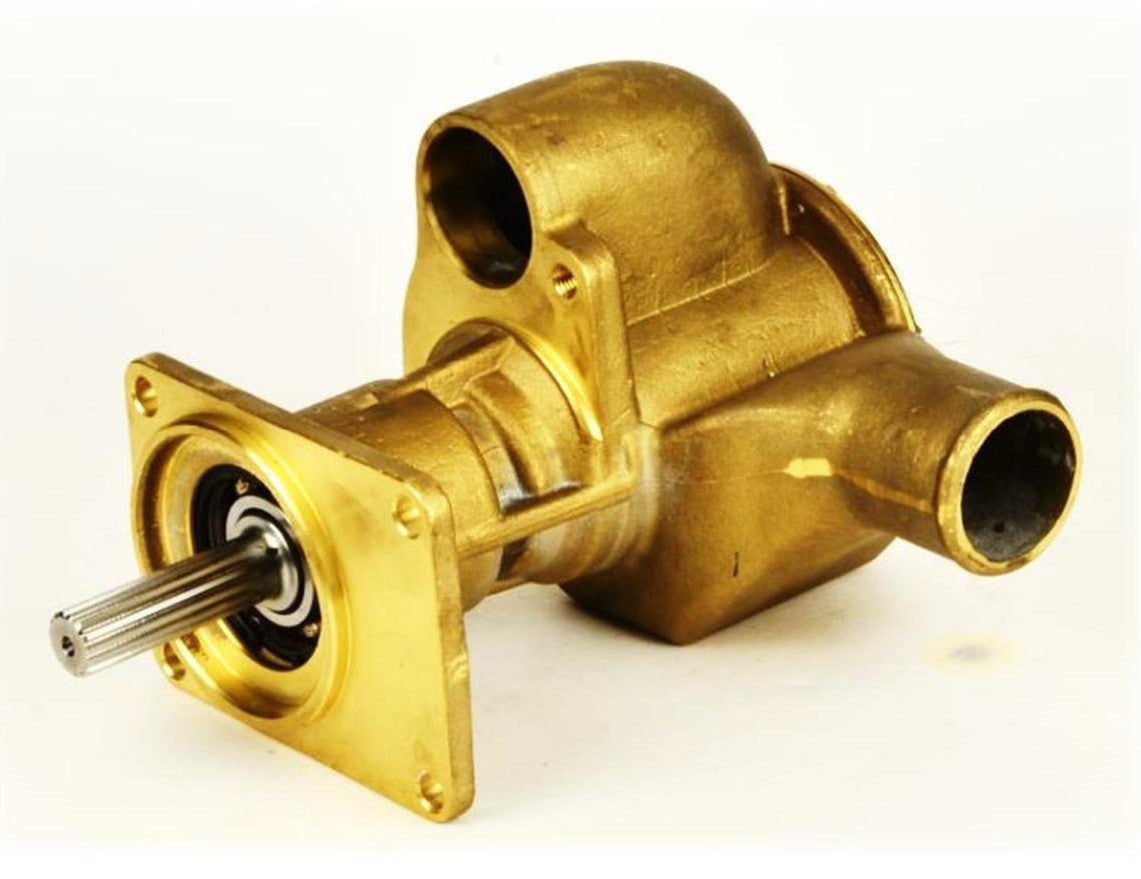

Yanmar 6LY2 (A)-ST(P),UTP Seawater Pump Replacement

Replaces Yanmar 119574-42501 & Yanmar 119574-42500

Replaces Johnson 10-13170-01.

This is an a non-OEM, aftermarket part JMP JPR - YM06LY2.- includes pump mounting o-ring

All parts are interchangeable with Yanmar.

See link for Pump detail video

For minor Service Kit, use JSM0128

For major Service Kit, use JSK0128.

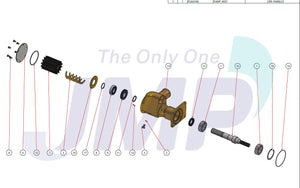

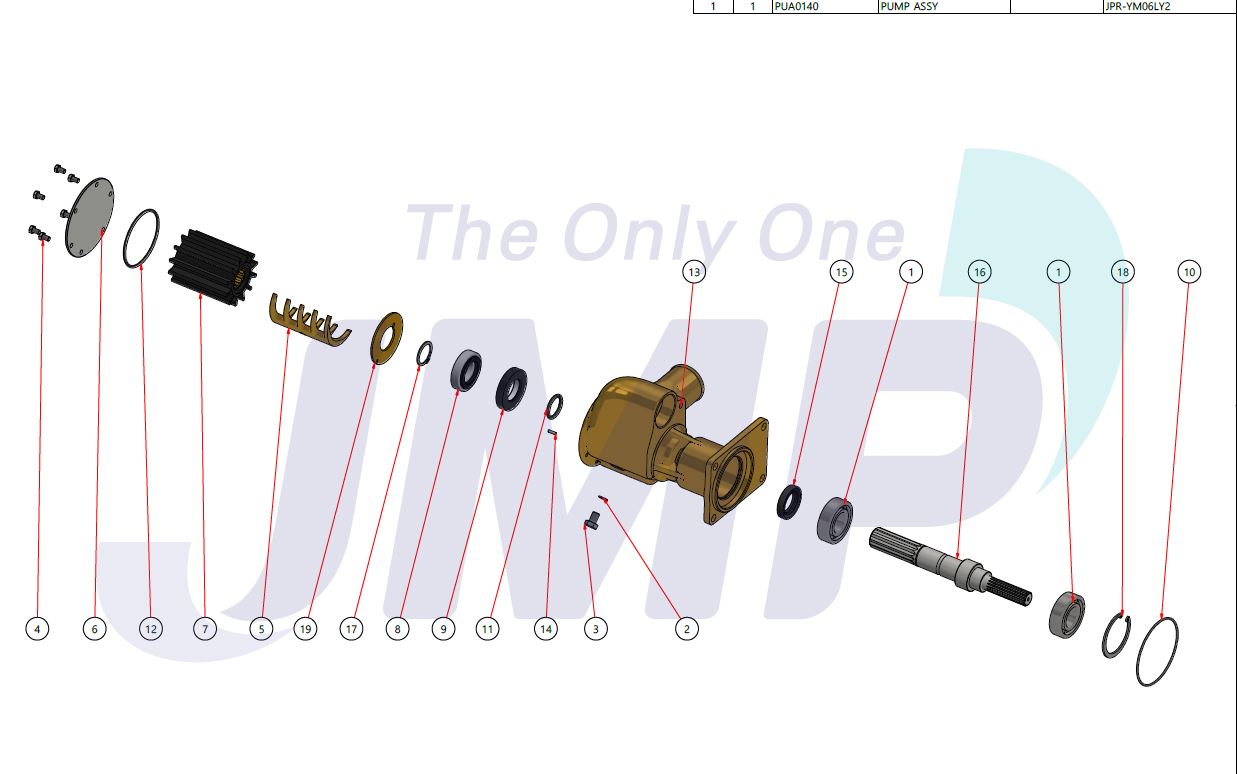

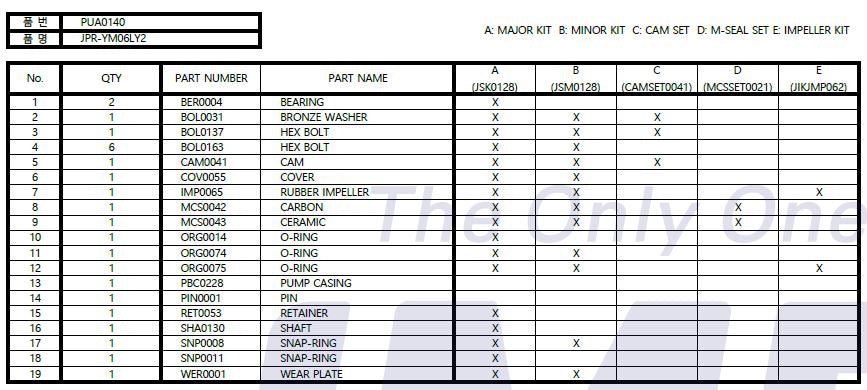

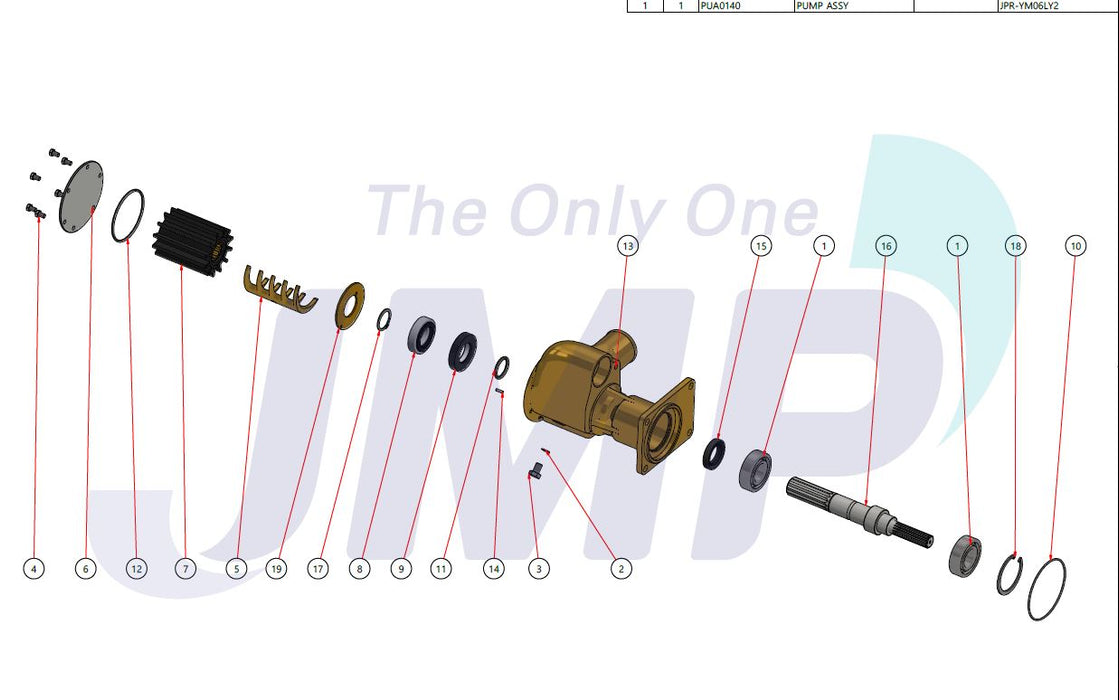

Pos
Description

Yanmar
Number

Johnson
Number
Included
Minor
Kit
Included
Major
Kit
JMP
Number
Seawater Pump 119574-42502 JPR-Y06LY2
20 Minor Kit JSM0128
21 Major Kit JSK0128
1 Bearing 119578-42660 0.3431.485 BER0004
2 Washer, Cam 119578-42700 01-46790-02 BOL0031
3 Hex bolt, Cam 119578-42720 01-46794-12 BOL0137
4 Hex screw 119175-42620 0.0141.502 BOL0163
5 Cam 119578-42610 01-46146 CAM0041
5-1 Cam Set N/A CAMSET0041
6 End Cover 119574-42560 01-46285 COV0055
7 Impeller 119574-42550 08-821B 7376-01
8 CARBON /
MCSSET0021
N/A MCS0042
9 CERIMIS /
MCSSET0021
N/A MCS0043
9-1 Mechanical Seal Set 119578-42600 0.2247.008 MCSSET0021
10 O-ring (Mounting) 24341-000800 ORG0014
11 O-ring (Slinger) 119578-42640 0.2172.573 ORG0074
12 O-ring (End Cover) 119574-42570 0.2173.493 ORG0075
13 Body, Sea Water Pump N/A PBC0228
14 Pin 119578-42630 01-42400 PIN0001
15 Retainer 119578-42650 0.2233.008 RET0053
16 Shaft X0135771 01-35771 SHA0130
17 Snap-ring 119578-42670 0.0370.525 SNP0008
18 Snap-ring 119578-42680 0.0371.052 SNP0011
19 Wearplate 119578-42620 01-42443 WER0001
