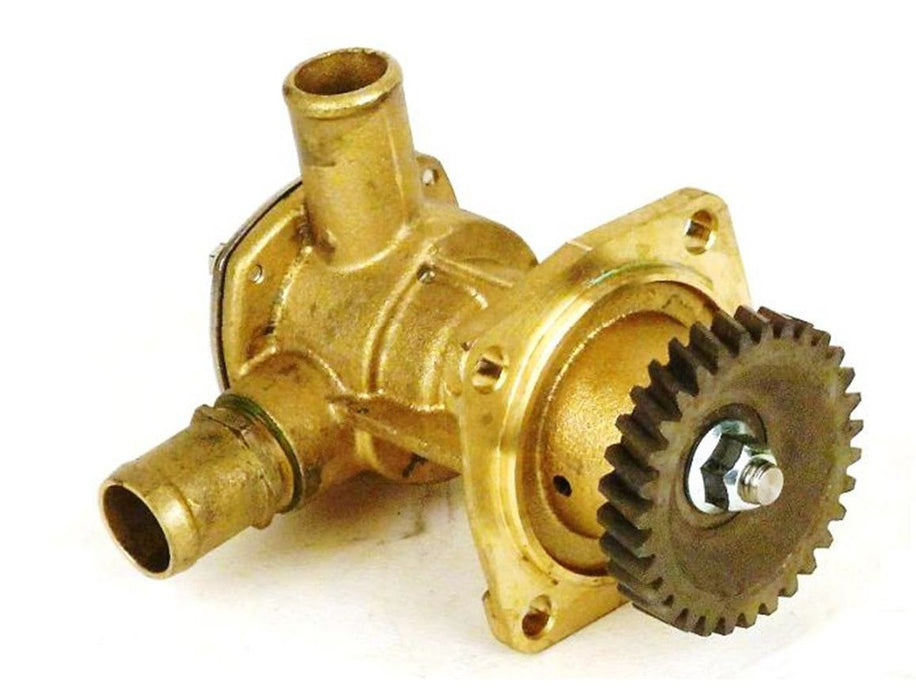

Yanmar 3JH4E, 3JH5E, 4JH5E Seawater Pump 129271-42502 Replacement

Yanmar 3JH4E, 3JH5E, 4JH5E Seawater Pump 129271-42502 Replacement
Replaces Yanmar 129271-42502

Replaces Johnson 10-13328-03

Drive Gear Included. Mounting gasket 129150-01881 is not included. Please add it to your purchase.

This is a non-OEM, aftermarket part JMP JPR-YM04JH02(B)

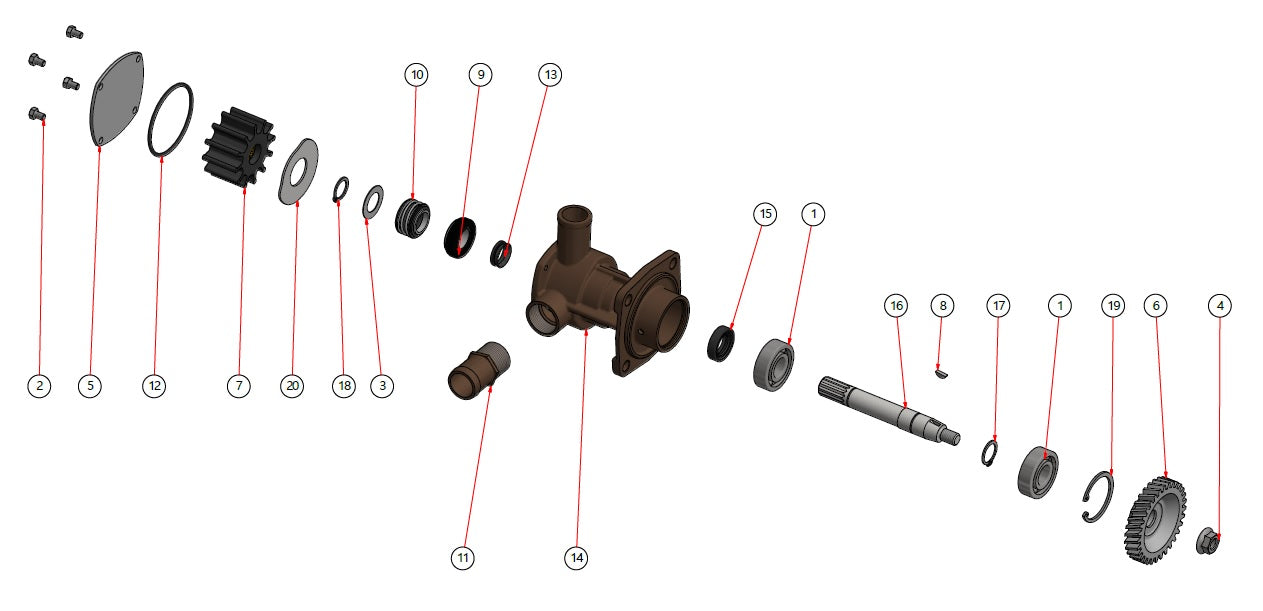

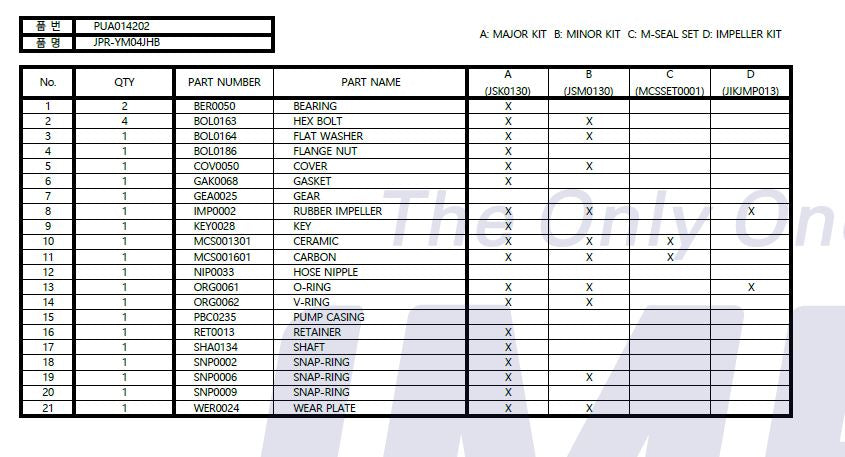

Pos
Description

Yanmar Number

Johnson Number
Included
Minor
Kit
Included
Major
Kit
JMP
Number
Seawater Pump 129271-42502 10-13328-01 JPR-YM04JHB
21 Minor Kit JSM0130
22 Major Kit JSK0130
1 Bearing X0508129 0.3431.483 BER0050
2 Hex screw 129271-42510 0.0138.987 BOL0163
3 Flat washer 129670-42550 01-45680 BOL0164
4 Flange nut X0505526 0.0190.001 BOL0186
5 Cover 129670-42520 01-46535 COV0050
6 Gear 129670-42700 19-12967042700 GEA0025
7 Impeller 129670-42531 08-1027B 7100-01
8 Key 129670-42580 0.0503.010 KEY0028
9 Ceramic N/A MCS001301
10 Carbon N/A MCS001601
10-1 Mechanical Seal Set (MCS001301,MCS001601) 129670-42560 0.2247.050 MCSSET0001
11 Hose, Pipe 123325-49421 01-47060 NIP0033
11 O-ring (Cover) 119773-42570 0.2173.475 ORG0061
12 O-ring (V-ring_Slinger) 120650-42420 0.2230.015 ORG0062
13 Pump body N/A 01-24639-1 PBC0235
15 Retainer X0529105 0.2233.001 RET0013
16 Shaft X0146531 01-46531 SHA0134
17 Snap-ring 120650-42380 0.0370.017 SNP0002
18 Snap-ring 129670-42570 0.0370.516 SNP0006
19 Snap-ring 120650-42350 0.0371.040 SNP0009
20 Wear plate 129670-42540 01-46532 WER0024
