Volvo Penta D1, D2-40, MD2010, 2020, 2030 3/4" CAST 316 Stainless Mixing Elbow 861906 Replacement (V834)

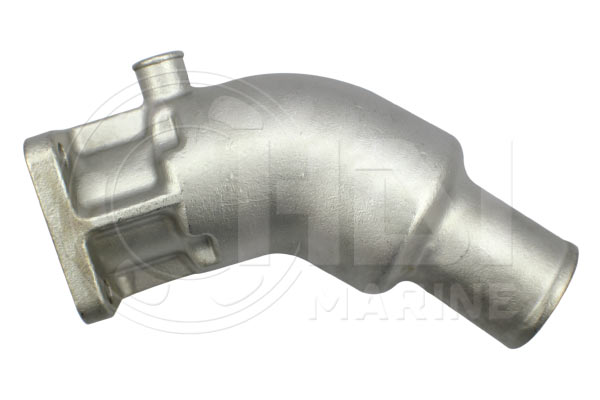

Volvo Penta 861906 Stainless Steel Mixing Elbow Replacement

There are two options, depending on the water inlet size.

This part is the 3/4” (19mm) Water Inlet Size. The silicone hose is also available here.

For the 7/8" (22.2mm) water inlet version use HDI-V878.

Suits Volvo Penta D1-13, D1-13B, D1-13F, D1-20, D1-20B, D1-30, D1-30B, D1-20F, D1-30F, D2-40, D2-40B, D2-40F

Suits Volvo Penta MD2010, MD2020, MD2030, MD2040

Replaces Volvo Penta 861906

Purchase Includes gasket that replaces Volvo Penta 861907

Precision CNC machined investment cast 316 stainless steel.

Water inlet hose elbow for V834  - HV8

3/4" (19mm) water inlet

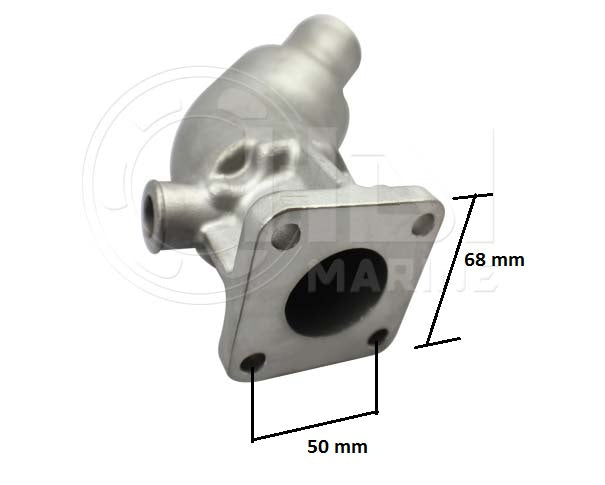

1 ¾” (44.5mm) discharge diameter
Product weighs 6.5 lbs (3kg)
Shipping weight is 7.5 lbs (3.5kg)

This is a non-OEM, aftermarket part HDI-V834.
