Cummins 6CTA8.3M and 6CTA8.3M2 Seawater Pump Replacement JMP JPR-S7627

Cummins 6CTA8.3M and 6CTA8.3M2 Replacement Seawater Pump

Cummins Engines: 6CTA8.3M**, 6CTA8.3M2

Replaces Cummins Seawater Pump: 3897194, 3964767

Replaces Sherwood Pump P/n - P1727, P1727FB, P1727FB-01, P1727B-02, P1727A, P1727C

This is a JMP Marine pump JPR - S7627

** Two pumps available for Cummins 6CTA8.3M. Difference in flange orientation. See photos and alternative JMP JPR-S7630

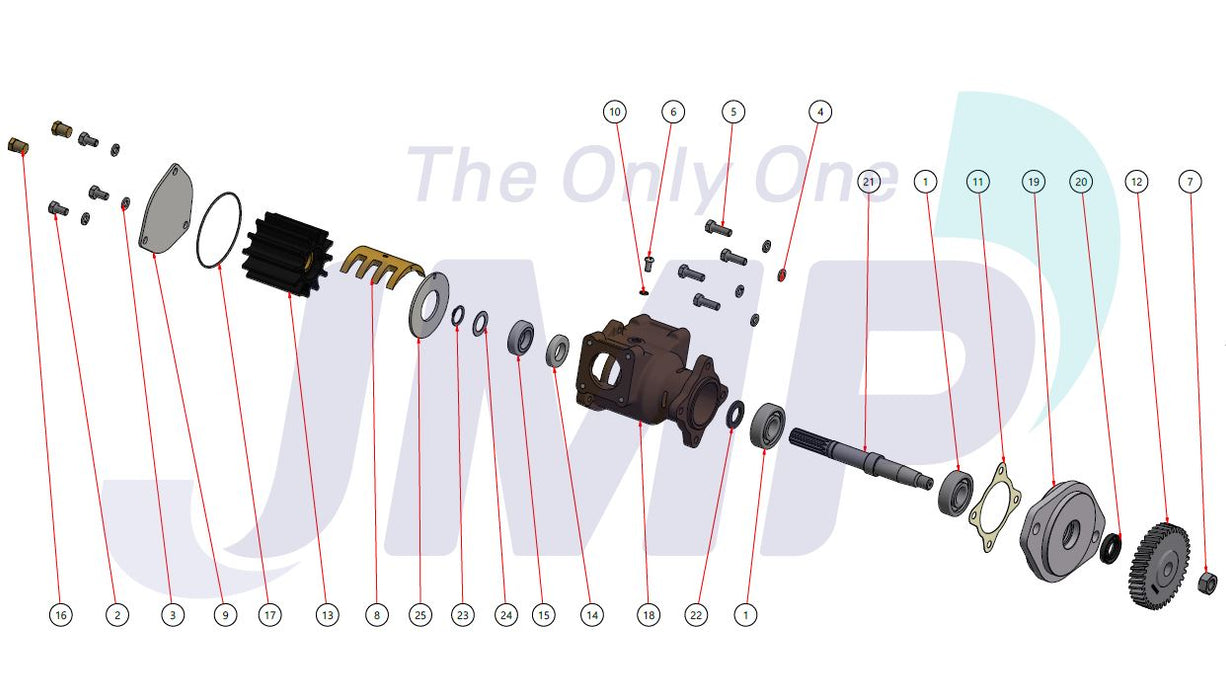

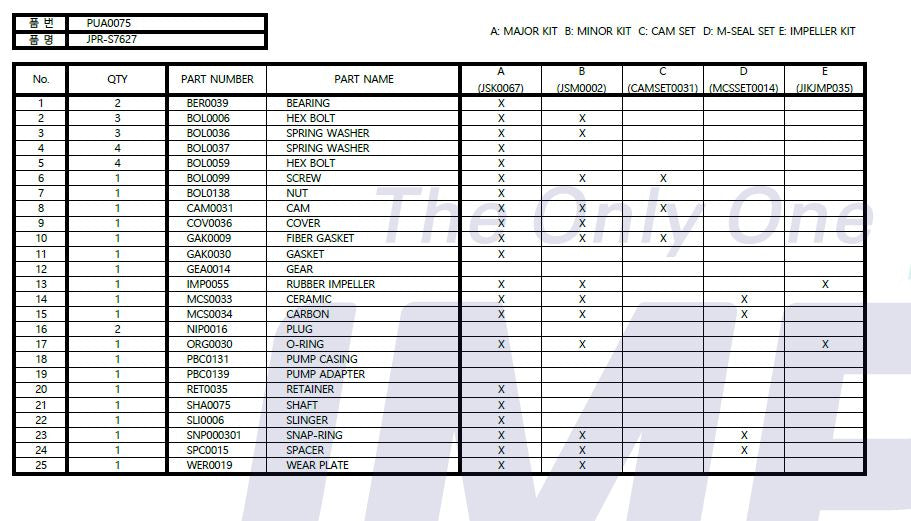

Pump Parts (not compatible with original, performance improvements have been made):

JMP DESCRIPTION QTY REMARK
JPR-S7627 SEA
  WATER PUMP
1 RE-ENGINEERED
BER0039 BEARING 2
CAMSET0031 CAM SET 1 WITH SCREW & PACKING
COV0036 END COVER 1
GAK0030 GASKET, MOUNTING 1
7608-01 IMPELLER 1 SPLINE TYPE
MCSSET014 MECHANICAL SEAL SET 1
ORG0030 O-RING, END COVER 1
SHA0075 SHAFT 1
WER0019 WEAR PLATE 1
GEA0014 GEAR 1
JSM 0002 MINOR KIT 1
JSK0067 MAJOR KIT 1 ALL INTERNAL PARTS



This is an aftermarket part. JMP Pump Model JPR- S 7627
