Detroit Diesel 8V92TA & 16V92TA Seawater Pump Replacement G6300

Raw water pump suits Detroit Diesel marine engines 8V92TA & 16V92TA

Replaces Detroit Diesel pumps 8923363, 23507475, 23507476, 23507477, 23507973

This is a non-OEM, aftermarket part JMP JPR G6300.

This pump is supplied with the drive gear.

Parts are internchangeable with the original pump.

Impeller: JMP - 8300-01 (Detroit Diesel 23501648, Jabsco 17370-0001)

Service Kit:

JMP Major - JSK0026

JMP Minor - JSM 0005

DDC: 8927566

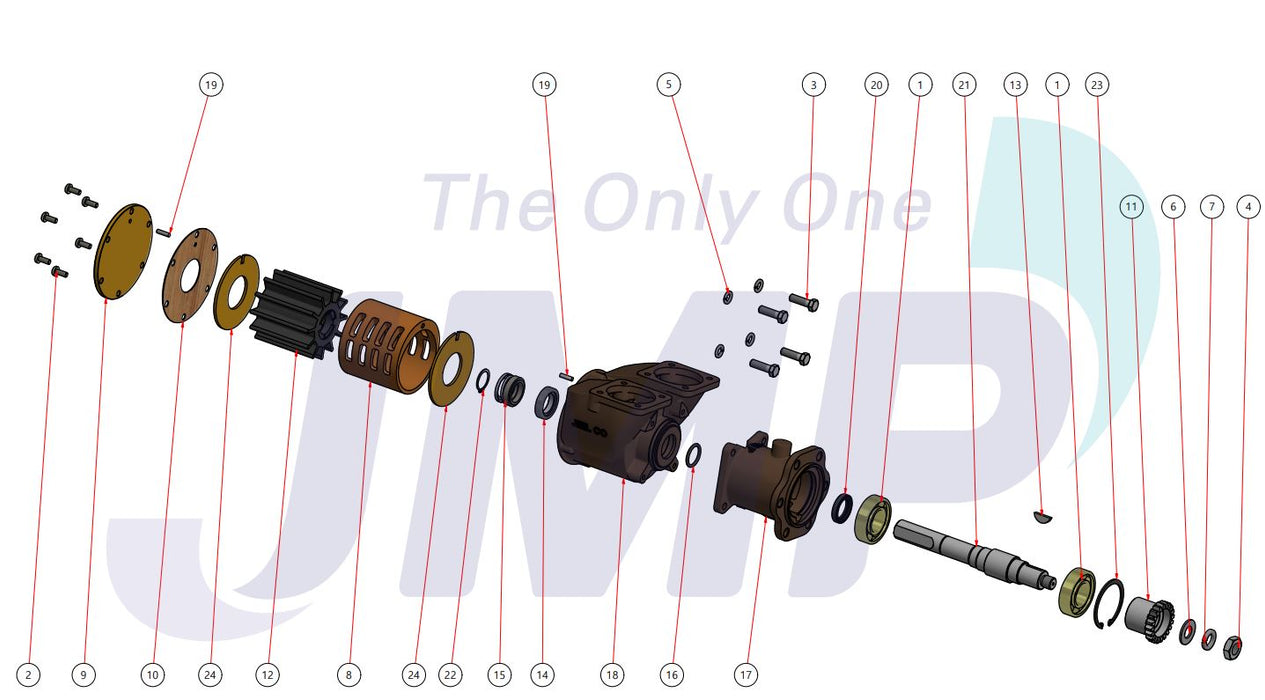

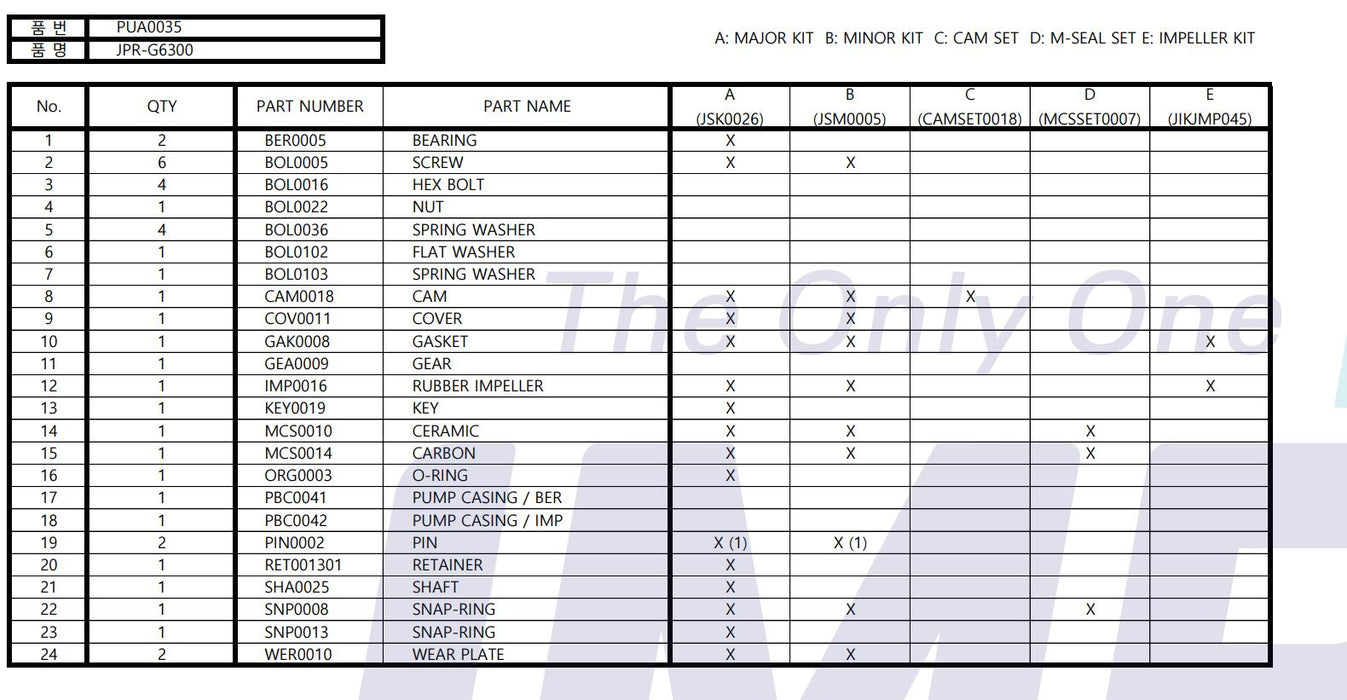

JMP DETROIT DESCRIPTION QTY NOTES
JPR-G6300 23507973 SEA WATER PUMP 1
BER0005 8927574 BALL BEARING 2
BOL0005 23501649 SCREW, END COVER 6
CAMSET0018 8927571 CAM LINER 1
COV0011 8927569 END COVER 1
GAK0008 23501648 GASKET, END COVER 1
8300-01 8927570 IMPELLER 1
KEY0019 23501664 KEY 1
MCSSET0007 8927573 MECHANICAL SEAL SET 1
ORG0003 23501652 O-RING 1
PIN0002 N/A DOWEL PIN 2
RET001301 23501651 OIL SEAL 1
SHA0025 8927572 SHAFT 1
SNP0013 23501656 SNAP RING 1
WER0010 8927568 WEAR PLATE 2
GEA0009 N/A GEAR 1
JSM0005 N/A MINOR KIT 1
JSK0026 8927566 MAJOR KIT 1 ALL INTERNAL PARTS
