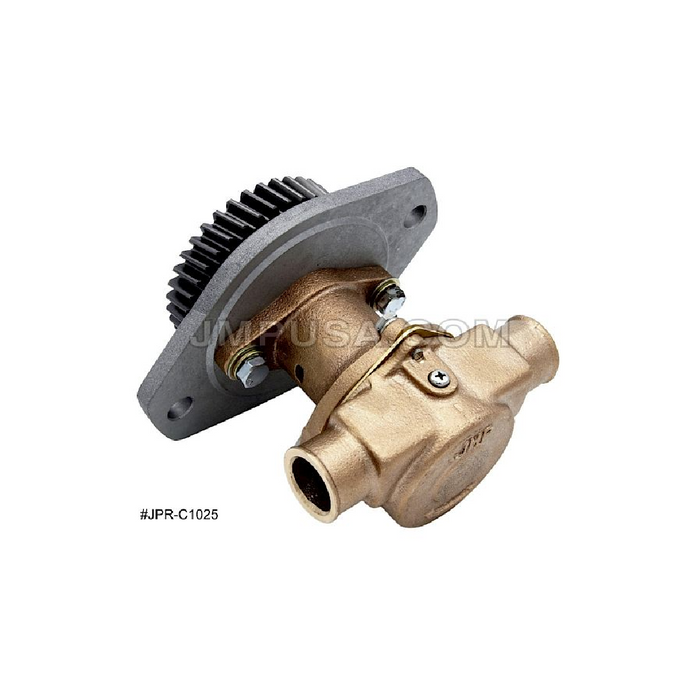

Cummins 4BT & 6BT M71 Seawater Pump Replacement JPR-C1025
by JMP Marine
SKU: JMP JPR-C1025
Original price
$1,050.00 AUD
-
Original price
$1,050.00 AUD
Original price
$1,050.00 AUD
$1,050.00 AUD
-
$1,050.00 AUD
Current price
$1,050.00 AUD
Description:
Seawater Pump JPR C1025 for Cummins 4BT/A 3.9M, 6BT/A 5.9M Sh. M7,M71 M71-01 Replacement
Replacement raw water pump for Cummins marine engines: 4B3.9M, 4BT3.9M, 4BTA3.9M, 6B5.9M, 6BT5.9M
Replaces Cummins seawater pump: 3907458, 3912019.
Replaces Sherwood Pumps M7, M71, M71-01

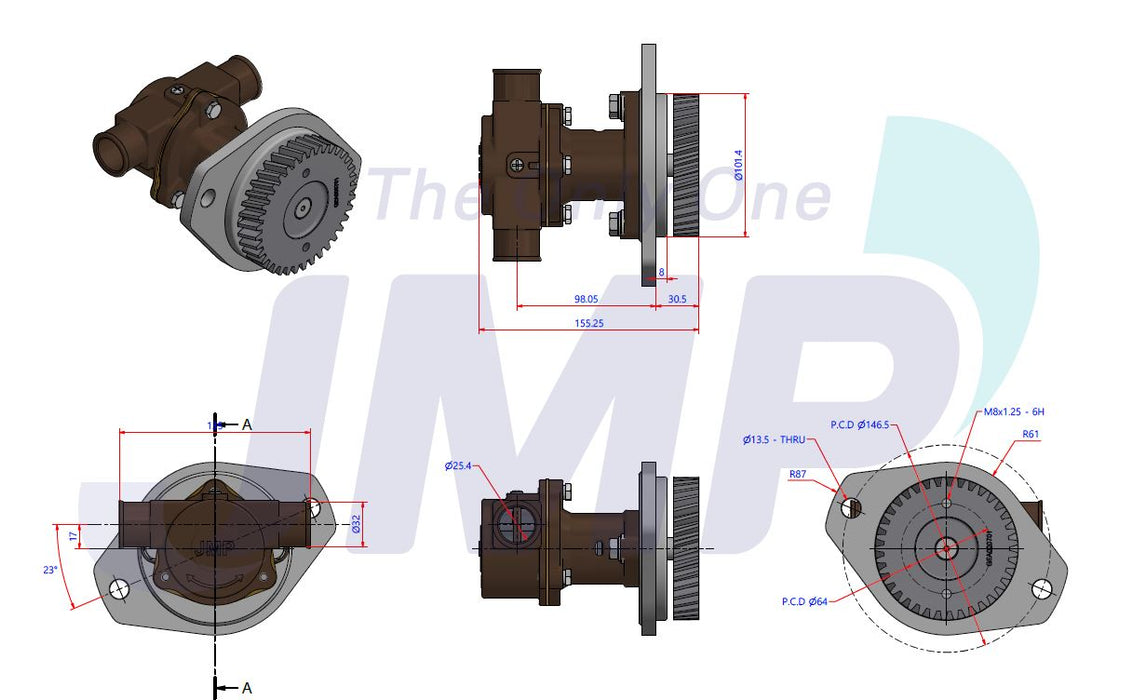

WATER CONNECTIONS: This pump has Inlet / Outlet ports 1-1/4" (32 mm)
(For pump with 1-1/2" ( 38 mm) in/out ports, use DJ Pump DJ C0830).
This is not the same as the Cummins 4BTA pump 3349340 (Sherwood G1503) which has different hose size and orientation.
This is a JMP Marine pump JPR-C1025 - See link for Pump Detail Video
Mounting gasket not included click here to order LP 3008400

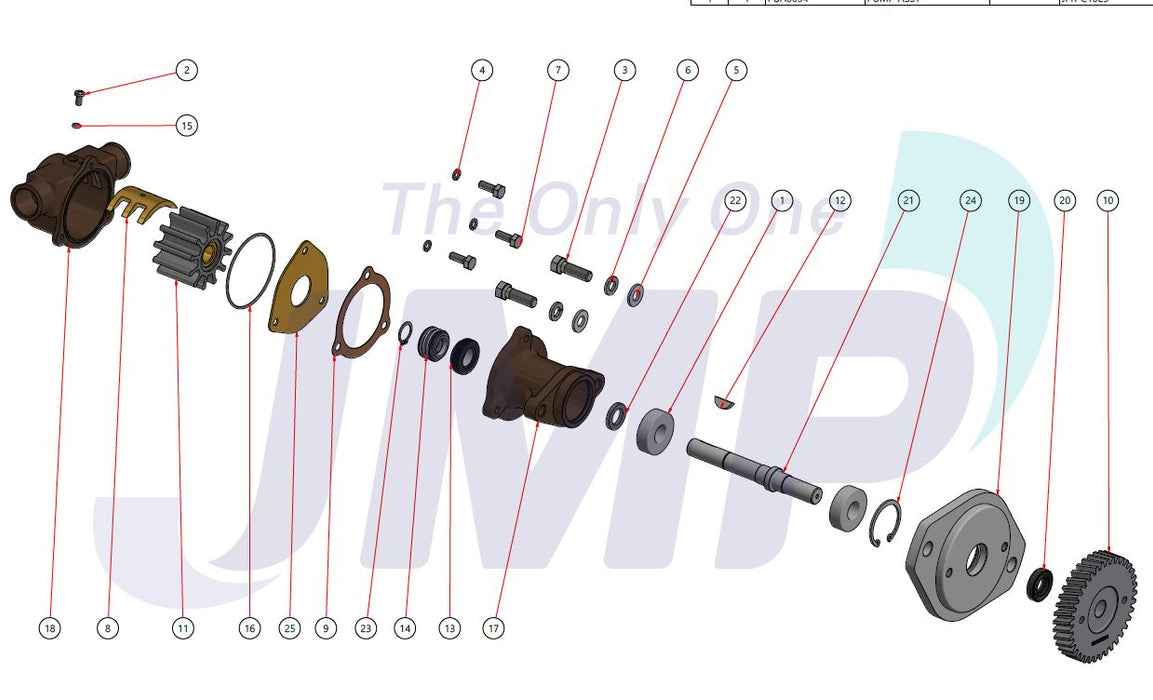

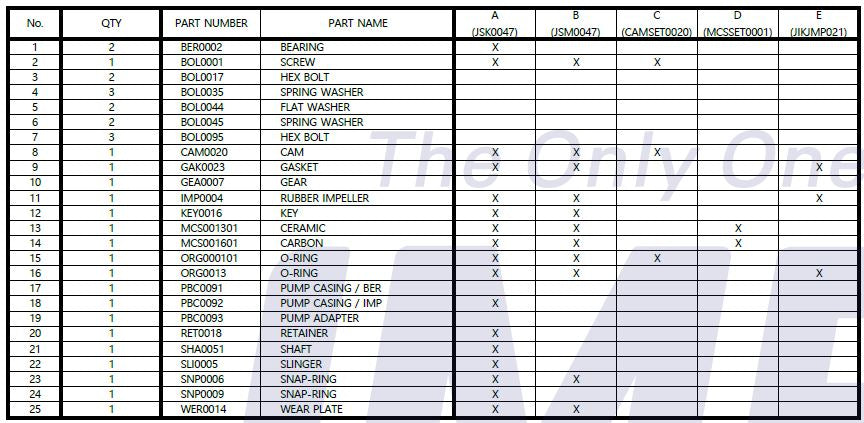

Pump Parts: (Not Interchangeable with Cummins Pump)
| JMP | DESCRIPTION | QTY | REMARK |
|---|---|---|---|
| JPR-C1025 | SEA WATER PUMP | 1 | RE-ENGINEERED |
| BER0002 | BALL BEARING | 2 | |
| CAMSET0020 | CAM SET | 1 | WITH SCREW & PACKING |
| GAK0023 | GASKET | 1 | |
| GEA0007 | GEAR | 1 | |
| JMP 7300-01 | IMPELLER | 1 | |
| KEY0016 | KEY, WOODRUFF | 1 | |
| JMP MCSSET 0001 | MECHANICAL SEAL SET | 1 | |
| ORG0013 | O-RING, IMPELLER | 1 | |
| PBC0092 | HOUSING, IMPELLER | 1 | |
| RET0018 | SEAL, OIL | 1 | |
| SHA0051 | SHAFT | 1 | SHERWOOD 14159 |
| SNP0006 | SNAP RING | 1 | |
| SNP0009 | SNAP RING | 1 | |
| WER0014 | WEAR PLATE | 1 | |
| JSM 0047 | MINOR KIT | 1 | |
| JSK 0047 | MAJOR KIT | 1 |
