Minor Service Kit for Volvo Penta D4 Engine Seawater Pump -3584062

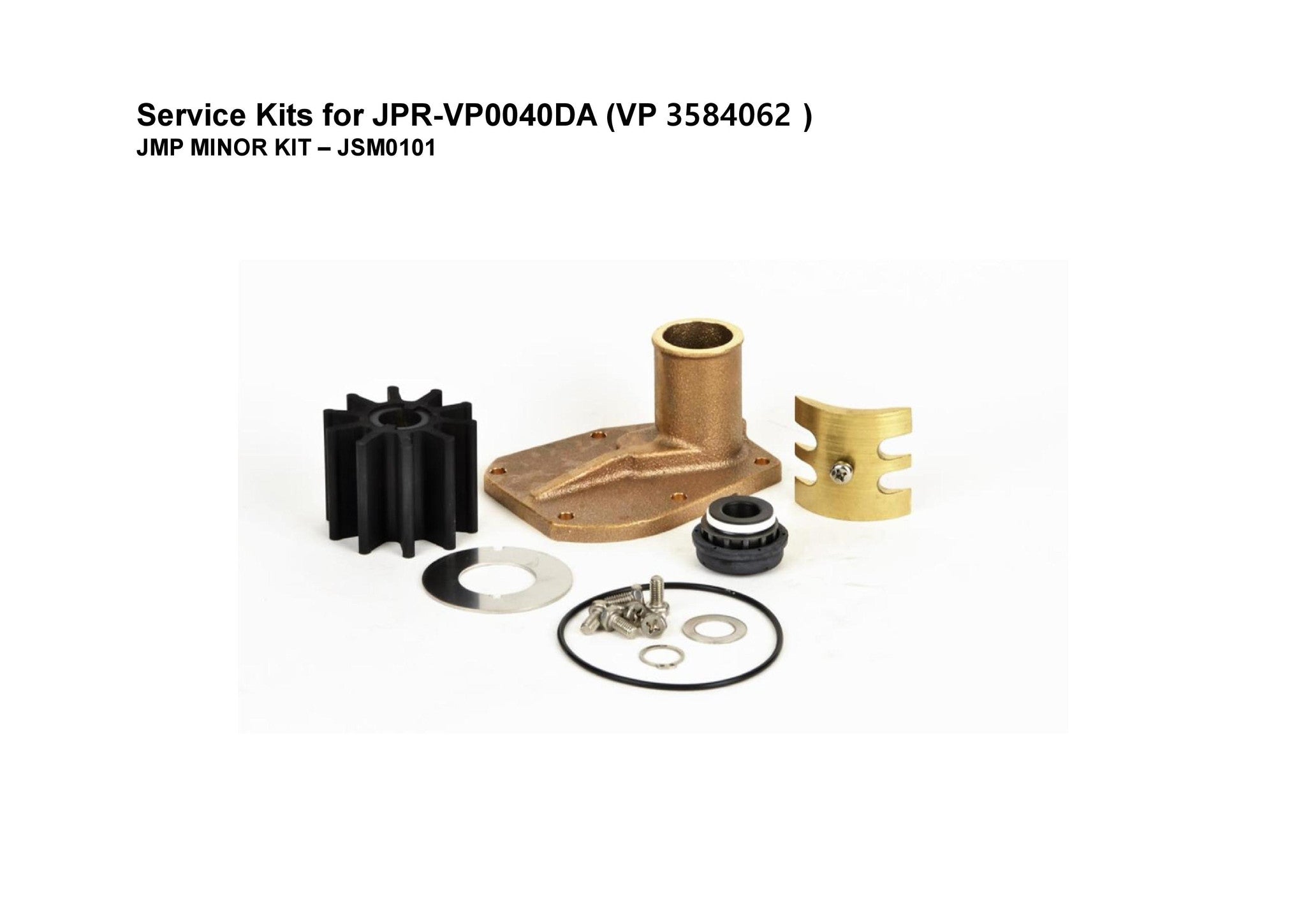

Service Kit for Volvo Penta D4 Engine Seawater Pump

Suitable for Volvo Penta Seawater Pump 3584062 used on Volvo Penta D4 Series Engines.

Minor Service Kit. For Major Service Kit use JMP-JSM0101

Kit Contents: Interchangeable with Volvo Penta parts

No. Description Qty Volvo Penta Compatibility JMP Number In Kit
Sea water pump 1 3584062 Yes JPR-VP0040DA
1 Ball Bearing 2 21422639 Yes BER0052
2 Screw, End Cover 6 3583604 Yes BOL0081
3 Cam Set 1 3583612 Yes CAMSET0039
Cam 1 3583612 Yes CAM0003
Screw, Cam 1 3583605 Yes BOL0002
4 Impeller Kit 1 3588475 Yes 7426K
Impeller 1 3583611 Yes 7426-01
O-ring, End Cover 1 888386 Yes ORG0071
5 Key, Woodruff 1 3583609 Yes KEY0032
6 Mechanical Seal 1 981749 Yes MCS0046
7 Plug, Drain 1 3583614 Yes NIP0014
8 O-ring, Cam 1 3583613 Yes ORG0002
9 End Cover 1 888387 Yes PBC0216
10 Pin, Wear Plate 1 3583599 Yes PIN0001
11 Pulley 1 21418999 Yes PUL0034
12 Shaft 1 804709 Yes SHA0123
13 Snap Ring, Pulley 1 809444 Yes SNP0004
14 Snap Ring (M-Seal) 1 21422641 Yes SNP0006
15 Snap Ring  (Large) 1 888388 Yes SNP0013
16 Washer 1 807589 Yes SPC0019
17 Wear Plate 1 N/A Yes WER0029
19 Service Kit - Minor 1 N/A Yes JSM0101
18 Service Kit - Major 1 Yes JSK0101
