Service Kit (Minor) for Volvo Penta D11B Engine Seawater pump 22063494

Service Kit for Volvo Penta D11B Engine Seawater Pump

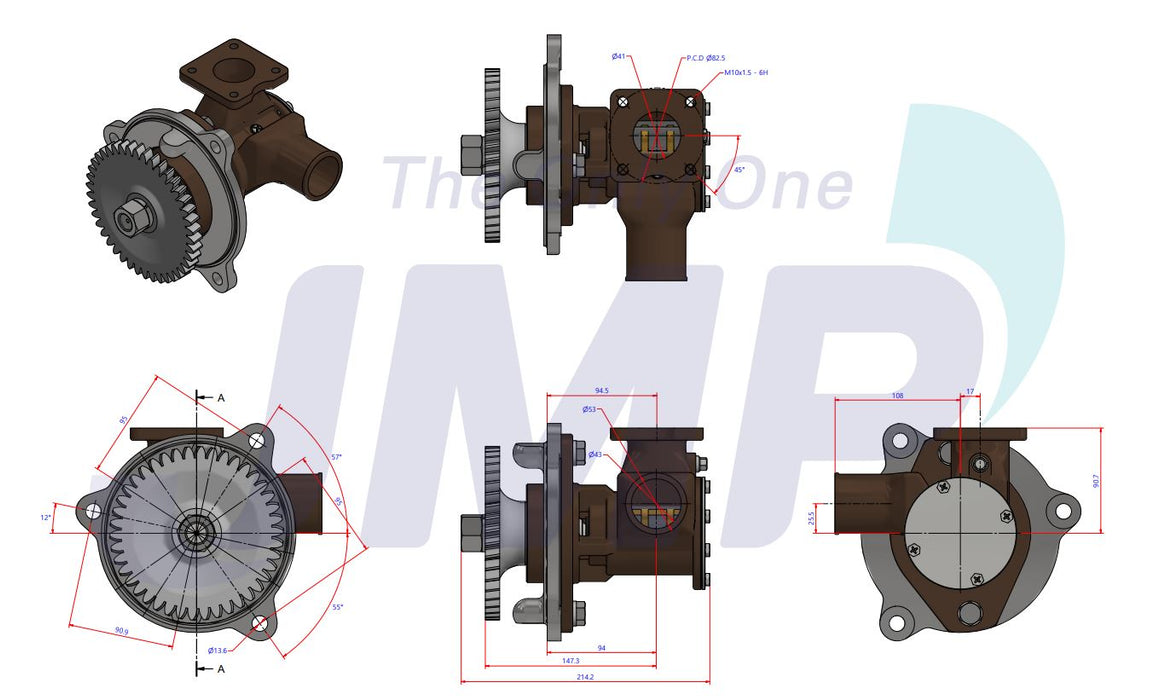

Suitable for Volvo Penta Seawater Pump 22063494 used on Volvo Penta D11B Series Engines.

Suitable for JMP Pump JPR-VP0110DB.

Minor Service Kit. For Major Service Kit use JMP-JSK0106

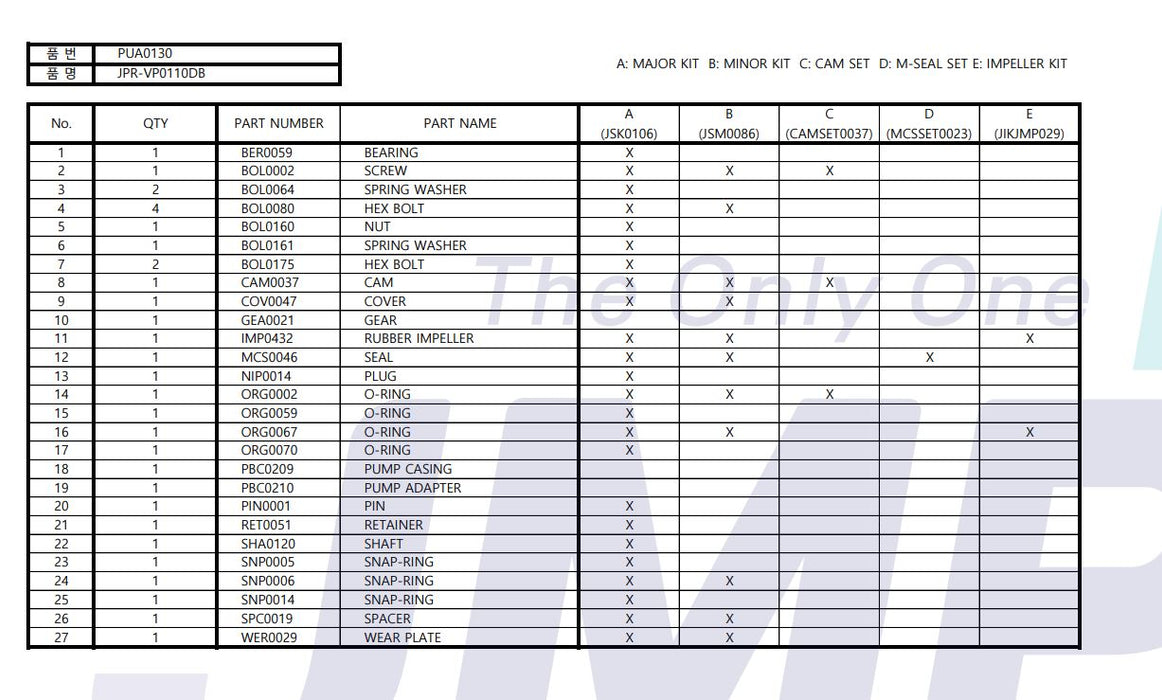

Kit Contents: Interchangeable with Volvo Penta parts

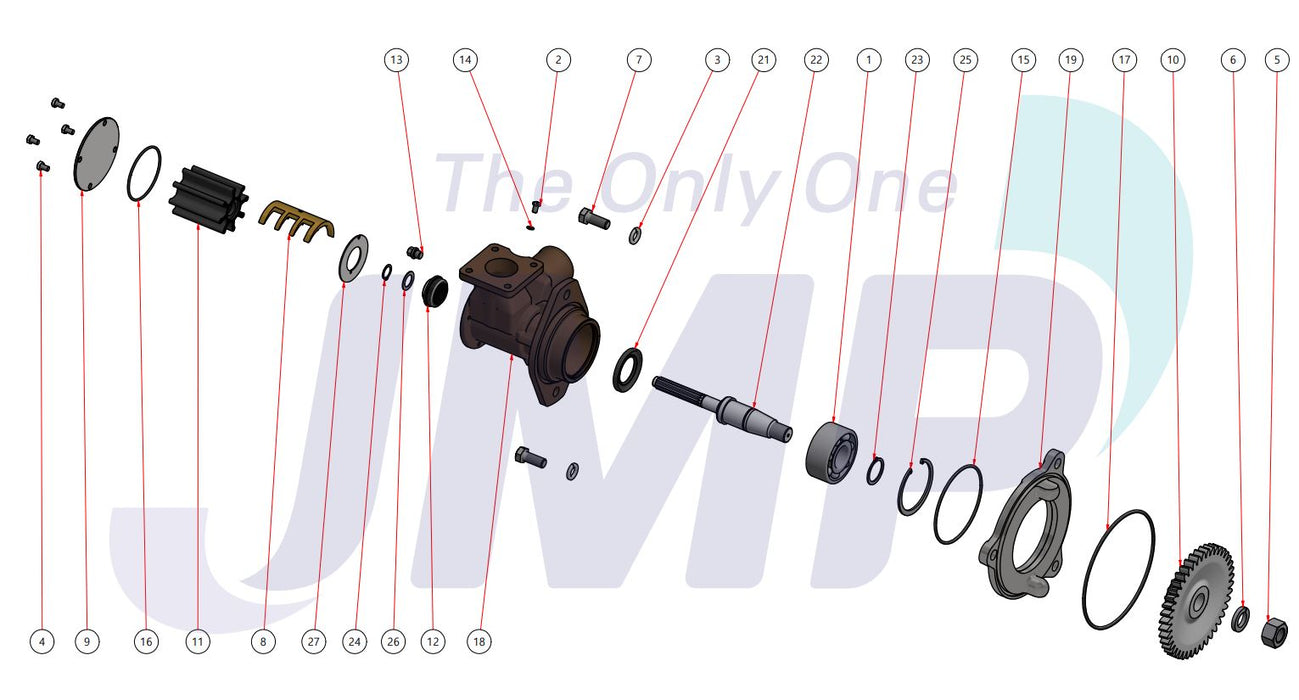

No. Description Qty Volvo Penta Compatibility JMP Number In Kit
Sea water pump 1 22063494 Yes JPR-VP0110DB
1 Bearing 1 3587881 Yes BER0059
2 Screw, End Cover 4 3583605 Yes BOL0080
3 Hexagon nut 1 3587886 Yes BOL0160
4 Spring Washer 1 941914 Yes BOL0161
5 Cam Set 1 3589908 Yes CAMSET0037
Cam 1 3589908 Yes CAM0037
Screw, Cam 1 3583605 Yes BOL0002
O-ring, Cam 1 3583614 Yes ORG0002
6 End cover 1 3587879 Yes COV0047
7 Gear 1 3161258 Yes GEA0021
8 Impeller Kit 1 21730348 Yes 7446K
Impeller 1 3819486 Yes 7446-01
O-ring, End Cover 1 3587885 Yes ORG0067
9 Mechanical Seal 1 3583609 Yes MCS0046
10 O-ring, Mounting (Inner) 1 925259 Yes ORG0059
11 O-ring, Mounting (Outer) 1 949735 Yes ORG0070
12 Pin, Wear Plate 1 888387 Yes PIN0001
13 Oil Seal 1 3587882 Yes RET0011
14 Shaft 1 21380884 Yes SHA0120
15 Snap Ring (Small) 1 812951 Yes SNP0005
16 Snap Ring (M-Seal) 1 809444 Yes SNP0006
17 Snap Ring (Large) 1 812953 Yes SNP0014
18 Washer 1 888388 Yes SPC0019
19 Wear Plate 1 807589 Yes WER0029
20 Service Kit - Minor 1 N/A Yes JSM0086
21 Service Kit - Major 1 N/A Yes JSK0106
