Volvo Penta D4 seawater pump 3584062 Replacement JPR-VP0040DA
Original price
$1,199.00 AUD
-
Original price
$1,199.00 AUD
Original price
$1,199.00 AUD
$1,199.00 AUD
-
$1,199.00 AUD
Current price
$1,199.00 AUD
JMP JPR-VP0040DA Replaces Volvo Penta 3584062 (D4 Series)
REPLACEMENT SEA WATER COOLING PUMP FOR VOLVO PENTA 3584062
REPLACES VOLVO PENTA 3584062
REPLACES JABSCO 50384-8000
ENGINE MODELS (D4 SERIES): D4-210, D4-225, D4-260, D4-300
FEATURES:
PLUG & PLAY REPLACEMENT
HEAVY DUTY PUMP BODY MARINE GRADE CASTING (BRONZE)
HEAVY DUTY END COVER MARINE GRADE CASTING (BRONZE)
MARINE GRADE SHAFT (NON-MAGNETIC)
HEAVY DUTY CAM (BRONZE)
LONG LIFE FLEXIBLE IMPELLER
MECHANICAL SEAL
HEX HEAD SCREWS (END COVER)
END COVER O-RING
INLET & OUTLET HOSE PORTS
HEAVY DUTY MACHINED STEEL PULLEY
THREADED PLUG
FULLY COMPATIBLE TO OEM (PUMP & PARTS)
See link for product video - VP0040DA

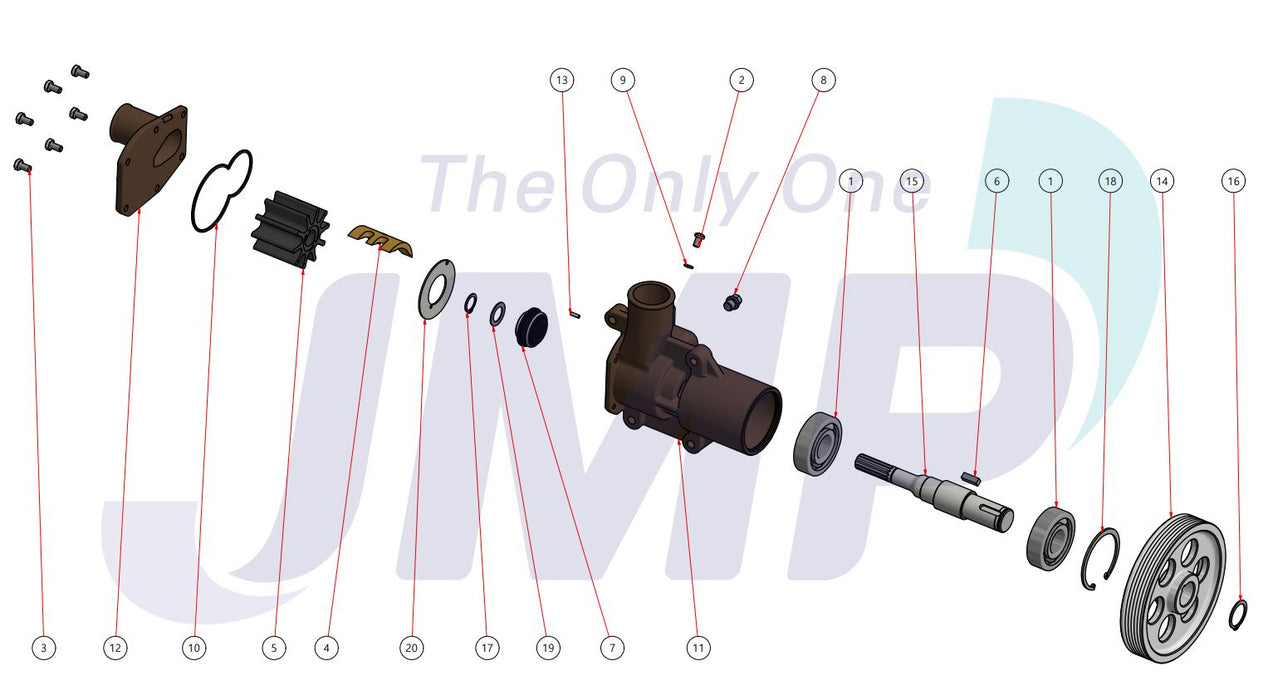

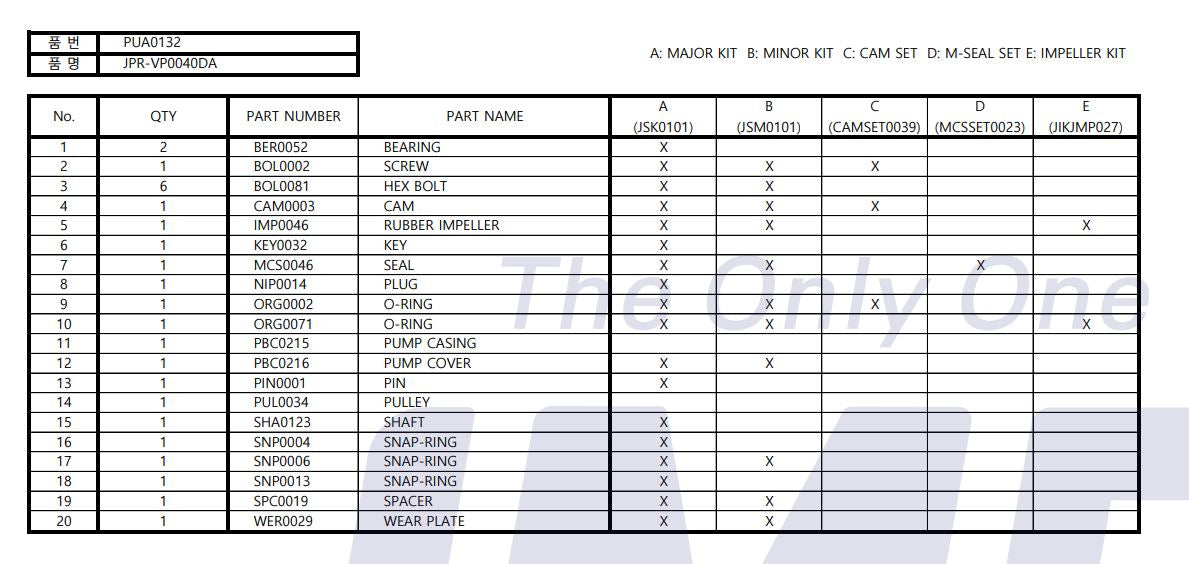

| NO. | JMP | VOLVO PENTA | DESCRIPTION | QTY | REMARK |
|---|---|---|---|---|---|
| 1 | JPR-VP0040DA | 3584062 | SEAWATER PUMP | 1 | |
| 2 | BER0052 | 21422639 | BALL BEARING | 2 | |
| 3 | BOL0081 | 3583612 | SCREW, END COVER | 6 | |
| 4 | CAMSET0039 | 3583612 | CAMSET | 1 | |
| 5 | 7426K | 3588475 | IMPELLER | 1 | |
| 6 | ORG0071 | 3583611 | O-RING, END COVER | 1 | |
| 7 | KEY0032 | 888386 | KEY, WOODRUFF | 1 | |
| 8 | MCSSET0023 | 3583609 | MECHANICAL SEAL SET | 1 | |
| 9 | PBC0216 | 3583613 | END COVER | 1 | |
| 10 | SHA0123 | 21418999 | SHAFT | 1 | |
| 11 | SNP0004 | 804709 | SNAP RING, PULLEY | 1 | |
| 12 | SNP0006 | 809444 | SNAP RING, MECH SEAL | 1 | |
| 13 | SNP0013 | 21422641 | SNAP RING (LARGE) | 1 | |
| 14 | SPC0019 | 888388 | SHIM, MECHANICAL SEAL | 1 | |
| 15 | WER0029 | 807589 | WEAR PLATE | 1 | |
| 16 | JSM0101 | N/A | MINOR KIT | 1 | |
| 17 | JSK0101 | N/A | MAJOR KIT | 1 | ALL INTERNAL PARTS |
