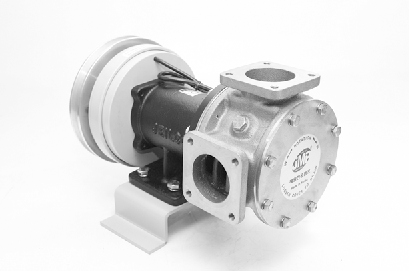

JMP JPR-M65LF

This is a non-OEM, aftermarket pump JMP JPR-M65LF

Dimensions:
Inlet Outlet Size (LxWxH) Weight Notes
2-1/2" 2-1/2" 370 x 205 x 240 33.5kg

Pump Parts:
JMP OEM Desription Qty Notes
9100-01 Impeller 1
JSM0015 Minor Kit 1
JSK0016 Major Kit 1
BER0023 Bearing Drive 1
BER0023 Bearing Seal 1
BOL0006 Screw
CAMSET0009 Camset 1
COV0009 End Cover 1
ORG0012 Cover Gasket 1
KEY0008 Key 1
MCSSET0005 Seal 1
N/A Retainer Drive 1
N/A Retainer Seal 1
SHA0015 Shaft 1
SLI0004 Slinger 1
SNP0019 Snap Ring Seal 1
SNP0016 Snap Ring Drive 1
WER0005 Wear Plate 1
Clutch / Drive 1
