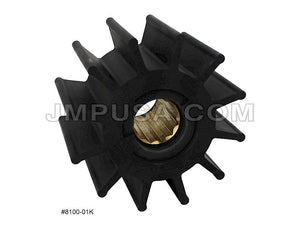

JMP 8100-01K Impeller (Johnson 09-819B) JMP Marine Flexible Impeller Kit

JMP Marine Flexible Impeller Kit #8100-01K

Kit Includes:
8100-01 (Impeller) QTY:1
GAK000701 (Gasket) QTY:1
GAK0007 (Gasket) QTY:1
ORG0015 (O-Ring) QTY:1
Lubricant

Replacement / Equivalent To:
Ancor 2038 J050035
Caterpillar 5L6042, 5N9360, 1W9046
CEF 500135
Detroit Diesel 5193553, 5196628, 8924838
Jabsco 17935-0001
Johnson 09-819B
Onan 500135
Perkins 7054
Volvo Penta 807904, 825942, 875660, 875736, 857636-1, 877066, 21730344, 21951362
*Note: Early TMD Series models from Volvo Penta uses Impeller #8000-01K (9 bladed impeller) due to the lower engine speeds; if this is the case for your engine model please use impeller #8000-01K. Impeller #8100-01K (12 bladed impeller) is needed for high speed Volvo Penta engine models.

JMP Marine Pump(s) Using This Impeller:
JPR-CT3306 (Caterpillar Replacement)
JPR-G6100 (Detroit Diesel Replacement)
JPR-V2000 (Volvo Penta Replacement)

Impeller Dimensions & Specs:
A (Impeller Dia) 95mm
B (Impeller Width) 63mm
C (Shaft Dia) 25mm
No. of Blades: 12
Shaft Type: Spline Drive(12)
