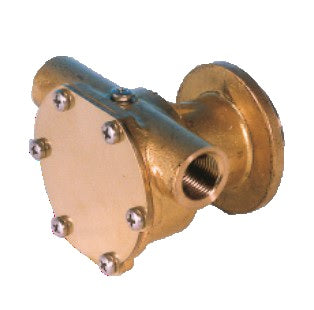

Paguro 6000-18000 / Lombardini Seawater Pump Replacement Ancor 4393 F4B-9, 10-35098-04

Paguro 6000-18000 / Lombardini Seawater Pump Replacement Ancor 4393 F4B-9, 10-35098-04

by ANCOR Marine Products (Made In Italy)

SKU: AN 4393

$580.80 AUD - $580.80 AUD
$580.80 AUD
$580.80 AUD - $580.80 AUD
$580.80 AUD

Hand Crafted In Italy, Since 1960

Description:

Replacement for Johnson raw water pump F4B-9, 10-35098-04, suits:

Paguro 6000-18000

LOMBARDINI 502 /702 / 903*

*Used on some of the Lombardini models LDW 502 / 702 with impeller insert / shaft diameter 12.1 mm.

For a similar pump with shaft size 12.7mm, use ANCOR pump AN 2026

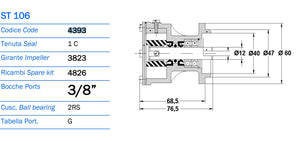

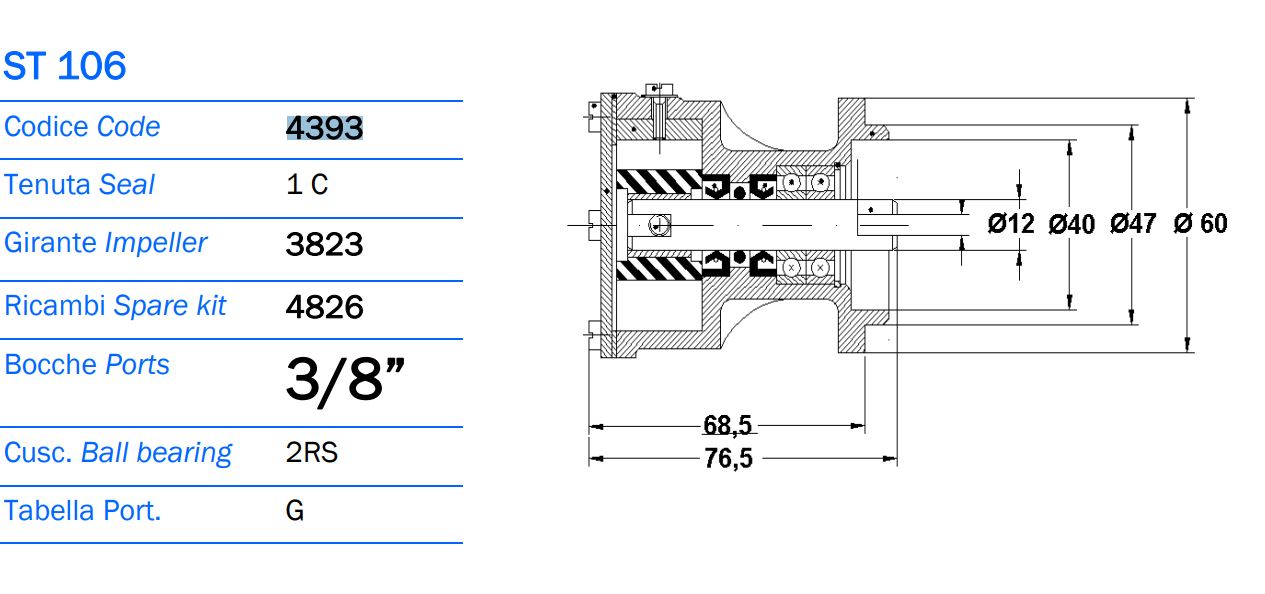

This is an Ancor marine pump AN 4393 (ST 106)

R. Kit

Impeller

Cover

Shaft

Wear Plate

Cam

Lip Seal



3823

2380





2381

2371



Cov Gasket

Screw

Cam Screw

Bearing

Circlip

Circlip



2521

233(6)

5396

2402 (2)

2470
