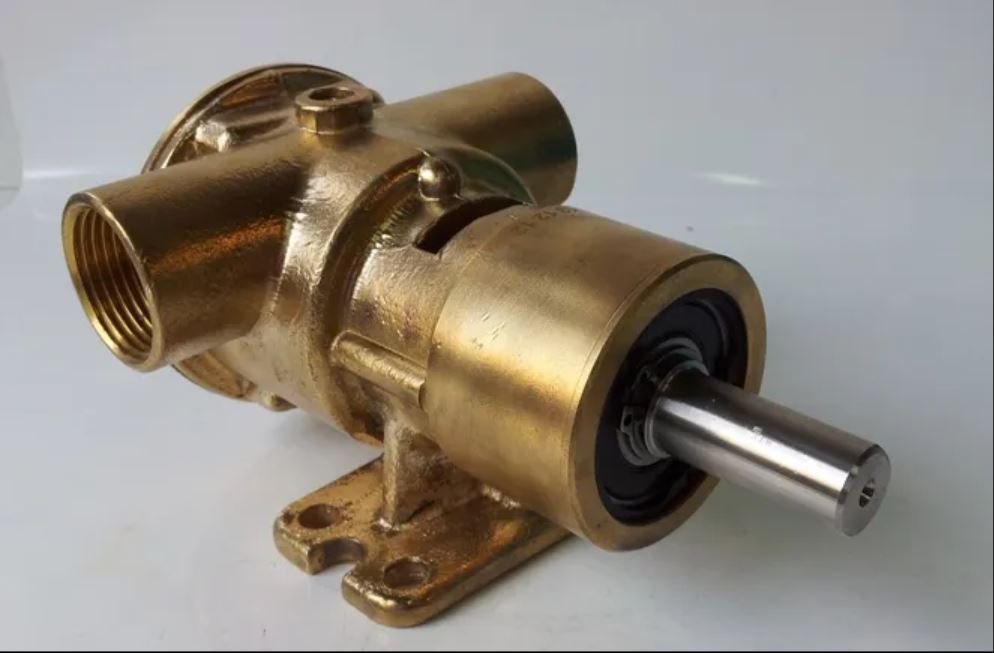

Ancor 3190 Pedestal Pump 1" PM36S Similar to Johnson F7B-8, 10-24572-01

Ancor Seawater Pump AN 3190 - PM36S

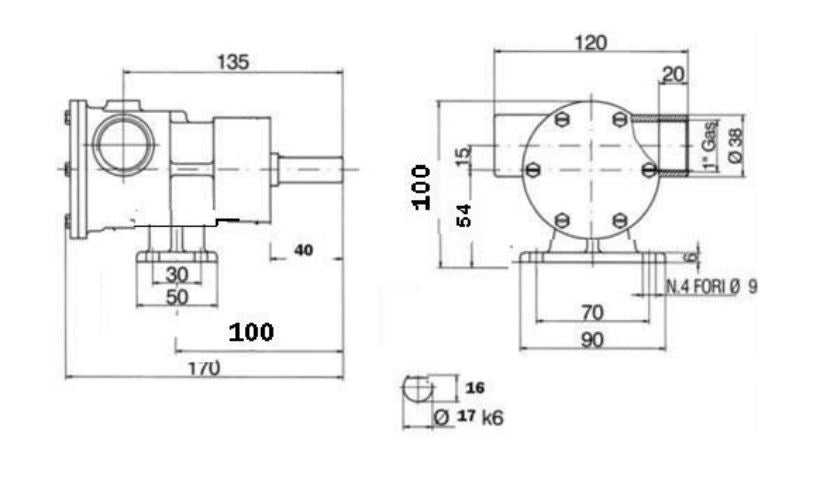

Pedestal Pump. 1" Threaded Ports. 17mm shaft (pulley side), single flat.

Replaces Johnson Pump F7B 8 10-24572-1

Note the Ancor pump has a slightly higher profile (base to hose connection 70mm vs 50mm on Johnson pump).

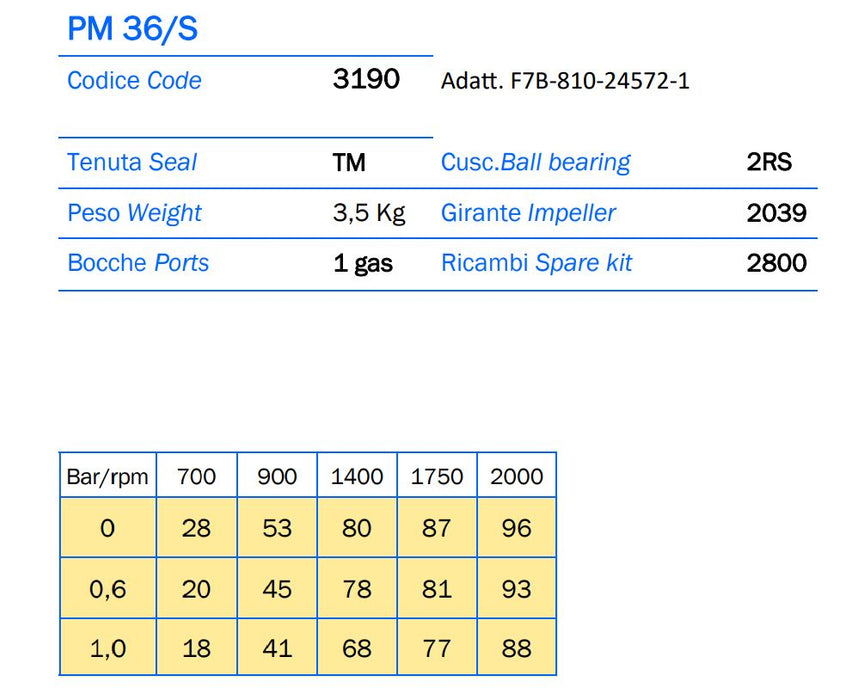

This is an Ancor Marine Pump AN 3190 (PM36/S)

Parts List below is for the ANCOR pump only. Not all are interchangeable with the parts in the Johnson pump.:

Pos Description Johnson Number ANCOR Part
Included
 Kit
Seawater Pump 10-24572-1
AN 3190
Repair Kit (Minor) AN 2800
1
Cover Screw (6)

AN 1141
2
End Cover
01-42441 AN 2408
3
Cover Gasket
2363 In Impeller Kit
4
Impeller Kit
09-1028B
AN 2039
5
Wear Plate
01-42443 AN 2413
6
Pump Body



7 Cam
01-42679 AN 2411
8 Cam Screw

AN 5395
9 Screw (3)
X3003-178F

12
Lip Seal

AN 244
14 Mechanical Seal
AN 2409
15 Shaft
AN 1039
16 Circlip

AN 2417
Circlip  AN 3931
Circlip  AN 252
17 Bearing (2)
AN 2450
