AN 2038 Replaces-Jabsco 836-0001/ Johnson 09-1029B

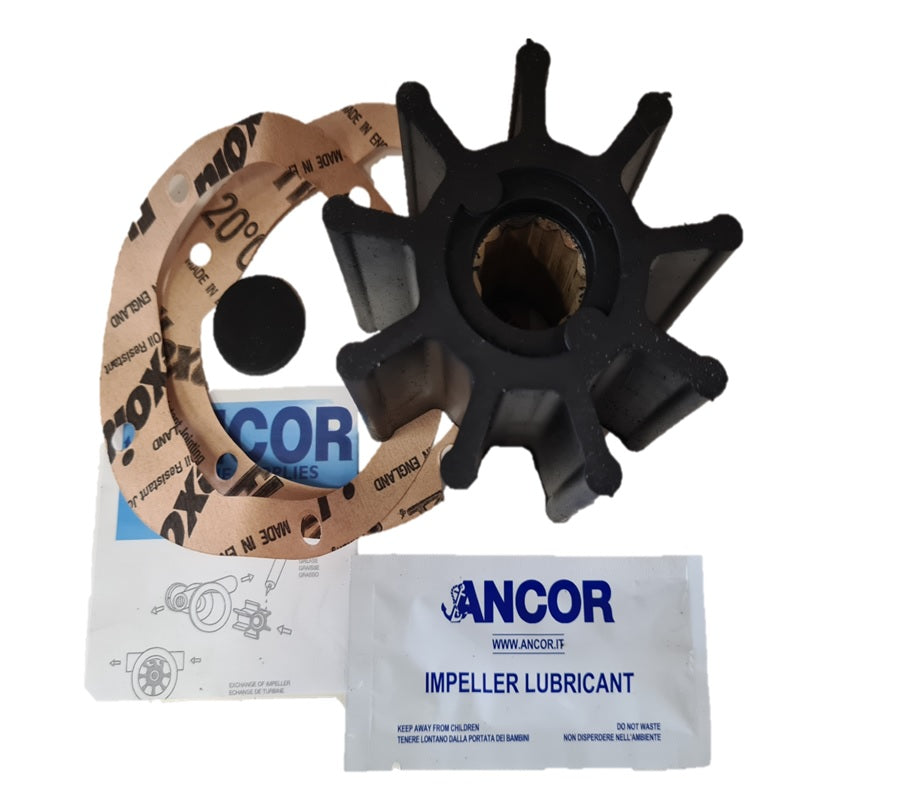

Impeller Johnson 09-1029 B, Jabsco 836-0001 replacement by Ancor of Italy.

Impeller Specifications

‘(A) Diameter in mm - 95

‘(B) Depth (Blade length) mm – 63

Number of Blades – 9

‘(D) Shafts insert Diameter mm – 25

Shaft type – 4

Impeller Rubber Material - Neoprene

Replaces Johnson Impeller 09-1029B

Replaces Jabsco Impeller 836-0001, 836-0001B

Replaces Vetus IMP00901

Used on Volvo Penta 40/61/63/71/72 (with 9 blades, later TAMD used 12 blade AN 2053).

Replaces Volvo Penta 875736, 825942

Detroit Diesel 5193553 ; Vetus IMP 00901 ; Caterpillar 1L4774; Oberdorfer 7054

Used on Cummins 160596 162209 V903 VT903 Seawater Pump
