2"x 3" Cast 316 Stainless Steel Exhaust Mixing Elbow Kit

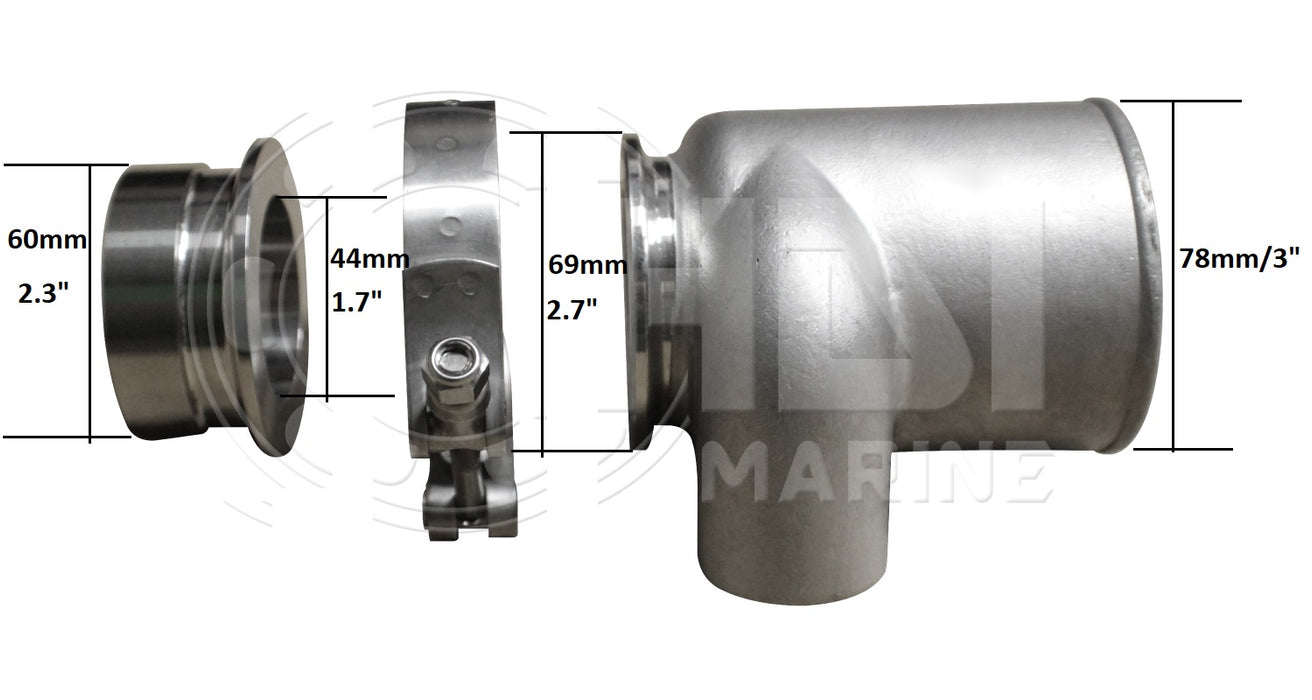

2" Flange and 3" Exhaust Outlet in Cast 316 Stainless Steel.

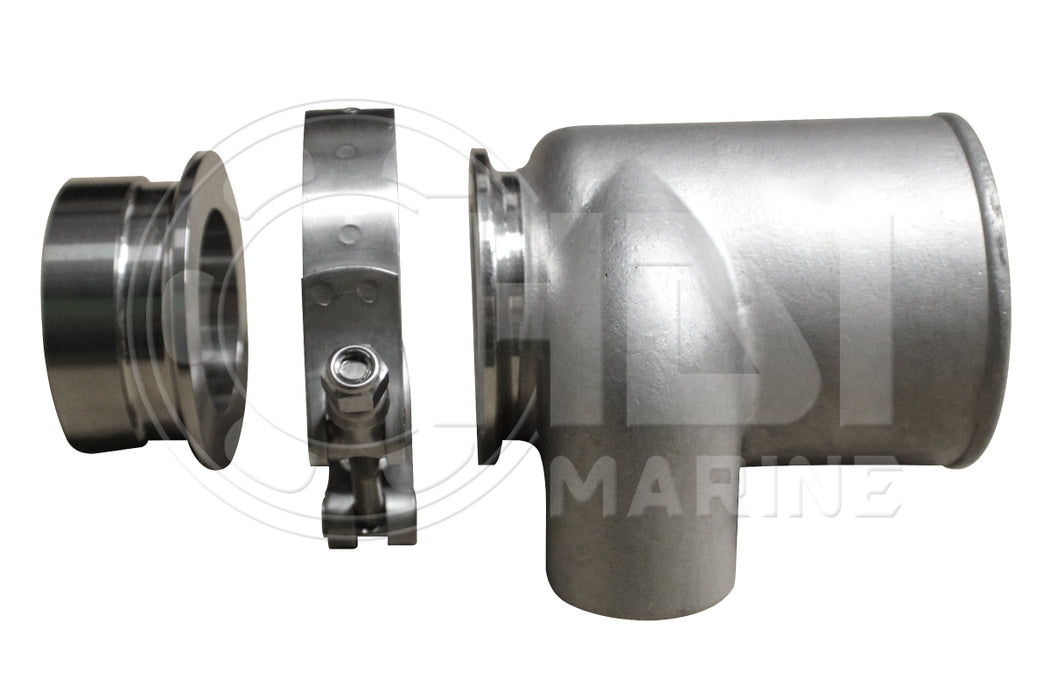

Straight mixing kit includes mixing elbow, weldable, stainless steel flange and stainless v-band clamp. Flange is designed to be welded to stainless tube.

  • This HDI Marine straight mixing elbow (SM2) is universally used for custom exhaust and is a great substitution for a fabricated mixing elbow. This allows you to separate the elbow for maintenance/cleaning unlike a welded in place mixer.
  • Precision CNC machined, investment cast 316 stainless steel
  • NPT thread for a 1” (25.4mm) OD water connector (not included)
  • Tube size to be used is 2” (50mm)
  • 3” (76mm) OD discharge diameter
  • Product weighs 3.5 lbs (1.6kg)
  • Shipping weight is 5 lbs (2.26kg)

This is a HDI Marine Part HDI SM2-3.
