Yanmar Spare Parts - Yanmar 3YM30
Aftermarket Parts for Yanmar 3YM30 Marine Engines.
Stocked and shipped from the Gold Coast, Australia.
| Spare Part | Yanmar / Notes | Aftermarket Part |
|---|---|---|
| FILTERS: | ||
| Oil Filter | REC 119305-35151 | |
| Fuel Filter | REC 104500-55710 | |
| Air Filter | REC 128270-12540 | |
| Primary Fuel Filter | (optional, varies on installation) | REC 1140639 |
| Primary Filter Element | (optional, varies on installation) | REC 3581078 |
| COOLING SYSTEM: | ||
| Seawater Pump |
128397-42500 |
1) AN 4948 (without pulley, threaded ports) 2) JPR-YM081H (with pulley, fixed 17mm hose connections) |
| Repair Kit for Yanmar Pump | Pump Repair Kit | |
| Impeller | 128990-42200 | AN 2522 |
| EXHAUST SYSTEM: | HDI CAST 316 PARTS | |
| Exhaust Mixing Elbow | 128890-13530, 128397-13530 | HDI GMS |
|
Exhaust Riser (Optional) Exhaust Elbow Bend Exhaust Elbow Bend (U-TYPE) |
124070-13520 128370-13600 128370-13610 128990-13610 / 128992-13610 |
|
| Exhaust Riser 7" Extension | HDI 7" OAL Riser | |
| Exhaust Riser 9" Extension | HDI 9" OAL Riser | |
| Exhaust Gaskets | 104214-13580 | HDI G-GML |
| BELTS & ELECTRICAL: | ||
| Belt (Hitachi 60A & 80A upto S#E20547 )Alternator |
|
|
| Belt (w pump) S# up to E01732 | 128990-77350 | |
| Belt (w pump) S# fm E01733 | 104511-78780E | |
| Alternator (60A Hitachi) Optional | 128271-77200 | LPAH151 |
| Alternator (80A Hitachi) to E20847 | 119573-77201 |
PH300-0002/AH59 |
| Starter Motor (11 tooth) | 129242-77010 129608-77010 129698-77010 | REC PH140-0009 |
| ENGINE MOUNTS: | ||
| Engine Mounts | 124772-08341 | REC GS38108 |
Aftermarket & Original Parts. See Product Description.
Yanmar Oil Filter 119305-35170 Replacement REC 119305-35151
$13.20 AUD: Incl GST
$12.00 AUD: Int'l Buyers
$21.60 AUD
Yanmar Oil Filter 119305-35170, 119305-35151 Replacement Oil Filter, Suitable for Yanmar 1GM, 2GM/3GM, 2GMF/3GMF,1GM10,2GM20/3GM30,2GM20F/3GM30F,2GM20-YEU,2GM20F-YEU,3GTM30-YEU,3GM30F-YEU3JH2E,3JH2-TE,3JH3-YEU,3JH4E,2QM15,2YM15,3YM20(C), 3YM30(C) Replaces Yanmar: 119305-35150, 119305-35151, 119305-35151-12, 119660-35150, 124450-35100; Westerbeke: 036918, 030220 Replaces Kohler GM46475, 252834 This is a...
Yanmar Fuel Filter 104500-55710 Replacement Part
$11.00 AUD: Incl GST
$10.00 AUD: Int'l Buyers
Yanmar Fuel Filter 104500-55710 (Atermarket)Fuel Filter suits Yanmar 1GM, 2GM/3GM, 2GMF/3GMF, 1GM10, 2GM20/3GM30, 2GM20-YEU, 2GM20F/3GM30F, 2GM20F-YEU, 2QM15, 2QM20/3QM30, 2YM15, 3YM20, 3YM30, 3GTM30-YEU, 3GM30F-YEU, 3HM, 3HMF, 3HM35, 3HM35UF, 6LY3-UTP/STP/ETP, SB8, SB12, YSB8,...
Yanmar GM Air Intake Filter Element 128270-12540 Replacement
$38.50 AUD: Incl GST
$35.00 AUD: Int'l Buyers
$48.00 AUD
Yanmar GM Air Filter replacement part 128270-12540 (128377-12530). Air intake silencer element for Yanmar 2GM(F) / 3GM(F), 3GMD, 2GM20(F) / 3GM30(F)(YEU). This is a non-OEM part no REC 128270-12540
REC 1140639 Primary Fuel Filter Replaces CAV296, DELPHI HDF296, FF167, Baldwin BF82535
$59.40 AUD: Incl GST
$54.00 AUD: Int'l Buyers
$60.00 AUD
REC 1140639 Primary Fuel Filter Assembly. Replaces CAV 296, DELPHI HDF 296, FF 167 Primary Fuel Filter suits Diesel Engines up to 130 HP. Complete Diesel Fuel Filter Assy. Replacement Element,...
Volvo Penta 3581078 Replacement Element CAV 296, DELPHI HDF 296, FF 147, Baldwin BF825
$9.90 AUD: Incl GST
$9.00 AUD: Int'l Buyers
Volvo Penta Replacement Element REC 3581078 Replaces CAV 296, DELPHI HDF 296, FF 167 , P557111Can Type, Primary Fuel Filter suits all Diesel Engines Complete Diesel Filter.Replaces: CAV 296, DELPHI...
Yanmar 2GM-3GM 2YM-3YM Seawater Pump 128990-42500 Replacement AN 4948
$632.50 AUD: Incl GST
$575.00 AUD: Int'l Buyers
This ANCOR marine pump replaces the Johnson 10-13337-01 / Yanmar 128990-42500 pumps. Replacement seawater pump for Yanmar engines: 2GM20-3GM30-YEU / 2 & 3YM series. Replacement seawater pump for Kohler 6.5Kw Diesel Generator...
Yanmar 2GM-3GM Seawater Pump Replacement JPR - YM08IH
$687.50 AUD: Incl GST
$625.00 AUD: Int'l Buyers
This replacement pump has built-in cam (4mm) and 17mm / 5/8" water hose. It is supplied complete with the pulley. Replaces Yanmar 128397-42500 & Yanmar 128377-42500 (2mm cam) / 121575-42000 &...
Yanmar 2GM 3GM & 2YM 3YM Seawater Pump Kit Replacements
$97.90 AUD: Incl GST
$89.00 AUD: Int'l Buyers
Yanmar 2GM 3GM & 2YM 3YM Seawater Pump Parts (Johnson type) Aftermarket parts to suit pump Johnson 10-24509 / 10-13337 ( F4B-903 ), Yanmar 128990-42500 (17mm hose) and 128990-42510 (17...
AN 2522 Replaces Johnson 09-810B/ F4B-9 /Jabsco 6530001/ Jabsco 18653-0001
$46.20 AUD: Incl GST
$42.00 AUD: Int'l Buyers
Impeller Johnson 09-810B / F4B-9,Jabsco 6530001, 18653-0001, replacement by Ancor of Italy. Impeller includes assorted Gaskets & O-ring Replaces Yanmar P/N X02173476 ( Yanmar Genuine O-ring cost AUD 11/- locally) Multi-Purchase...
Yanmar 128890-13530/ 128370-12530/128397-13530 SS Exhaust Elbow Replacement HDI GMS (17mm water inlet)
$385.00 AUD: Incl GST
$350.00 AUD: Int'l Buyers
Yanmar 128370-13530, 128397-13530 SS Exhaust Mixing Elbow Replacement HDI GMS Stainless Steel Mixing Elbow suits Yanmar 2YM15, 3YM20 / 3GM30 / 3YM30 ( SN:E10518 prior)Inlcudes Gasket that Replaces Yanmar 128370-13201Water Inlet Size:...
Yanmar Mixing Elbow 124070-13520 (128370-13600) Stainless Steel 316Replacement HDI GM
$396.00 AUD: Incl GST
$360.00 AUD: Int'l Buyers
Cast 316 Stainless Steel Exhaust Mixing Elbow for Yanmar 1GM, 2GM, 1GM10, 3GM30, 3HM, 3HM35F, 2GMF, 3HMF, 3GNF, 2GM20F, YSM12, 2QM,3QM Replaces Yanmar 104214-13521, 124070-13520, 128370-13600. Includes elbow joint (Yanmar 104214-13580). Sea Water Inlet...
Yanmar 128370-13610 Mixing Elbow Riser Kit Replacement HDI GMKIT
$748.00 AUD: Incl GST
$680.00 AUD: Int'l Buyers
Cast 316 Stainless Steel mixing elbow kit for Yanmar marine engines: 1GM / 2GM / 1GM10 / 3GM30 / 3HM / 3HM35F / 2GMF / 3HMF / 3GMF / 2GM20...
Yanmar Elbow Bend 128370-13610 Stainless Steel Replacement HDI GML
$352.00 AUD: Incl GST
$320.00 AUD: Int'l Buyers
Precision CNC machined investment cast 316 stainless steel exhaust bend for Yanmar marine engines:2GM, 3GM, 3GM30, 3GM30F, 3GMD, 3GMF, 3GMFH, 3YM30Replaces Yanmar 128370-13610 This exhaust bend is included in the...
Yanmar 128992-13610 Stainless Steel Exhaust Bend Elbow Replacement
$275.00 AUD: Incl GST
$250.00 AUD: Int'l Buyers
Yanmar 128992-13610 Stainless Steel Exhaust Bend Elbow ReplacementSuitable for Yanmar 2YM15, 3YM20, 3YM30Replaces Yanmar 128990-13610 / 128992-13610 Includes gasket that replaces Yanmar 128370-13201 Precision CNC machined investment cast 316 stainless...
Yanmar 7" Extension Riser Replacemet HDI 7" OAL Riser
$94.60 AUD: Incl GST
$86.00 AUD: Int'l Buyers
Yanmar 7" Stainless Steel Extension Riser Replacemet HDI 7" OAL RiserSuits for Yanmar Mixing Elbow Engine Models:1GM / 2GM / 3GM / 1GM10 / 2GM20 / 2GM30 / 2GM20F / 3GM30F...
Yanmar OAL 9″ Stainless Steel Exhaust Riser Replacement
$132.00 AUD: Incl GST
$120.00 AUD: Int'l Buyers
Yanmar OAL 9″ Stainless Steel Exhaust Riser ReplacementOAL 9″ Stainless Steel Exhaust RiserSuitable for Yanmar 1GM, 1GM10, 2GM, 2GM20, 2GM20F, 2GM30, 2GMF, 2QM15, 2QM20, 2YM15, 3GM, 3GM30, 3GM30F, 3GNF, 3HM,...
Yanmar 128370-13201 Gasket Replacement HDI G-GML
$9.90 AUD: Incl GST
$9.00 AUD: Int'l Buyers
Yanmar 128370-13201 Gasket Replacement for the Elbow 128370-13610Suitable for Yanmar 1GM, 1GM10, 2GM, 2GM20, 2GM20F, 2GM30, 2GMF, 2QM15, 2QM20, 2QM30, 2YM-15, 3GM10, 3GM30, 3GM30F, 3GMD, 3GNF, 3HM, 3HM35F, 3HMF, 3YM-20,...
Yanmar Belt 3YM20 129612-42290E (Replacement)
$27.50 AUD: Incl GST
$25.00 AUD: Int'l Buyers
Yanmar 3YM20 Belt 129612-42290 (Aftermarket)Belt suits Yanmar marine engines:2YM15, 3YM20This is a non-OEM, aftermarket part REC 129612-42290E
Yanmar Belt 2GM / 3GM3 Belt 104511-78780 Replacement
$22.00 AUD: Incl GST
$20.00 AUD: Int'l Buyers
Yanmar 2GM / 3GM Belt 104511-78780E (Aftermarket)Belt, water pump, suits Yanmar engines:2GM/3GM, 2GMF/3GMF, 2GM20-YEU, 2GM20F-YEU, 2GM20/3GM30, 2GM20F/3GM30F, 2QM15, 2YM15, 3GM30-YEU, 3GM30F-YEU, 3HM, 3HMF, 3HM35, 3HM35F. 3GMD.This is a non-OEM, aftermarket part REC 104511-78780E
Yanmar Alternator 12V/60Amps - 128271-77200 Replacement Part Yanmar 2/3YM & 3/4JH
$495.00 AUD: Incl GST
$450.00 AUD: Int'l Buyers
Yanmar Alternator 12v- 80 Amps 128271-77200 Replacement Part Suits: 12 VOLT 2YM15 from 04 on, 3JH3E, 3JH4E from 03 on, 3YM20 from 04 on, 4JH3-CE from 94 - 03, 4JH3-TCE...
Yanmar Alternator 12V/80Amps - 119573-77201 Replacement 6LY-2/3GM/YM
$440.00 AUD: Incl GST
$400.00 AUD: Int'l Buyers
Yanmar Alternator 12v- 80 Amps 119573-77201 Replacement Part Alternator will fit most engine models: 3GM, 2YM, 3YM, 3JH, 4JH, 4LH & 6LY Optional 80A alternator for Yanmar 4JH3E, 4JH3CE1 Replaces...
Yanmar Starter Motor (11 tooth) 129698-77010 Replacement REC PH140-0009
$429.00 AUD: Incl GST
$390.00 AUD: Int'l Buyers
Yanmar Starter Motor -11 tooth -129698-77010 Replacement REC PH140-0009 12V, 11 Tooth Starter Motor Suits Yanmar marine engines: 2YM15, 3YM20, 3YM30, 3QM, 3JH3, 3JH5E, 4JH3E, 4JH4E, 4JH4AE Replaces Yanmar 129242-77010 / 129608-77010...

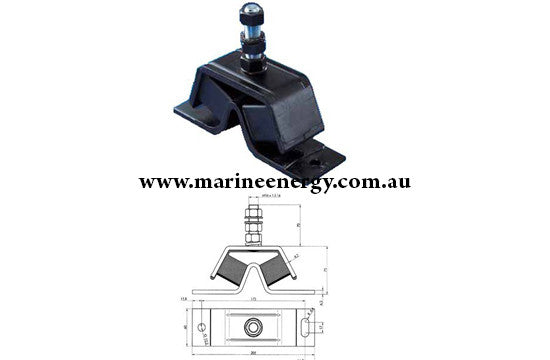

Yanmar Engine Mount 128377-08351 (100) Replacement GS38108
$275.00 AUD: Incl GST
$250.00 AUD: Int'l Buyers
Yanmar Engine Mount 124772-08341 100 Replacement GS38108 Replaces P/N 128377-08351 / 124772-08341 100kg Hardness 60SH Flexible Engine Mount100 Hardness "V" Engine Mount. M16 stud.Suits all Yanmar 2GM / 3GM (front)Suits...
