Volvo Penta DP-SM, SX-M Drive Aftermarket Parts

Aftermarket Parts for Volvo Penta DP-SM, SX-M Drives

They will also suit the OMC Cobra

SX: Single Propeller and Small transom cut-out. For petrol and D3 engines.

DPS: DuoProp and Small transom cut-out. For petrol and D3 engines.

Stocked and shipped from the Gold Coast, Australia.


OIL = 2.4L Synthetic Gear Oil API GL-5 SAE 75w/90 oil

Transom Shield & Gimbal Ring SX-M

No Spare Part Volvo / Notes Aftermarket Part
11 Bellows, Uni Joint 22197130 HJB-5672
12 Bellows, Exhaust 3850426 HJB-4701
6 Seal, Gimbal Bearing 3852548 REC 3852548

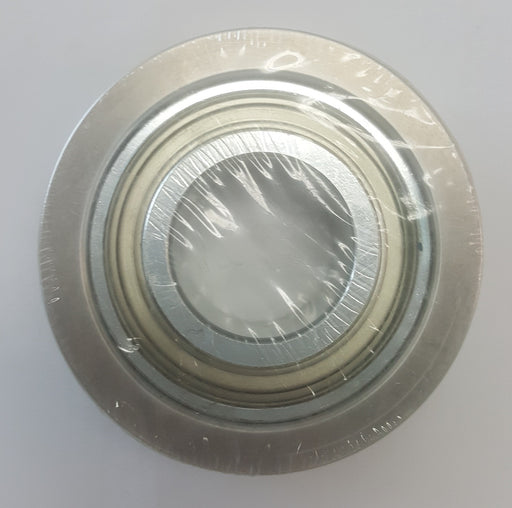

7 Gimbal Bearing 21752712 REC 30-879194A01
Anode (not shown) Only in later models with 2 anodes on gimbal housing REC 873395
10 Anode (transom) IN KIT - REC KITVSXAL
16 Seal Water Passage WA 3852560
Seal Kit 3852560 + 911851 REC 39631
17 Bushing H Frame
REC 3853423

U-Joint & Upper Gear Housing

No Spare Part Volvo / Notes Aftermarket Part
Oil, 75W-90

SX 2.1L

DP-S 2.4L

Penrite 75W-90

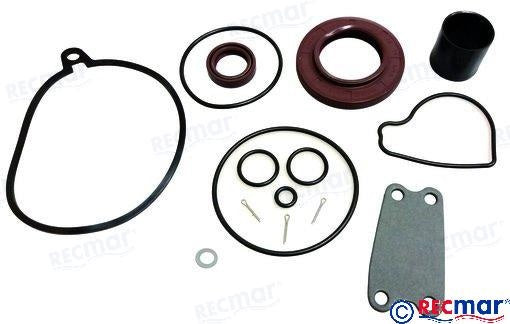

Seal Kit, Upper Unit 3850594 REC 3850594
01 Oil Seal, Dipstick 3852045
REC 3852045
05 Sliding Sleeve Clutch 3807613 SCP 3807613
11
Universal Joint Assembly 3860842 REC 3860842
12 Socket, U Joint 3850813 REC 393831
13a Universal Joint / Spider 3860232 ** c clips end of cap REC 3860232
13b Universal Joint / Spider 3850812  ** c clips internal REC 915716
16 Bearing Seal
3852272 *In Kit 3888917 REC 3852272
17 Roller Bearing 183247, 3850853 REC 3850853
19 Roller Bearing 3850852 REC 3850852
33 Oil Seal (double lip) 853868 REC 853868

Lower Unit Housing

No Spare Part Volvo / Notes Aftermarket Part
Seal Kit, Lower Unit SX-C, SX-C1, SX-C2, SX-R, SX-R1, SX-R2, SX-M, SX-S REC 3855275
Seal Kit, Lower Unit DPS-M REC 3856002
Anode Kit 3855411 & 3854130 REC KITVSXAL
8 Anode (lower housing) 3855411 REC 3855411 (IN KIT ABOVE)
21 Seal Kit, Prop Shaft 853808 REC 853808
27 Sealing Ring, Outer Prop Shaft 851407 REC 851407


Power Trim System
No Spare Part Volvo / Notes Aftermarket Part

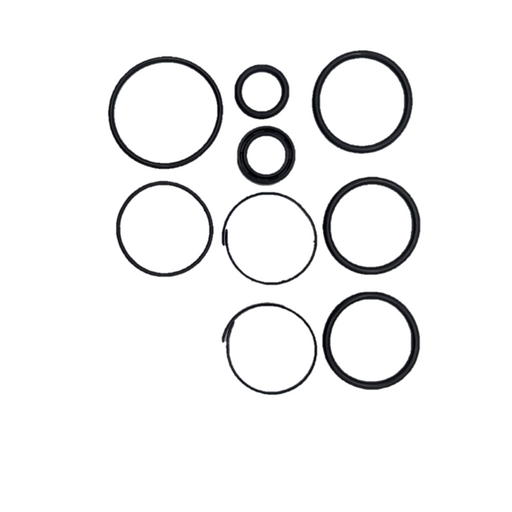

Trim Cylinder Repair Kit REC 3854247
Pivot Pin Cap 2 per pin REC 3857522
E-Circlip 2 per cylinder REC 3857521
Bushing Cylinder to Pivot Pin REC 3853423
Trim Pump - Early Type Fine Thread
REC 3857265
Trim Pump - Late Type Coarse Thread REC 3587079
Trim Reservoir - Early Type 3861570 REC 3861570
Trim Reservoir - Late Type 3858077 REC 3858077
Hose, Trim Cylinder Port REC 3857523
Hose, Trim Cyinder Port REC 3853857

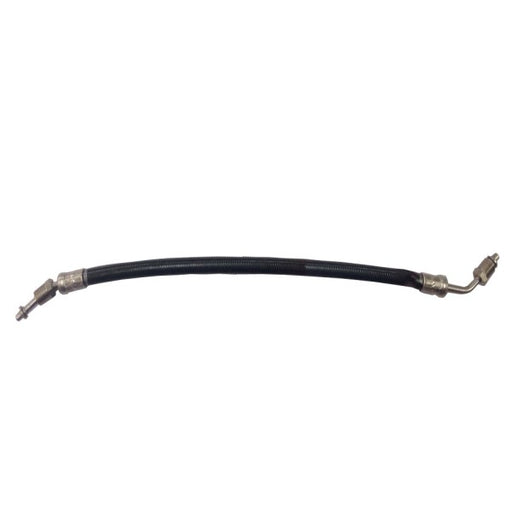

Hose, Trim Cylinder Starboard, DOWN WA 3857524
Hose, Trim Cylinder Starboard, UP WA 3853855
