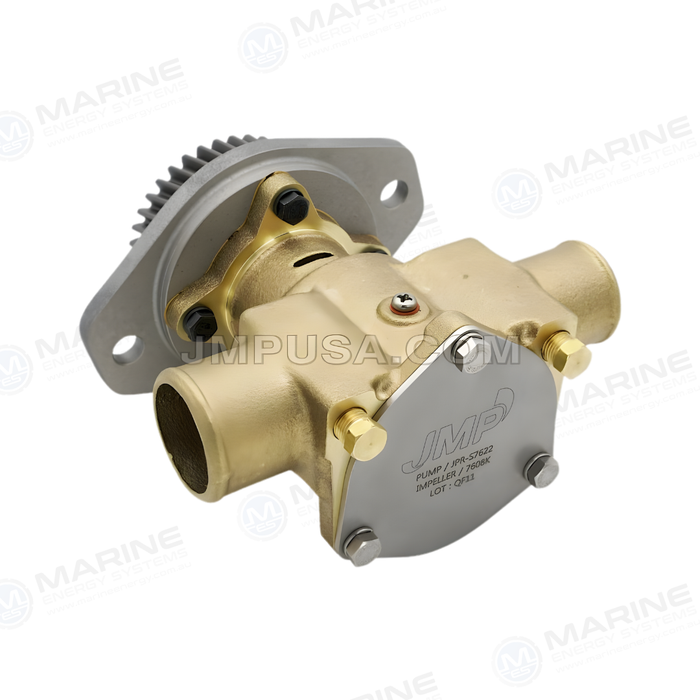

Cummins 6BT 5.9 / 6CTA 8.3 Seawater Pump P1722 16° OFFSET JPM JPR-S7622

Replacement raw water pump for Cummins 6BT engines with Sherwood P1722 pump.

Water connections: 2" inlet  & 1-3/4" outlet ports.

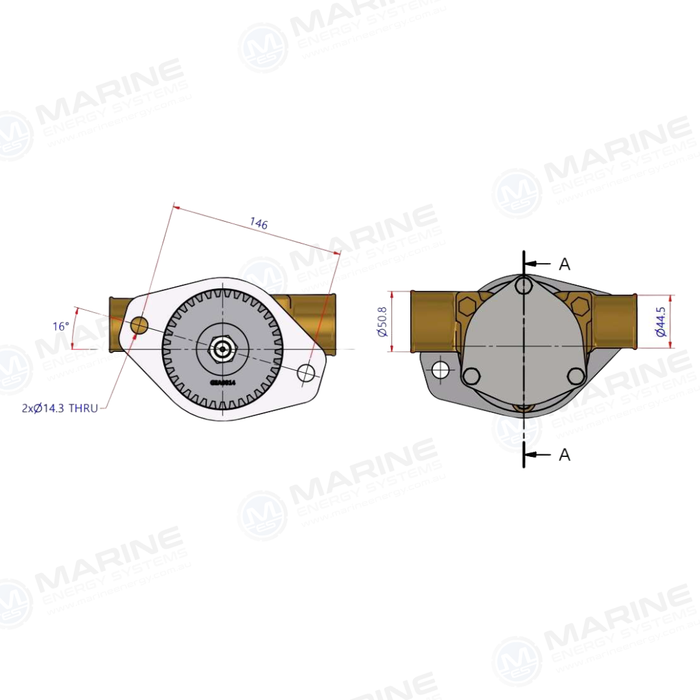

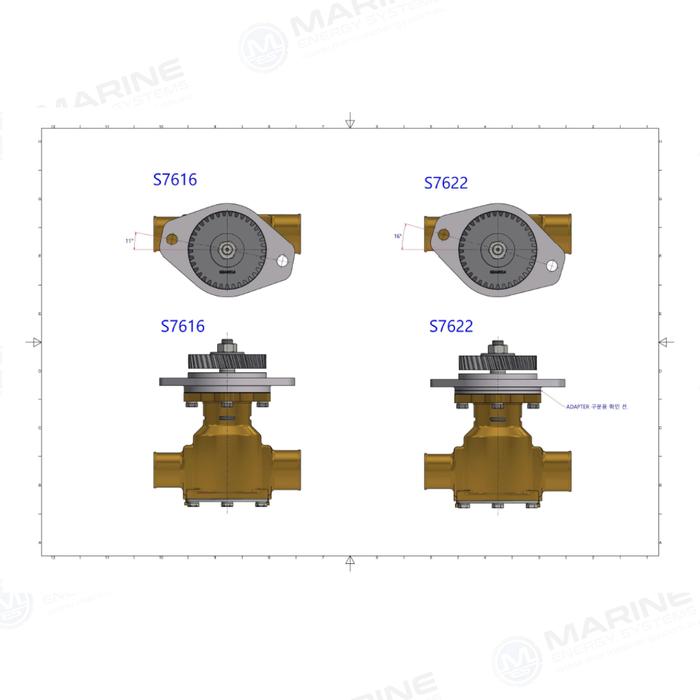

The mounting angle of pump and flange is offset 16° as shown in the pump schematic images. (For P1716 11° OFFSET use JPM JPR-S7616)

Replaces Sherwood 1722 series pumps. Replaces Cummins pump number 3912139.

This is a JMP marine pump JPR-S7622.

Parts not internally compatible with OEM Sherwood pump (Re-Engineered for better quality & performance)

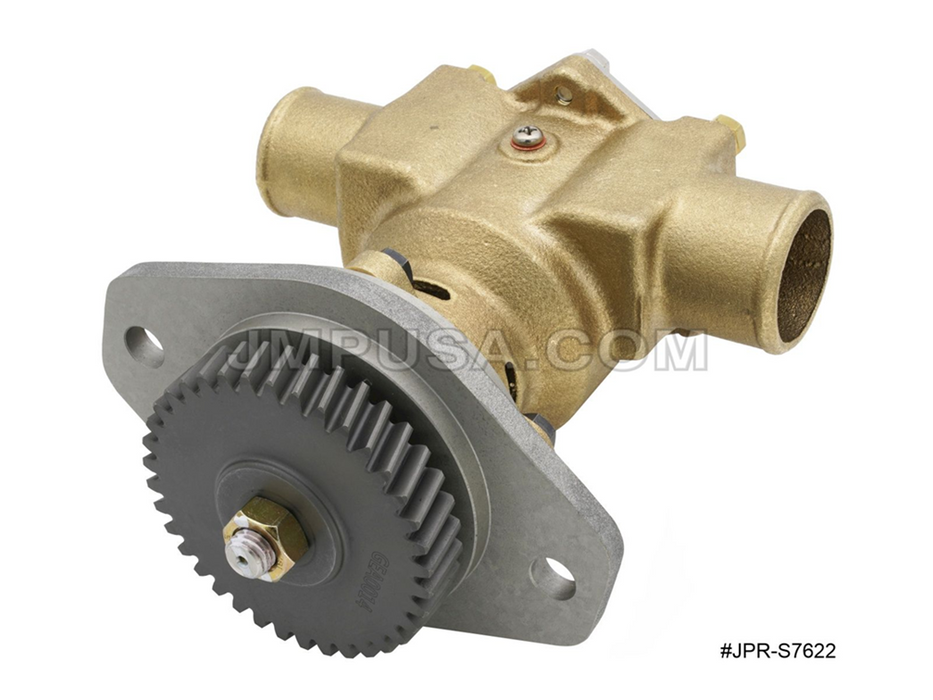

Includes drive gear. Mounting gasket 3008400 not included.

Replacement impeller Sherwood 27000 / JMP 7608K

Major Rebuild Kit Refer - JSK0067

Minor Repair Kit refer - JSM0002

Mechanical Seal refer - MCSSET0014
