Fischer Panda Seawater Pump Ancor 5387 Replaces Johnson 10-35127-3

$528.00 AUD : Incl GST

Ancor 5387 Replaces Johnson FB4-9 Fischer Panda

Seawater pump to replace, Johnson pump F4B-9 10-35127-3 used on Fischer Pandas.

The pump is a straight swap out but is not internally identical to the Fischer Panda pump.

3/8" Threaded Ports.

Replaces Fischer Panda 060-068-0-0-B.

Used on Fischer Panda 6000 ND PMS Kubota, Fischer Panda 8000 NE PMS Kubota, Fischer Panda 9000 ND PMS Kubota / Fischer Panda 10000i.

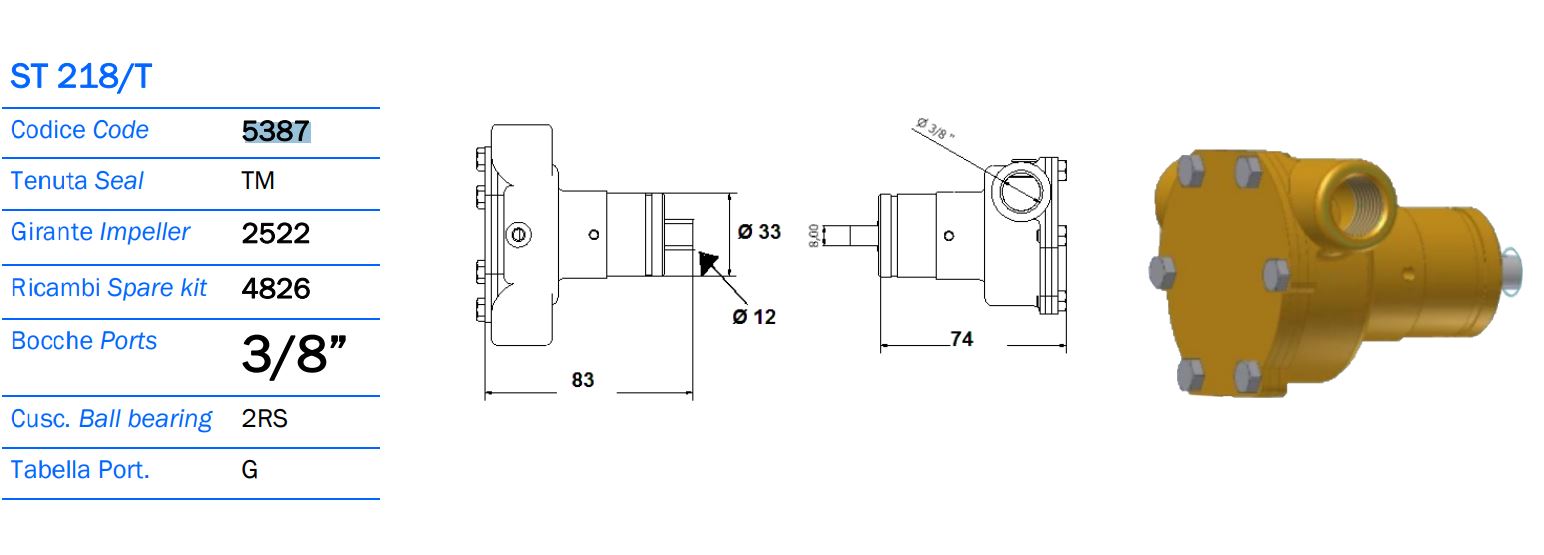

This is an Ancor of Italy pump AN 5387 ST218/T

Pump Parts -

Pos	Description	Johnson Number	Compatible with Original	ANCOR Number
	Minor Kit		x	AN 4826
1	Body	01-35099-2	x
2	Shaft	01-45353	x	AN 5393
3	IMPELLER	08-810B	✔	AN 2522
4	Cam	01-42389	✔	AN 2651
5	End Cover	01-45282	✔	AN 2380
6	Gasket, End Cover	01-45284	✔	AN 2521 included with impeller
7	Screw (Cam)	01-46794-03	x	AN 4838
9	Screw (End cover)	0.0279.501	x	AN 233
10	Seal, Oil - Lip Seal	0.2233.010	✔	AN 2371
	Seal, Water - Mechanical			AN 5860
11	Circlip	0.0371.028		2470 & 5119
12	Bearings	0.3431.441	✔	6001 x 2
13	O-Ring (slinger)	01-42400
15	O-Ring (mounting)	0.2173.473	49.6X2.4 SS1586 NBR70
16	Shaft	01-35771		SHA0130
17	Snap-ring	0.0370.525	✔	SNP0008
18	Snap-ring	0.0371.052		SNP0011
19	Wearplate
