Yanmar 6AYM Seawater Pump 748660-42014-A Replacement Pump DJ-Y18001-A

$5,500.00 AUD : Incl GST

Replacement seawater pump 748660-42014-A for Yanmar 6AYM marine engines.

Replaces Yanmar raw water pumps 748660-42014-A, 748660-42012 & 748660-42013.

Bronze body, stainless steel shaft and with Ports 2-1/2" (65mm). Weight 24Kg / Including Gear 26Kg. The gear is included with this pump.

This is an aftermarket pump DJ Pump DJ Y18001-A

Parts are interchangeable with Yanmar pump.

Major Rebuild Kit - DJ Y18001-MJK

Minor Service Kit - DJ Y18001-MNK

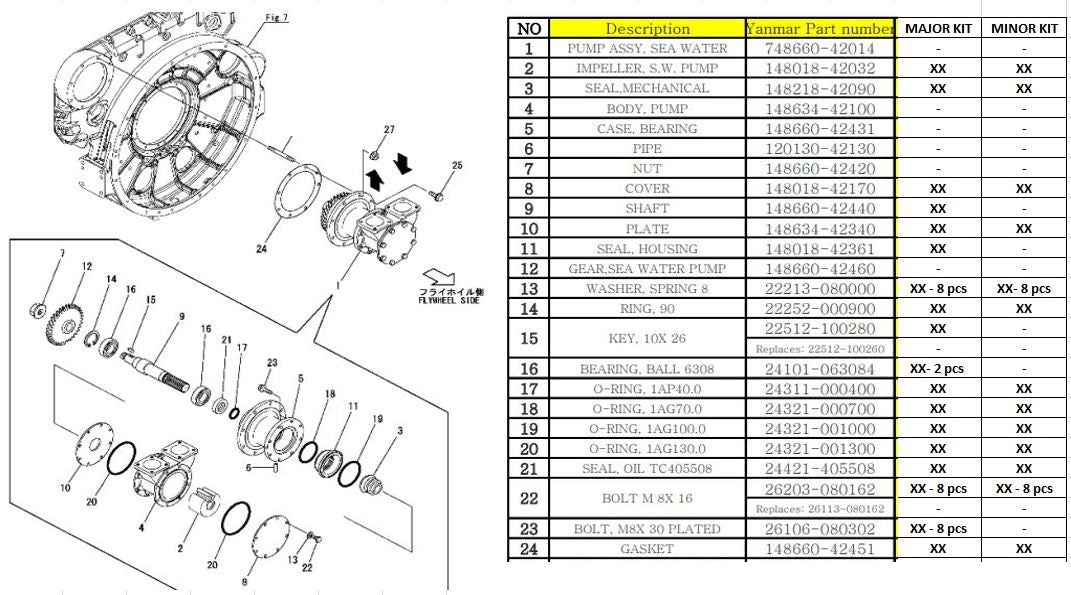

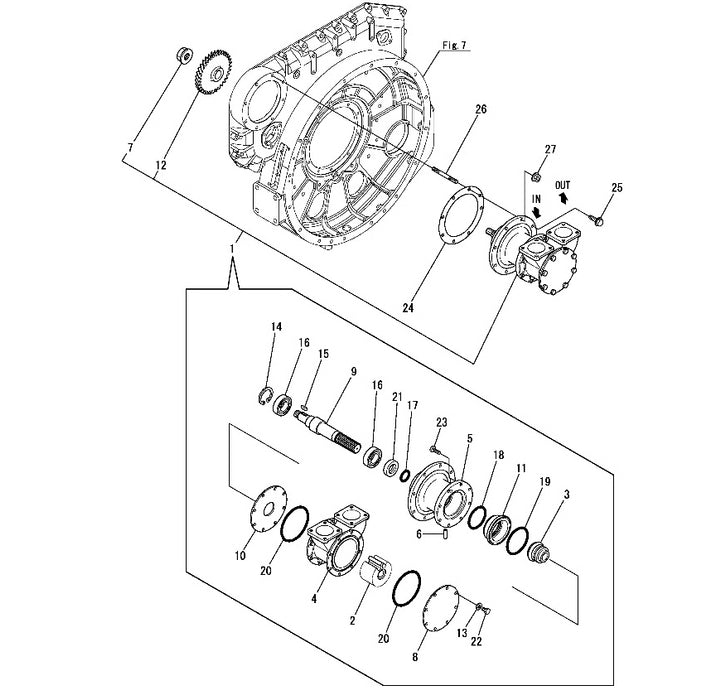

Pos	Description	Yanmar Number	DJ Part / Replacement Part	Notes
	Seawater Pump	748660-42014
1	Impeller	148018-42032	DJ-08-18-1301	JMP 9136
2	Seal, Mechanical	148218-42090	DJ-MS038
8	Cover Plate	148018-42170
9	Shaft	148660-42440
10	Plate	148634-42340
11	Seal, Housing	148018-42361
12	Gear	148660-42460
15	Key	22512-100280		10x26
16	Bearing	24101-063084		6308
21	Oil Seal	24421-405508		TC405508
24	Gasket, Mounting	148660-42451
