Onan MDKBR, MDKBS, MDKBP Marine Diesel Service Parts

Aftermarket Parts for Onan 13.5KW MDKBP, 17.5/21.5KW MDKBR & MDKBS.

Stocked and shipped from the Gold Coast, Australia.

4 Cylinder Engine. Oil Capacity: 7.6L. Coolant Capacity 7.6L.

Manuals: MDKBP Specification Sheet / MDKBR Specification Sheet /

Spare Part Onan / Notes Aftermarket Part
FILTERS
Oil Filter 122-0810 LP 122-0810
Fuel Filter 149-2106, A026K278 LP 149-2106 (With Drain)
149-2106, A026K278 FF5091 (No Drain)
OIL: 7.6L SAE15W40 OILS PAGE
SAE 15W40

MDKBP/R 7.6L


COOLING SYSTEM:
COOLANT

MDKBP/R 7.6L



 COOLANTS PAGE
Impeller 132-0348

AN 2047

JMP 7300
Seawater Pump 132-0356 JPR-SG1010
Switch, Water Pressure 0309-0717
 LP 0309-0717
Exhaust elbow 154-3163 HDI PRV

Heat  Exchanger

MDKBP, MDKBR

130-5006-02

 MEC 130-4433

Heat Exchanger

MDKBS

130-5007-02
Zinc Anode 130-4434 MEZ 9-071
Anode with plug 130-4434 MEZ 9-125
BELTS:
V Belt, Alternator 185-7055 LP 11A1040
ELECTRICAL:
Fuel Lift Pump 149-2646 LP 0149-2646
Starter Motor 191-1959

Filters

$
$
$25.30 AUD - $25.30 AUD
$25.30 AUD
$25.30 AUD - $25.30 AUD
$25.30 AUD

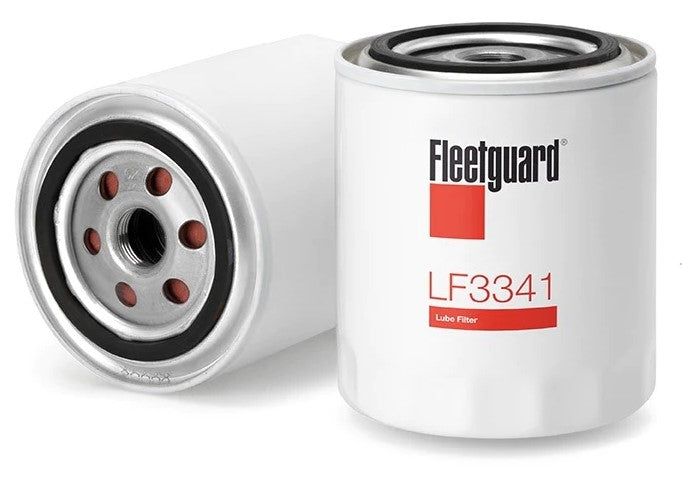

Onan MDKBR, MDKBS, MDKBP, MDKAD, MDKAE, MDKAF Oil Filter 0122-0810 LF3341

Fleetguard

Onan Oil Filter MDKBR, MDKBS, MDKBP, MDKAD,MDKAE, MDKAF 122-0810 Replacement Oil filter to suit Onan MDKBR, MDKBS, MDKBP. Onan oil filter 122-0810 ...

View full details
$25.30 AUD - $25.30 AUD
$25.30 AUD
$25.30 AUD - $25.30 AUD
$25.30 AUD
$93.50 AUD - $93.50 AUD
$93.50 AUD
$93.50 AUD - $93.50 AUD
$93.50 AUD

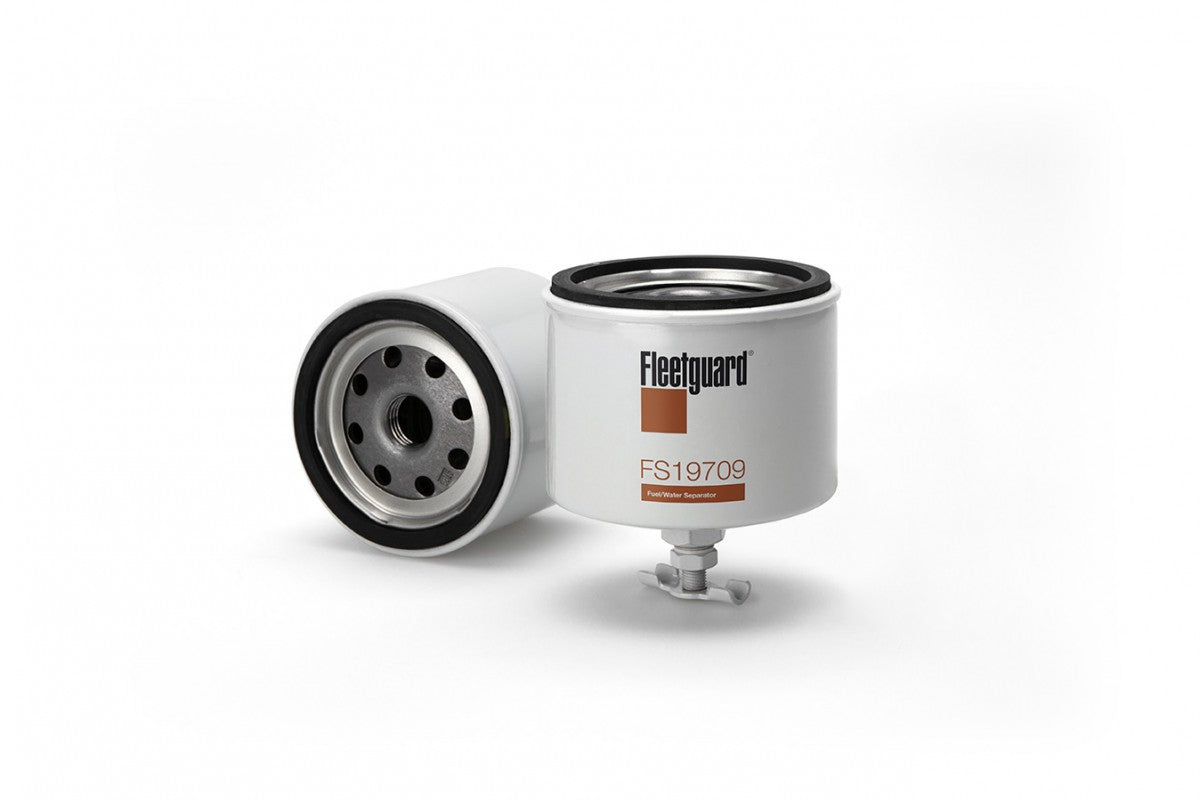

Onan Fuel Filter 149-2106 (WITH DRAIN) A026K278 Replacement FS19709

Fleetguard

Fuel filter to suit Onan MDKBJ, MDKBW, MDKAF, MDKBK. Replaces Onan 149-2106, A026K278, Cummins 15026. Note, this is a 2 micron filter with drain - ...

View full details
$93.50 AUD - $93.50 AUD
$93.50 AUD
$93.50 AUD - $93.50 AUD
$93.50 AUD
$32.00 AUD - $32.00 AUD
$32.00 AUD
$32.00 AUD - $32.00 AUD
$32.00 AUD

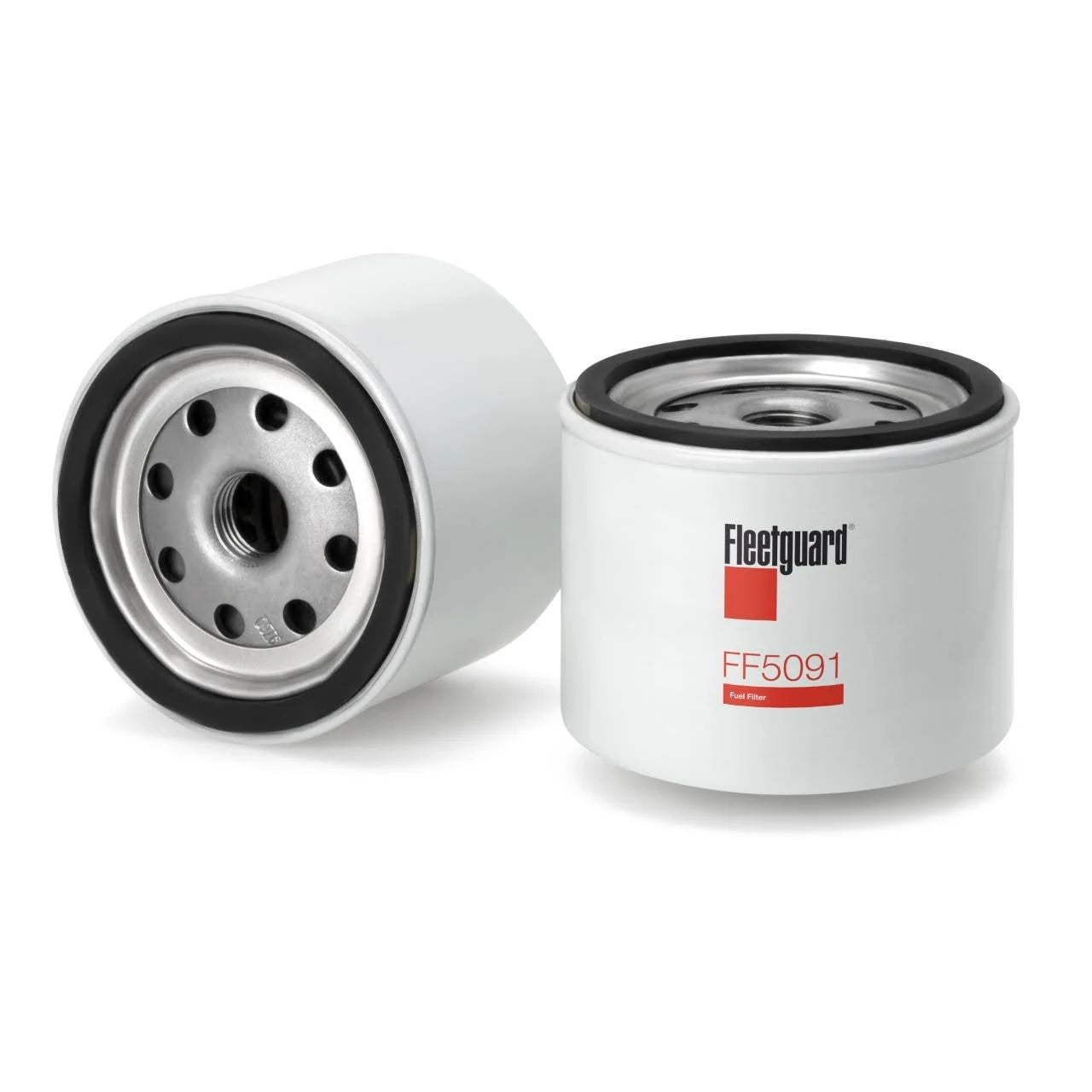

Onan Fuel Filter 149-2106 (NO DRAIN) A026K278 Replacement FF5091

Fleetguard

Onan Fuel Filter 149-2106, A026K278 Replacement FF5091 (without the water drain, 20micron) Fuel Filter suits Onan marine generators. Note, this is ...

View full details
$32.00 AUD - $32.00 AUD
$32.00 AUD
$32.00 AUD - $32.00 AUD
$32.00 AUD
$55.00 AUD - $55.00 AUD
$55.00 AUD
$55.00 AUD - $55.00 AUD
$55.00 AUD

Sherwood Impeller 10615K Replacement ANCOR 2047

Ancor

Sherwood Seawater Impeller 10615K Ancor Replacement Replaces Sherwood part no. 10615K Spare shaft key 04434 available separately. Impeller Specific...

View full details
$55.00 AUD - $55.00 AUD
$55.00 AUD
$55.00 AUD - $55.00 AUD
$55.00 AUD
$0.00 AUD - $0.00 AUD
$0.00 AUD
$55.00 AUD
$55.00 AUD - $55.00 AUD
$55.00 AUD

JMP 7300-01 Impeller (Sherwood 10615K) (Johnson 09-702 B)

JMP

JMP Marine Flexible Impeller Kit #7300-01KKit Includes:7300-01 (Impeller)Gaskets GAK0023 GAK0044 GAK0045 GAK0046 GAK0047 GAK0048ORG0013 (O-Ring) OR...

View full details
$0.00 AUD - $0.00 AUD
$0.00 AUD
$55.00 AUD
$55.00 AUD - $55.00 AUD
$55.00 AUD
$935.00 AUD - $935.00 AUD
$935.00 AUD
$935.00 AUD - $935.00 AUD
$935.00 AUD

Sherwood G1010 Replacement Seawater Pump Onan 132-0356, 132-0414, 132-0413, 132-0350 / Cummins A029U129

JMP Marine

Onan Gen Sherwood G1010 Replacement Aftermarket JMP-ON7310 Brand Seawater Pump  Sherwood G1006 & 1008 is replaced by G1010, G-1010 Onan 132-035...

View full details
$935.00 AUD - $935.00 AUD
$935.00 AUD
$935.00 AUD - $935.00 AUD
$935.00 AUD
$90.00 AUD - $90.00 AUD
$90.00 AUD
$90.00 AUD - $90.00 AUD
$90.00 AUD

Onan Raw Water Pressure Switch 0309-0717 Replacement

Marine Energy Systems

Replacement raw water pressure switch for Onan Cummins Generators.  Aftermarket partr Suits Onan all MDK marine generators. Compatible with for Ona...

View full details
$90.00 AUD - $90.00 AUD
$90.00 AUD
$90.00 AUD - $90.00 AUD
$90.00 AUD
$1,100.00 AUD - $1,100.00 AUD
$1,100.00 AUD
$1,100.00 AUD - $1,100.00 AUD
$1,100.00 AUD

Onan MDKA MDKB MDKDR 17.5KW Heat Exchanger Replacement 130-6548CN

Mr Cool (USA)

Suits Onan generators MDKAD MDKAE MDKBD MDKBE MDKBP (Spec A-C) MDKBR (Spec A-C), MDKBV MDKBU MDKDR 17.5Kw MDKDR-8202A 27MDKBU-6404B. Size: 15 x 2.5...

View full details
$1,100.00 AUD - $1,100.00 AUD
$1,100.00 AUD
$1,100.00 AUD - $1,100.00 AUD
$1,100.00 AUD
$27.00 AUD - $27.00 AUD
$27.00 AUD
$27.00 AUD - $27.00 AUD
$27.00 AUD

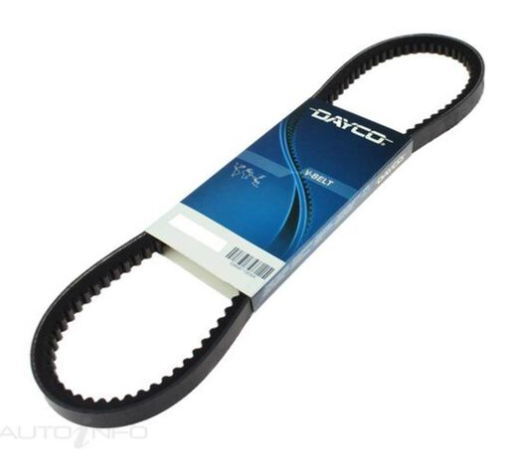

V Belt Onan alternator, 11A1040, 185-7055

Marine Energy Systems

V Belt for Onan marine generators. Alternator belt 185-7055 replacement. Aftermarket / Replacement Part 11A1040

$27.00 AUD - $27.00 AUD
$27.00 AUD
$27.00 AUD - $27.00 AUD
$27.00 AUD
$8.80 AUD - $8.80 AUD
$8.80 AUD
$8.80 AUD - $8.80 AUD
$8.80 AUD

Yanmar Zinc Anode (No Plug) 119574-44150 Onan 130-4434 Replacement

Cathodic Anodes

Yanmar Zinc Anode Replacement  Replaces Yanmar anode 119574-44150  Replaces Onan anode 130-4434 CAT anode 6L2281 Anode only - no plug. For anode wi...

View full details
$8.80 AUD - $8.80 AUD
$8.80 AUD
$8.80 AUD - $8.80 AUD
$8.80 AUD
$14.00 AUD - $14.00 AUD
$14.00 AUD
$14.00 AUD - $14.00 AUD
$14.00 AUD

Zinc Anode With Plug (3/8” NPT) YN 119574-44150 Onan 130-4434 Replacement Z9-125

Cathodic Anodes

Yanmar Zinc Anode Replacement  Replaces Yanmar anode p/n 119574-44150  Replaces Onan anode p/n 130-4434 Replaces Cummins 3957921 / 3979452 Anode wi...

View full details
$14.00 AUD - $14.00 AUD
$14.00 AUD
$14.00 AUD - $14.00 AUD
$14.00 AUD
$150.00 AUD - $150.00 AUD
$150.00 AUD
$150.00 AUD - $150.00 AUD
$150.00 AUD

Onan 149-2646 / A047N911, 149-2331-02 Facet Fuel Lift Pump Replacement

Marine Energy Systems

12V Facet Pump Kit for Diesel Replacement 12V Fuel Lift Pump for Onan Cummins marine generators. Can be used in place of 149-2646 ss to A047N911 or...

View full details
$150.00 AUD - $150.00 AUD
$150.00 AUD
$150.00 AUD - $150.00 AUD
$150.00 AUD
$427.50 AUD - $427.50 AUD
$427.50 AUD
$427.50 AUD - $427.50 AUD
$427.50 AUD

Onan MDKD-P/R/V Exhaust Mixing Elbow 154-3163 Replacement in CAST 316 Stainless

HDI Marine

Replacement CAST 316 Exhaust Elbow for Onan MGKBC MGKBD / MDKD-P / MDKD-R / MDKD-V (10-20KW) marine generators. This HDI Marine item replaces Onan...

View full details
$427.50 AUD - $427.50 AUD
$427.50 AUD
$427.50 AUD - $427.50 AUD
$427.50 AUD
