Onan 7.0/9.0KW MDKAL Marine Diesel Service Parts

Aftermarket Parts for Onan MDKA Series Marine Diesel 7.0/9.0KW MDKAL generator.

Stocked and shipped from the Gold Coast, Australia.

3 Cylinder Engine. (Spec A Kubuta D1005) (Spec B Kubota D1105).

MDKAL Oil Capacity: 4.0L. Coolant Capacity: 4.0L

Parts Manual PDF: MDKAL (Spec A-C)

Service Manual PDF: MDKAL (Spec A-C), MDKAA (Spec A-B), MDKAB (Spec A-B).

Operator's Manual PDF: MDKAL MDKAA MDKAB

Spare Part Onan / Notes Aftermarket Part
FILTERS
Oil Filter 185−5835

LP 185-5835

LF3536

B161-S
Oil 4L  SAE15W40 Oils page
Fuel Filter 149-2106, A026K278 LP 149-2106
149-2106, A026K278 FF5091 (No Drain)
Remote Water Separator 149-1914 Racor R24P
OIL: 4.0L Capacity SAE 15W40 OILS PAGE
COOLING SYSTEM:
Coolant 4.0L Capacity COOLANTS PAGE
Impeller 132−0375

AN 3950

JMP 7110
Seawater Pump 132−0358 Sherwood G702
Raw water pressure switch Raw water pressure switch 0309-0717
Exhaust Elbow 155-3261-02 HDI LMN

Heat  Exchanger

130−4985−03

 MEC 130-4702CN
Zinc Anode 130-4434 MEZ 9-071
Anode with plug 130-4434 MEZ 9-125
ELECTRICAL:
Starter Motor 185-7104
Fuel Pump 149-2331-02 OBC 149-2646
BELTS:
Belt, Alternator 185-6934 LP 11A0950

Onan White

Paint


$24.20 AUD - $24.20 AUD
$24.20 AUD
$24.20 AUD - $24.20 AUD
$24.20 AUD

Onan Oil Filter 0185-5835 Fleetguard Filter LF 3536, B161-S

FleetGuard

Onan Oil Filter MDKBL, MDKBM, MDKBN, MDKAL, MDKAV, MDKAW, MDKAZ... 185-5835 Replacement Max O.D. 84.75mm, Length/height 100mm Oil filter to suit On...

View full details
$24.20 AUD - $24.20 AUD
$24.20 AUD
$24.20 AUD - $24.20 AUD
$24.20 AUD
$99.00 AUD - $99.00 AUD
$99.00 AUD
$99.00 AUD - $99.00 AUD
$99.00 AUD

Onan Fuel Filter 149-2106 (WITH DRAIN) A026K278 Replacement FS19709

Fleetguard

Fuel filter to suit Onan MDKBJ, MDKBW, MDKAF, MDKBK. Replaces Onan 149-2106, A026K278, Cummins 15026. Note, this is a 2 micron filter with drain - ...

View full details
$99.00 AUD - $99.00 AUD
$99.00 AUD
$99.00 AUD - $99.00 AUD
$99.00 AUD
$32.00 AUD - $32.00 AUD
$32.00 AUD
$32.00 AUD - $32.00 AUD
$32.00 AUD

Onan Fuel Filter 149-2106 (NO DRAIN) A026K278 Replacement FF5091

Fleetguard

Onan Fuel Filter 149-2106, A026K278 Replacement FF5091 (without the water drain, 20micron) Fuel Filter suits Onan marine generators. Note, this is ...

View full details
$32.00 AUD - $32.00 AUD
$32.00 AUD
$32.00 AUD - $32.00 AUD
$32.00 AUD
$151.80 AUD - $151.80 AUD
$151.80 AUD
$151.80 AUD - $151.80 AUD
$151.80 AUD

Racor R24P Fuel Filter (30 micron) Onan MDKD 149-1914-05 Replacement FS 1233

Racor

Original RACOR Parker R24P Fuel Filter / Water Separator Alternates: Fleet guard Fuel Filter FS1233 / DONALDSON 551744 / Onan MDKD 149-1914-05. RAC...

View full details
$151.80 AUD - $151.80 AUD
$151.80 AUD
$151.80 AUD - $151.80 AUD
$151.80 AUD
$0.00 AUD - $0.00 AUD
$0.00 AUD
$55.00 AUD
$55.00 AUD - $55.00 AUD
$55.00 AUD

Sherwood 10077K Impeller Replacement ANCOR AN 3950

ANCOR Marine Products (Made In Italy)

Replaces Sherwood Impeller 10077K Used on Onan 6.5-10Kw / MDKAA / MDKAB / MDKAL / MDKAW / MDKAV / MDKAZ ; Onan MDKDL; MDKBL / MDKBM / MDKBN Replace...

View full details
$0.00 AUD - $0.00 AUD
$0.00 AUD
$55.00 AUD
$55.00 AUD - $55.00 AUD
$55.00 AUD
$0.00 AUD - $0.00 AUD
$0.00 AUD
$55.00 AUD
$55.00 AUD - $55.00 AUD
$55.00 AUD

JMP 7110K Impeller- Replaces Sherwood 10077

JMP Marine

JMP Marine Flexible Impeller Kit #7110-01KKit Includes:7110-01 (Impeller) QTY:1GAK0041 (Gasket) QTY:1GAK0042 (Gasket) QTY:1GAK0043 (Gasket) QTY:1OR...

View full details
$0.00 AUD - $0.00 AUD
$0.00 AUD
$55.00 AUD
$55.00 AUD - $55.00 AUD
$55.00 AUD
$715.00 AUD - $715.00 AUD
$715.00 AUD
$715.00 AUD - $715.00 AUD
$715.00 AUD

Onan 132-0358/ 132-0459 Sherwood G702 Seawater Pump Replacement JPR-ON7102.

JMP Marine

JMP Aftermarket Sherwood G702 Seawater pump Replacement , Onan 132-0358 & Onan 132-0459 / 0132-0459 Replaces Cummins Onan 132-0459, 132-0358, S...

View full details
$715.00 AUD - $715.00 AUD
$715.00 AUD
$715.00 AUD - $715.00 AUD
$715.00 AUD
$22.00 AUD - $22.00 AUD
$22.00 AUD
$22.00 AUD - $22.00 AUD
$22.00 AUD

Gasket, Mounting Onan 0185-6579 for Onan 132-0358/ 132-0459 Sherwood G702 Seawater Pump

Marine Energy Sytems

Mounting gasket Onan 0185-6579 for Sherwood G702 / Onan 0185-6579 seawater pump / JPR-ON7102. Gasket 185-6579.

$22.00 AUD - $22.00 AUD
$22.00 AUD
$22.00 AUD - $22.00 AUD
$22.00 AUD
$12.00 AUD - $12.00 AUD
$12.00 AUD
$12.00 AUD - $12.00 AUD
$12.00 AUD

Zinc Anode With Plug (3/8” NPT) YN 119574-44150 Onan 130-4434 Replacement

Recmar

Yanmar Zinc Anode Replacement  Replaces Yanmar anode p/n 119574-44150  Replaces Onan anode p/n 130-4434 130-1340 Replaces Cummins 3957921 / 3979452...

View full details
$12.00 AUD - $12.00 AUD
$12.00 AUD
$12.00 AUD - $12.00 AUD
$12.00 AUD
$8.80 AUD - $8.80 AUD
$8.80 AUD
$8.80 AUD - $8.80 AUD
$8.80 AUD

Yanmar Zinc Anode (No Plug) 119574-44150 Onan 130-4434 Replacement

Cathodic Anodes

Yanmar Zinc Anode Replacement  Replaces Yanmar anode 119574-44150  Replaces Onan anode 130-4434 CAT anode 6L2281 Anode only - no plug. For anode wi...

View full details
$8.80 AUD - $8.80 AUD
$8.80 AUD
$8.80 AUD - $8.80 AUD
$8.80 AUD
$962.00 AUD - $962.00 AUD
$962.00 AUD
$962.00 AUD - $962.00 AUD
$962.00 AUD

ONAN MDKAL,MDKAV/AW/AZ HEAT EXCHANGER 130-4702,130-4985, 130-6547-02 & 130-6547-03

Mr Cool (USA)

ONAN HEAT EXCHANGER MDKAL, MDKAW Replacement Heat Exchanger Suits Onan generators MDKAW / MDKAL / MDKAV/ MDKAW/ MDKAZ / MDKBL / MDKBM, MDKBN / MDKA...

View full details
$962.00 AUD - $962.00 AUD
$962.00 AUD
$962.00 AUD - $962.00 AUD
$962.00 AUD
$29.07 AUD - $29.07 AUD
$29.07 AUD
$29.07 AUD - $29.07 AUD
$29.07 AUD

V Belt Onan alternator LP 11A0950, 185-6934

Marine Energy Systems

Aftermarket part V Belt Onan alternator 185-6934 sku LP 11A0950

$29.07 AUD - $29.07 AUD
$29.07 AUD
$29.07 AUD - $29.07 AUD
$29.07 AUD
$742.50 AUD - $742.50 AUD
$742.50 AUD
$742.50 AUD - $742.50 AUD
$742.50 AUD

Onan MDKDL/M/N/A/B Exhaust Mixing Elbow 155-3261-2 Replacement in CAST 316 SS HDI LMN

HDI Marine

Replacement CAST 316 Stainless Steel Exhaust Mixing Elbow for Onan marine generators: MDKDL / MDKDM / MDKDN / MDKAL / MDKBN / MDKBL / MDKBM / MDKAV...

View full details
$742.50 AUD - $742.50 AUD
$742.50 AUD
$742.50 AUD - $742.50 AUD
$742.50 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD

Paint, White Cummins, Onan White Spray Can

Marine Energy Systems

Paint, White Cummins, Onan White Spray Can Aftermarket part SKU; LP Paint White Cummins Onan Standard road freight only

$44.00 AUD - $44.00 AUD
$44.00 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD

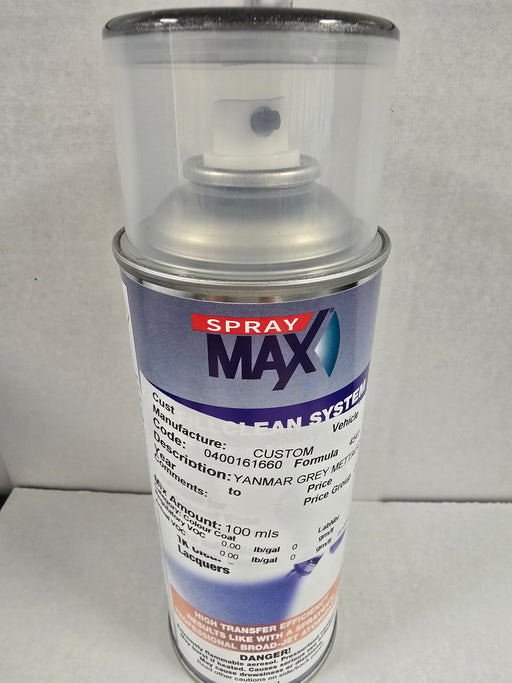

Paint, Yanmar Dark Metalic Grey Spray Can

Marine Energy Systems

Paint, Yanmar Dark Metalic Grey Spray Can 298 ml Aftermarket part SKU - MAR-PAINT-00-4D Standard road freight only

$44.00 AUD - $44.00 AUD
$44.00 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD

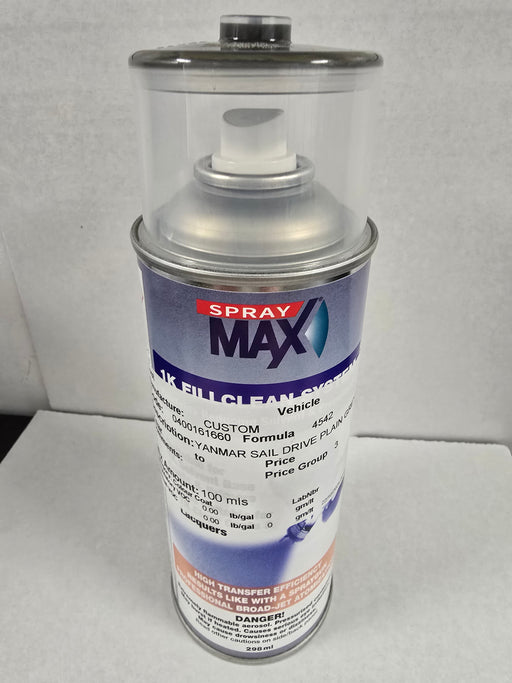

Paint, Yanmar Sail Drive Leg Grey Spray Can

Marine Energy Systems

Paint, Yanmar Sail Drive Leg Grey Spray Can 298 ml Aftermarket part SKU - LP Paint Yanmar Grey Standard road freight only

$44.00 AUD - $44.00 AUD
$44.00 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD
