Onan 7.0/9.0KW MDKAL Marine Diesel Service Parts

Aftermarket Parts for Onan MDKA Series Marine Diesel 7.0/9.0KW MDKAL generator.

Stocked and shipped from the Gold Coast, Australia.

3 Cylinder Engine. (Spec A Kubuta D1005) (Spec B Kubota D1105).

MDKAL Oil Capacity: 4.0L. Coolant Capacity: 4.0L

Parts Manual PDF: MDKAL (Spec A-C)

Service Manual PDF: MDKAL (Spec A-C), MDKAA (Spec A-B), MDKAB (Spec A-B).

Operator's Manual PDF: MDKAL MDKAA MDKAB

Spare Part Onan / Notes Aftermarket Part
FILTERS
Oil Filter 185−5835

LP 185-5835

LF3536

B161-S
Oil 4L  SAE15W40 Oils page
Fuel Filter 149-2106, A026K278 LP 149-2106
149-2106, A026K278 FF5091 (No Drain)
Remote Water Separator 149-1914 Racor R24P
OIL: 4.0L Capacity SAE 15W40 OILS PAGE
COOLING SYSTEM:
Coolant 4.0L Capacity COOLANTS PAGE
Impeller 132−0375

AN 3950

JMP 7110
Seawater Pump 132−0358 Sherwood G702
Raw water pressure switch Raw water pressure switch 0309-0717
Exhaust Elbow 155-3261-02 HDI LMN

Heat  Exchanger

130−4985−03

 MEC 130-4702CN
Zinc Anode 130-4434 MEZ 9-071
Anode with plug 130-4434 MEZ 9-125
ELECTRICAL:
Starter Motor 185-7104
Fuel Pump 149-2331-02 OBC 149-2646
BELTS:
Belt, Alternator 185-6934 LP 11A0950

Onan White

Paint


$24.20 AUD - $24.20 AUD
$24.20 AUD
$24.20 AUD - $24.20 AUD
$24.20 AUD

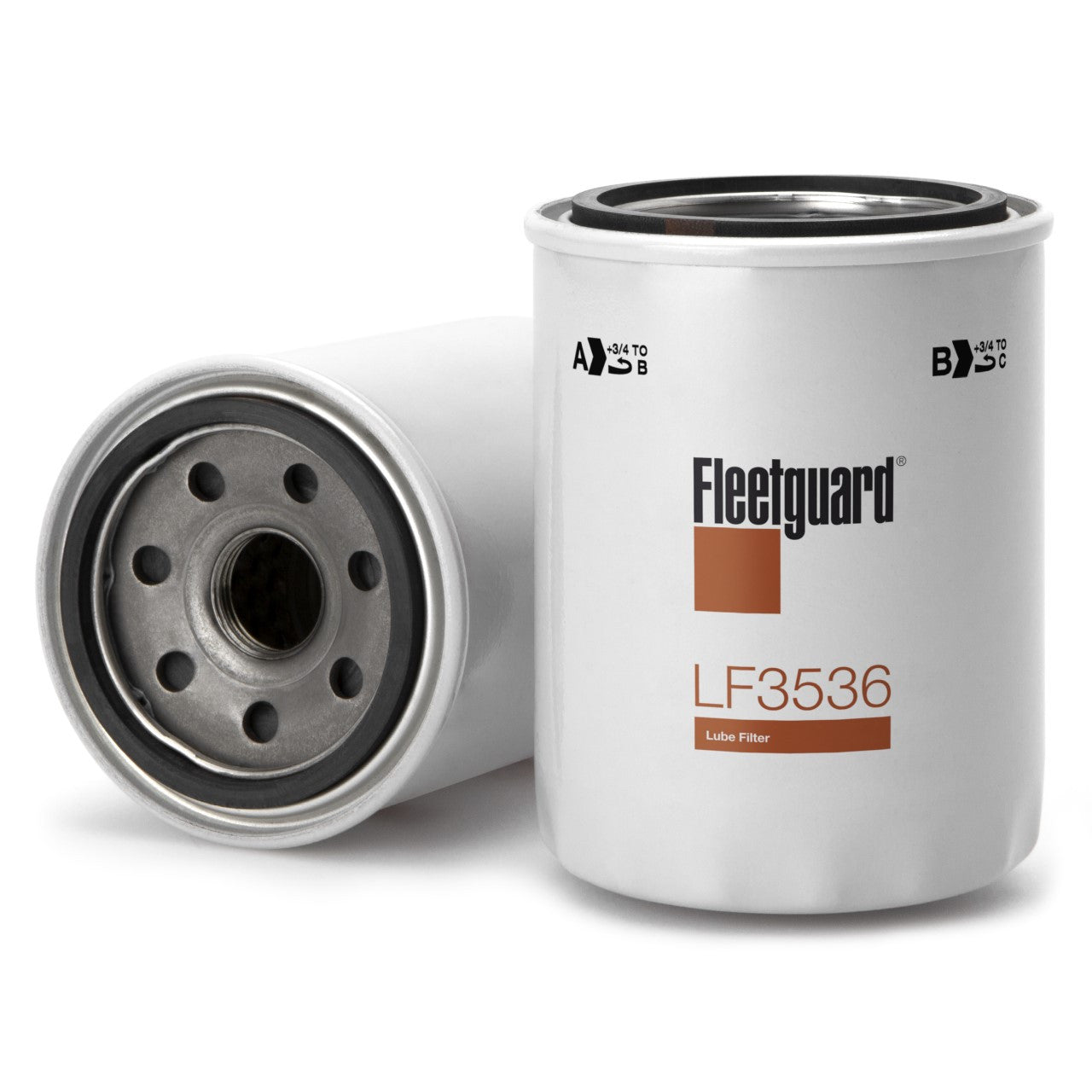

Onan Oil Filter 0185-5835 Fleetguard Filter LF 3536, B161-S

FleetGuard

Onan Oil Filter MDKBL, MDKBM, MDKBN, MDKAL, MDKAV, MDKAW, MDKAZ... 185-5835 Replacement Max O.D. 84.75mm, Length/height 100mm Oil filter to suit On...

View full details
$24.20 AUD - $24.20 AUD
$24.20 AUD
$24.20 AUD - $24.20 AUD
$24.20 AUD
$99.00 AUD - $99.00 AUD
$99.00 AUD
$99.00 AUD - $99.00 AUD
$99.00 AUD

Onan Fuel Filter 149-2106 (WITH DRAIN) A026K278 Replacement FS19709

Fleetguard

Fuel filter to suit Onan MDKBJ, MDKBW, MDKAF, MDKBK. Replaces Onan 149-2106, A026K278, Cummins 15026. Note, this is a 2 micron filter with drain - ...

View full details
$99.00 AUD - $99.00 AUD
$99.00 AUD
$99.00 AUD - $99.00 AUD
$99.00 AUD
$32.00 AUD - $32.00 AUD
$32.00 AUD
$32.00 AUD - $32.00 AUD
$32.00 AUD

Onan Fuel Filter 149-2106 (NO DRAIN) A026K278 Replacement FF5091

Fleetguard

Onan Fuel Filter 149-2106, A026K278 Replacement FF5091 (without the water drain, 20micron) Fuel Filter suits Onan marine generators. Note, this is ...

View full details
$32.00 AUD - $32.00 AUD
$32.00 AUD
$32.00 AUD - $32.00 AUD
$32.00 AUD
$151.80 AUD - $151.80 AUD
$151.80 AUD
$151.80 AUD - $151.80 AUD
$151.80 AUD

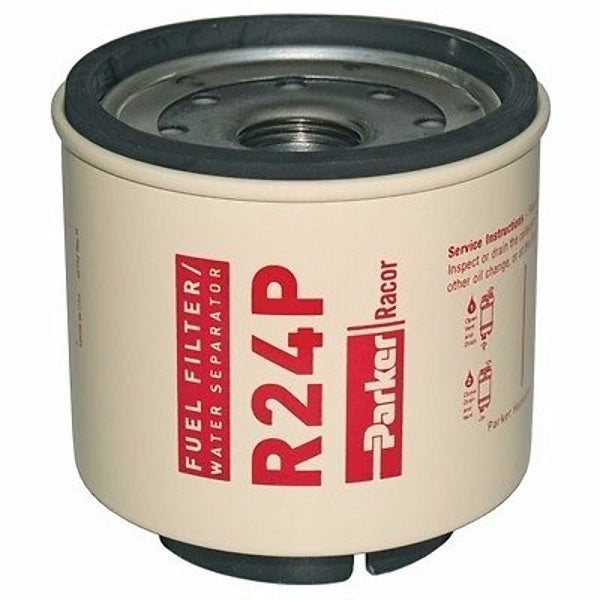

Racor R24P Fuel Filter (30 micron) Onan MDKD 149-1914-05 Replacement FS 1233

Racor

Original RACOR Parker R24P Fuel Filter / Water Separator Alternates: Fleet guard Fuel Filter FS1233 / DONALDSON 551744 / Onan MDKD 149-1914-05. RAC...

View full details
$151.80 AUD - $151.80 AUD
$151.80 AUD
$151.80 AUD - $151.80 AUD
$151.80 AUD
Sold out
$55.00 AUD - $55.00 AUD
$55.00 AUD
$55.00 AUD - $55.00 AUD
$55.00 AUD

Penrite 15W40 Convoy DHD Premium Mineral Engine Oil 5 Litres Volvo Penta VDS-4.5 approval

Penrite
Out of stock

Convoy DHD has Manufacturer's (OEM) Approvals For Volvo Penta, Cummins, Catapillar, Detroit and many more. You can use this oil while still under m...

View full details
$55.00 AUD - $55.00 AUD
$55.00 AUD
$55.00 AUD - $55.00 AUD
$55.00 AUD
Sold out
$0.00 AUD - $0.00 AUD
$0.00 AUD
$55.00 AUD
$55.00 AUD - $55.00 AUD
$55.00 AUD

Sherwood 10077K Impeller Replacement ANCOR AN 3950

ANCOR Marine Products (Made In Italy)

Replaces Sherwood Impeller 10077K Used on Onan 6.5-10Kw / MDKAA / MDKAB / MDKAL / MDKAW / MDKAV / MDKAZ ; Onan MDKDL; MDKBL / MDKBM / MDKBN Replace...

View full details
$0.00 AUD - $0.00 AUD
$0.00 AUD
$55.00 AUD
$55.00 AUD - $55.00 AUD
$55.00 AUD
$0.00 AUD - $0.00 AUD
$0.00 AUD
$55.00 AUD
$55.00 AUD - $55.00 AUD
$55.00 AUD

JMP 7110K Impeller- Replaces Sherwood 10077

JMP Marine

JMP Marine Flexible Impeller Kit #7110-01KKit Includes:7110-01 (Impeller) QTY:1GAK0041 (Gasket) QTY:1GAK0042 (Gasket) QTY:1GAK0043 (Gasket) QTY:1OR...

View full details
$0.00 AUD - $0.00 AUD
$0.00 AUD
$55.00 AUD
$55.00 AUD - $55.00 AUD
$55.00 AUD
$715.00 AUD - $715.00 AUD
$715.00 AUD
$715.00 AUD - $715.00 AUD
$715.00 AUD

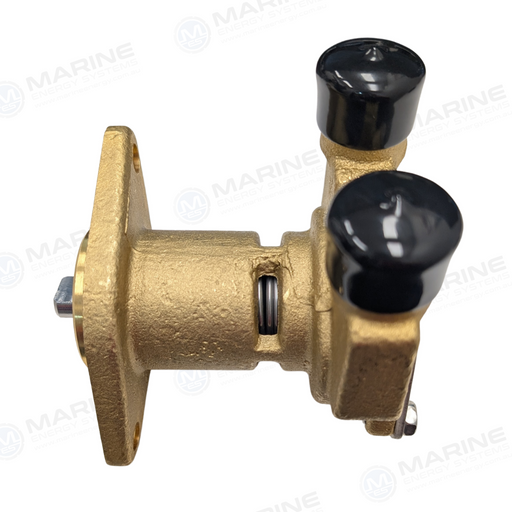

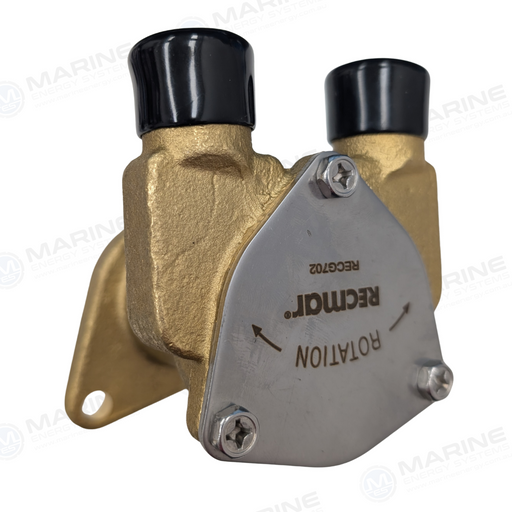

Onan 132-0358/ 132-0459 Sherwood G702 Seawater Pump Replacement JPR-ON7102.

JMP Marine

JMP Aftermarket Sherwood G702 Seawater pump Replacement , Onan 132-0358 & Onan 132-0459 / 0132-0459 Replaces Cummins Onan 132-0459, 132-0358, S...

View full details
$715.00 AUD - $715.00 AUD
$715.00 AUD
$715.00 AUD - $715.00 AUD
$715.00 AUD
$22.00 AUD - $22.00 AUD
$22.00 AUD
$22.00 AUD - $22.00 AUD
$22.00 AUD

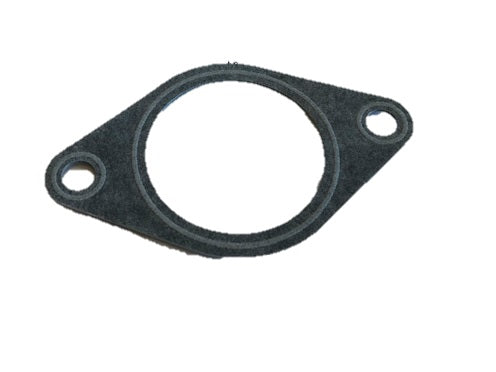

Gasket, Mounting Onan 0185-6579 for Onan 132-0358/ 132-0459 Sherwood G702 Seawater Pump

Marine Energy Sytems

Mounting gasket Onan 0185-6579 for Sherwood G702 / Onan 0185-6579 seawater pump / JPR-ON7102. Gasket 185-6579.

$22.00 AUD - $22.00 AUD
$22.00 AUD
$22.00 AUD - $22.00 AUD
$22.00 AUD
$12.00 AUD - $12.00 AUD
$12.00 AUD
$12.00 AUD - $12.00 AUD
$12.00 AUD

Zinc Anode With Plug (3/8” NPT) YN 119574-44150 Onan 130-4434 Replacement

Recmar

Yanmar Zinc Anode Replacement  Replaces Yanmar anode p/n 119574-44150  Replaces Onan anode p/n 130-4434 130-1340 Replaces Cummins 3957921 / 3979452...

View full details
$12.00 AUD - $12.00 AUD
$12.00 AUD
$12.00 AUD - $12.00 AUD
$12.00 AUD
$8.80 AUD - $8.80 AUD
$8.80 AUD
$8.80 AUD - $8.80 AUD
$8.80 AUD

Yanmar Zinc Anode (No Plug) 119574-44150 Onan 130-4434 Replacement

Cathodic Anodes

Yanmar Zinc Anode Replacement  Replaces Yanmar anode 119574-44150  Replaces Onan anode 130-4434 CAT anode 6L2281 Anode only - no plug. For anode wi...

View full details
$8.80 AUD - $8.80 AUD
$8.80 AUD
$8.80 AUD - $8.80 AUD
$8.80 AUD
$962.00 AUD - $962.00 AUD
$962.00 AUD
$962.00 AUD - $962.00 AUD
$962.00 AUD

ONAN MDKAL,MDKAV/AW/AZ HEAT EXCHANGER 130-4702,130-4985, 130-6547-02 & 130-6547-03

Mr Cool (USA)

ONAN HEAT EXCHANGER MDKAL, MDKAW Replacement Heat Exchanger Suits Onan generators MDKAW / MDKAL / MDKAV/ MDKAW/ MDKAZ / MDKBL / MDKBM, MDKBN / MDKA...

View full details
$962.00 AUD - $962.00 AUD
$962.00 AUD
$962.00 AUD - $962.00 AUD
$962.00 AUD
$29.07 AUD - $29.07 AUD
$29.07 AUD
$29.07 AUD - $29.07 AUD
$29.07 AUD

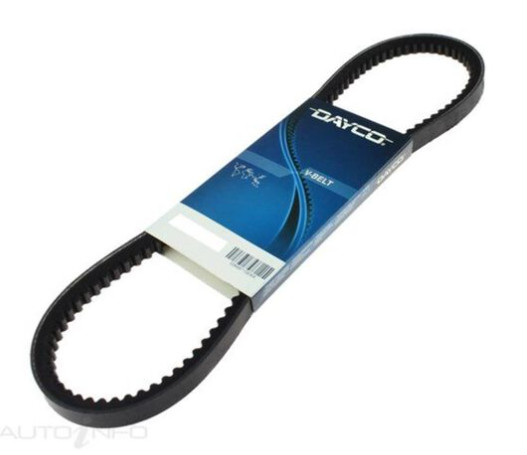

V Belt Onan alternator LP 11A0950, 185-6934

Marine Energy Systems

Aftermarket part V Belt Onan alternator 185-6934 sku LP 11A0950

$29.07 AUD - $29.07 AUD
$29.07 AUD
$29.07 AUD - $29.07 AUD
$29.07 AUD
$742.50 AUD - $742.50 AUD
$742.50 AUD
$742.50 AUD - $742.50 AUD
$742.50 AUD

Onan MDKDL/M/N/A/B Exhaust Mixing Elbow 155-3261-2 Replacement in CAST 316 SS HDI LMN

HDI Marine

Replacement CAST 316 Stainless Steel Exhaust Mixing Elbow for Onan marine generators: MDKDL / MDKDM / MDKDN / MDKAL / MDKBN / MDKBL / MDKBM / MDKAV...

View full details
$742.50 AUD - $742.50 AUD
$742.50 AUD
$742.50 AUD - $742.50 AUD
$742.50 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD

Paint, White Cummins, Onan White Spray Can

Marine Energy Systems

Paint, White Cummins, Onan White Spray Can Aftermarket part SKU; LP Paint White Cummins Onan Standard road freight only

$44.00 AUD - $44.00 AUD
$44.00 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD
Sold out
$45.38 AUD - $45.38 AUD
$45.38 AUD
$45.38 AUD - $45.38 AUD
$45.38 AUD

V Belt Onan alternator LP 10A0935, Onan 511-0197

Marine Energy Systems
Out of stock

V Belt Onan alternator LP 10A0935, Onan 511-0197 Aftermarket part V Belt Onan alternator 511-0197 sku LP 10A0935

$45.38 AUD - $45.38 AUD
$45.38 AUD
$45.38 AUD - $45.38 AUD
$45.38 AUD
Sold out
$44.00 AUD - $44.00 AUD
$44.00 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD

Paint, Yanmar Dark Metalic Grey Spray Can

Marine Energy Systems

Paint, Yanmar Dark Metalic Grey Spray Can 298 ml Aftermarket part SKU - MAR-PAINT-00-4D Standard road freight only

$44.00 AUD - $44.00 AUD
$44.00 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD

Paint, Yanmar Sail Drive Leg Grey Spray Can

Marine Energy Systems

Paint, Yanmar Sail Drive Leg Grey Spray Can 298 ml Aftermarket part SKU - LP Paint Yanmar Grey Standard road freight only

$44.00 AUD - $44.00 AUD
$44.00 AUD
$44.00 AUD - $44.00 AUD
$44.00 AUD
