Johnson 10-24318-01 (F5B-905), Universal 302259 Replacement AN 6223

Johnson 10-24318-01 (F5B-905), Universal 302259 Replacement AN 6223

Replacement seawater pump by Ancor.

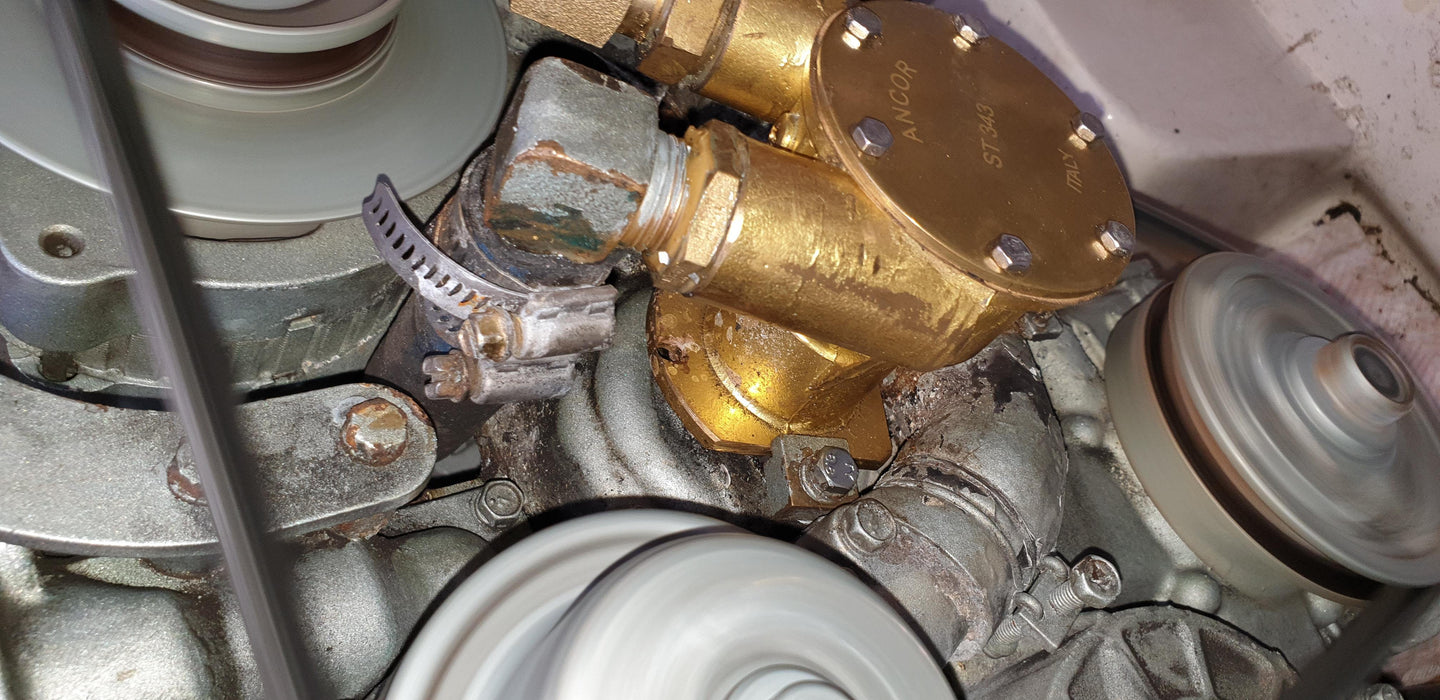

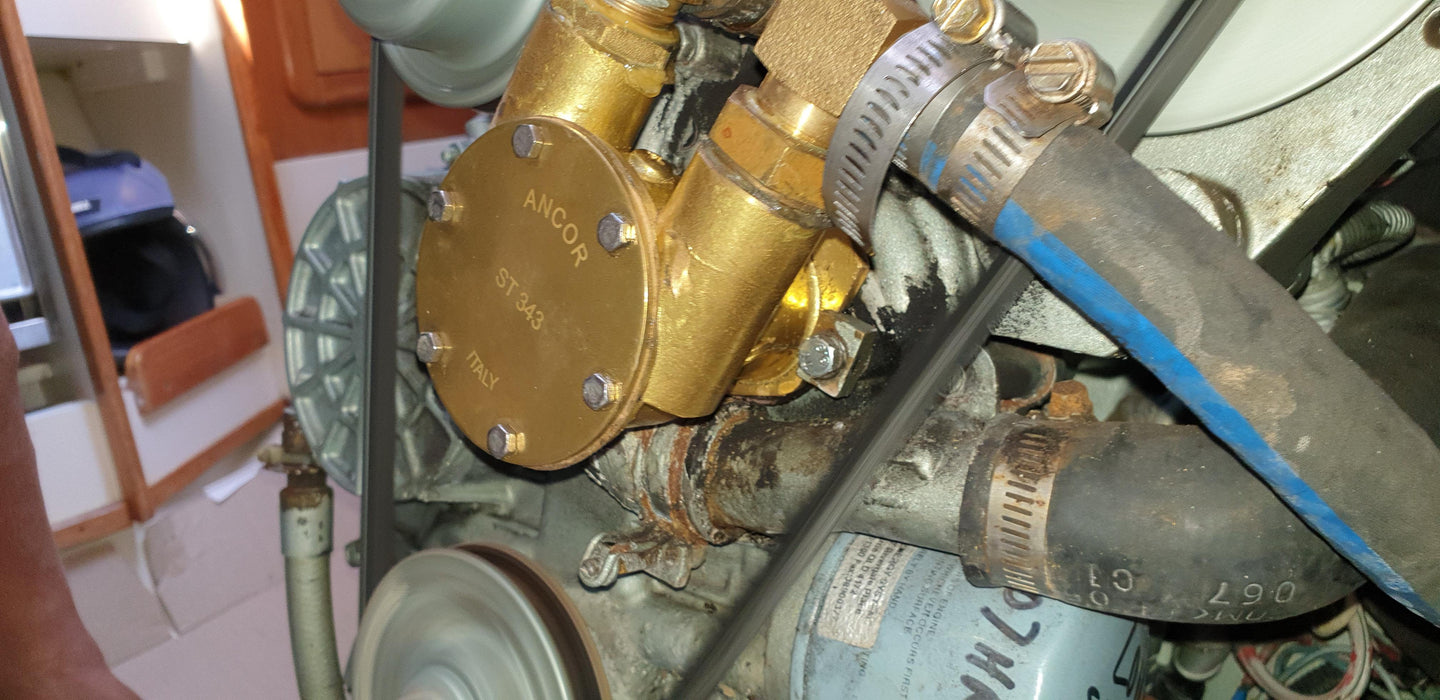

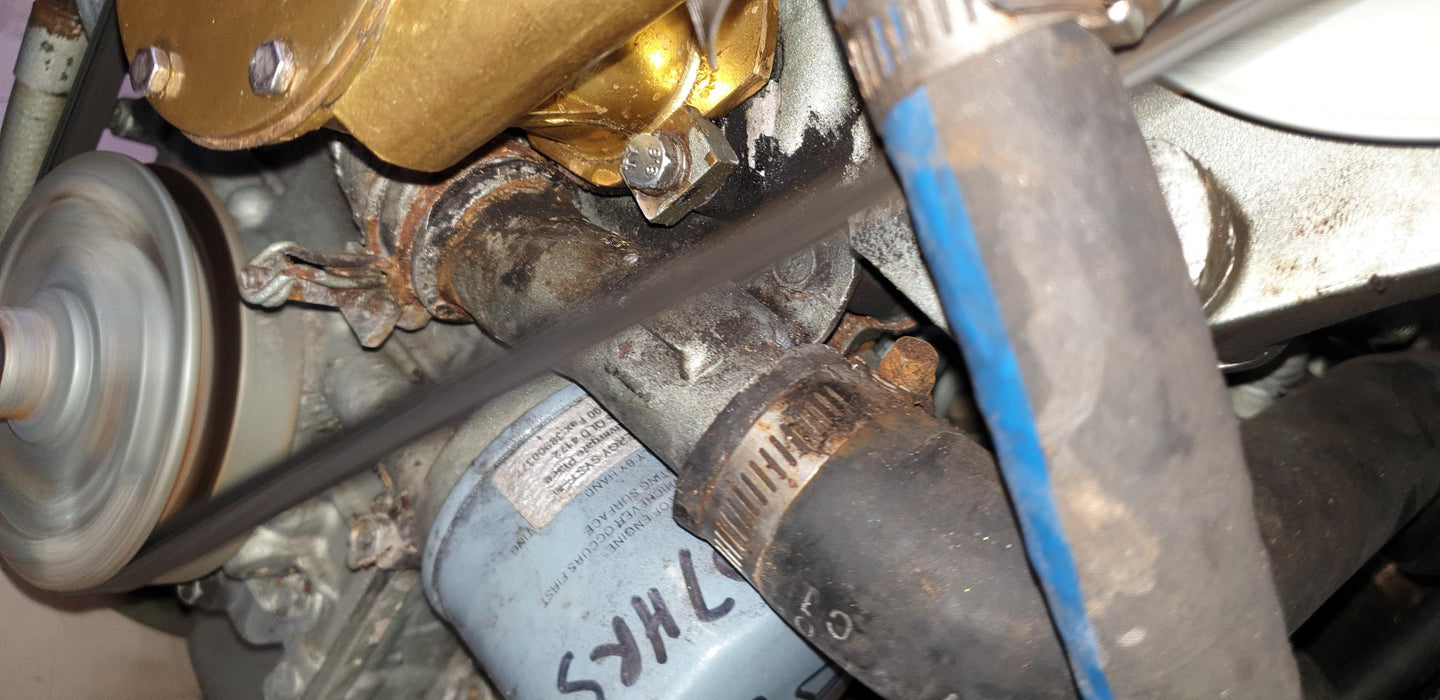

Johnson pump is no longer available. Was fitted to old Universal M35 engines. Will not directly swap / replace the Sherwood pump on current M35 engines but can be adapted in place of 42175 sherwood G 903/908 pump .. see pictures of typical mod done and adaptation of this on the Universal M35B/ M25-XPB. M40B models using the exist clip mount holding system on the motor

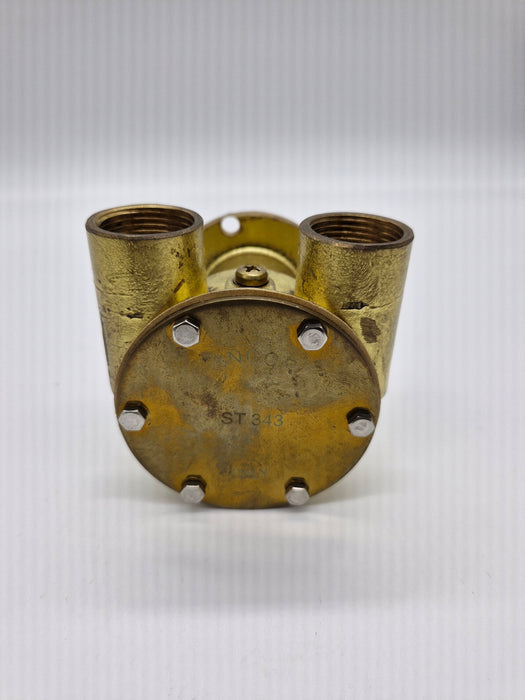

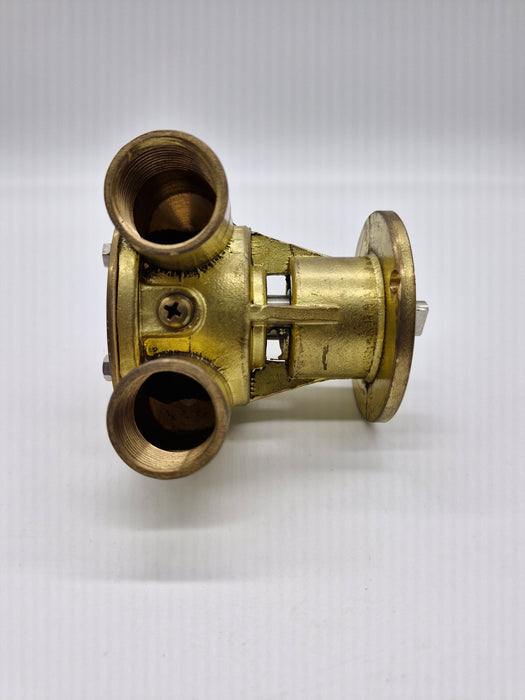

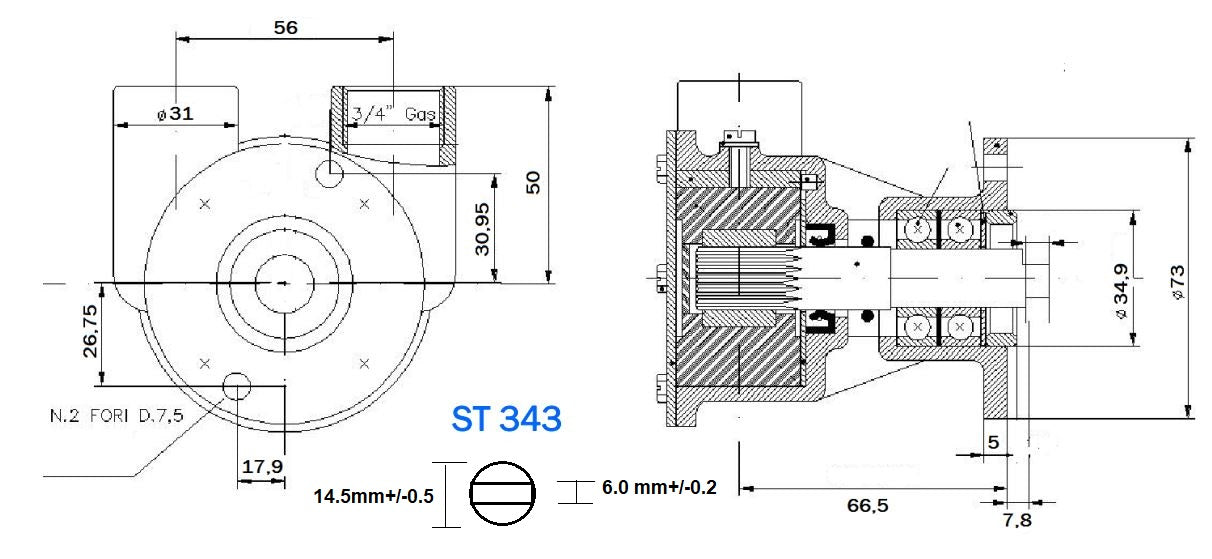

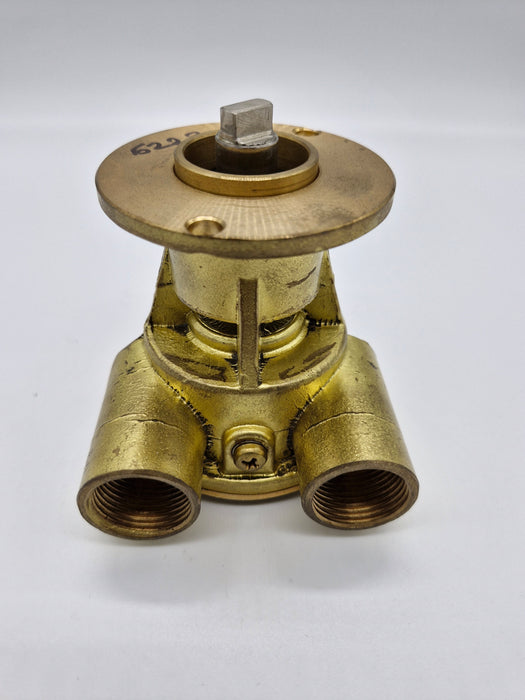

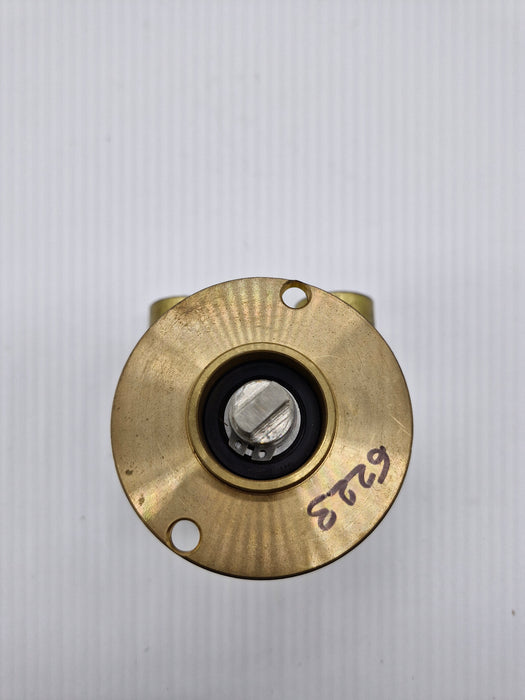

This is an Ancor pump 6223 ST 343.

R. Kit

Impeller

Cover

Shaft

Wear Plate

Cam

Lip Seal/ Mech Seal

3745

2040

2390

6224

2395

2393

243

Cov Gasket

Screw

Cam Screw

Bearing

Circlip

Circlip



233 (6)

5395

3125(2)

2394
