Cummins 6CTA8.3M and 6CTA8.3M2 Seawater Pump P1727C Replacement JMP JPR-S7627
by JMP Marine
SKU: JMP JPR-S7627
Original price
$1,550.00 AUD
-
Original price
$1,550.00 AUD
Original price
$1,550.00 AUD
$1,550.00 AUD
-
$1,550.00 AUD
Current price
$1,550.00 AUD
Description:

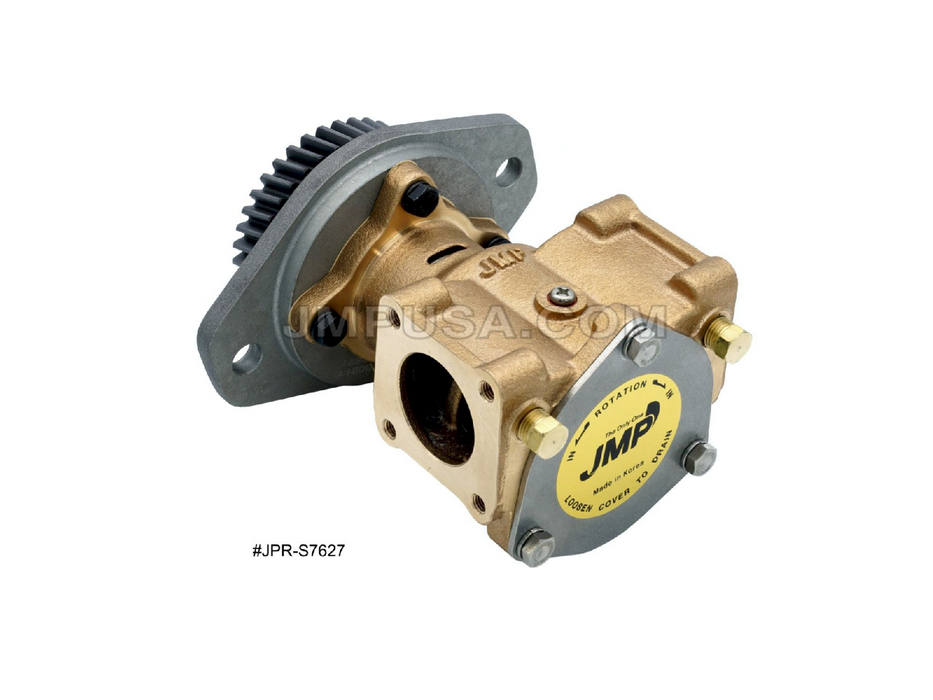

Cummins 6CTA8.3M and 6CTA8.3M2 Replacement Seawater Pump
Cummins Engines: 6CTA8.3M**, 6CTA8.3M2
Replaces Cummins Seawater Pump: 3897194, 3964767, 5265997
Replaces Sherwood Pump: P1727, P1727FB, P1727FB-01, P1727B-02, P1727A, P1727C
This is a JMP Marine pump JPR-S7627 - See link for pump detail video
Mount gasket not included click here to order LP 3008400
** Two pumps available for Cummins 6CTA8.3M. Difference in flange orientation. See photos and alternative JMP JPR-S7630
Some models may use a pump with cast 2" inlet and 1-3/4" outlet ports, if this is the pump you need pls refer to JPM JPR-S7622

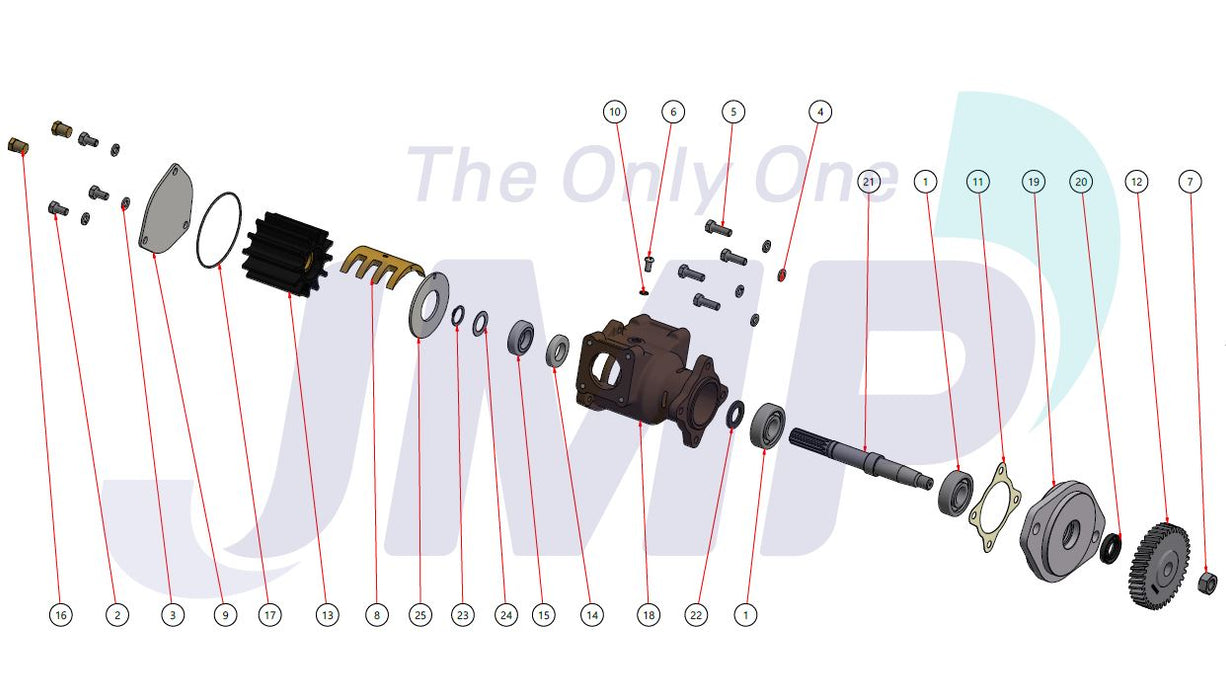

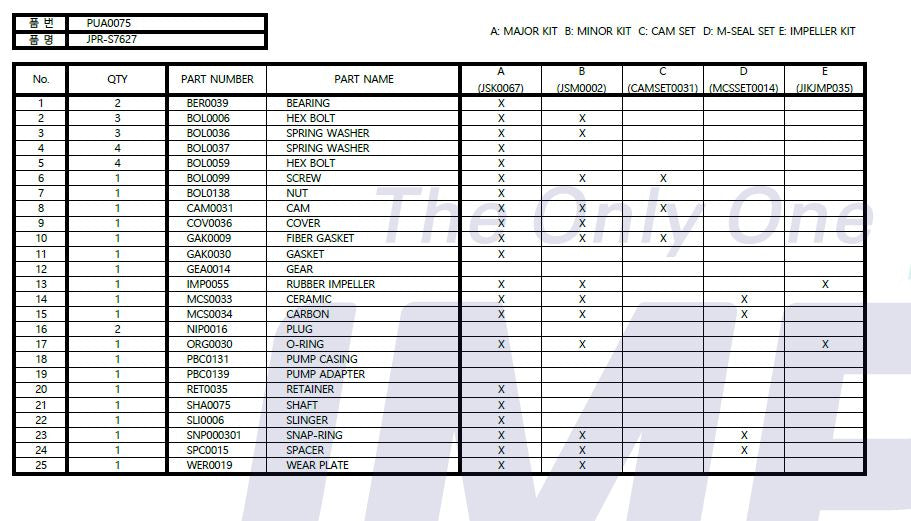

Pump Parts (not compatible with original, performance improvements have been made):
| JMP | DESCRIPTION | QTY | REMARK |
|---|---|---|---|
| JPR-S7627 | SEAWATER PUMP | 1 | RE-ENGINEERED |
| BER0039 | BEARING | 2 | |
| CAMSET0031 | CAM SET | 1 | WITH SCREW & PACKING |
| COV0036 | END COVER | 1 | |
| GAK0030 | GASKET, MOUNTING | 1 | |
| 7608-01 | IMPELLER | 1 | SPLINE TYPE |
| MCSSET014 | MECHANICAL SEAL SET | 1 | |
| ORG0030 | O-RING, END COVER | 1 | |
| SHA0075 | SHAFT | 1 | |
| WER0019 | WEAR PLATE | 1 | |
| GEA0014 | GEAR | 1 | |
| JSM 0002 | MINOR KIT | 1 | |
| JSK0067 | MAJOR KIT | 1 | ALL INTERNAL PARTS |
This is a JMP Marine pump JMP JPR-S7627.
