Kohler Sea W Pump (Sherwood G907P, G906P) Replacement JPR-SE7107P (KL10IP2)

$632.50 AUD : Incl GST

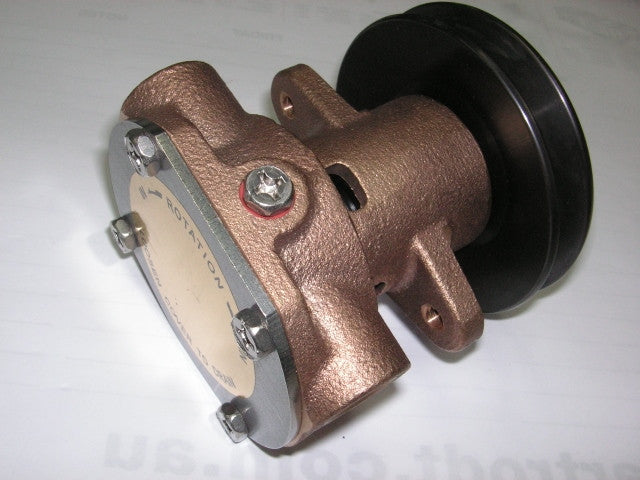

Sherwood G907P* (removable pulley) seawater pump replacement.

Pump 344089 (removable pulley) on units Prior to Serial Number 2104903. For later model pumps GM46936 with the pulley pressed on, use pump JPR-SE7110P.

Used on Kohler generators powered by Yanmar engines.

Kohler part number 267373 / 246489 / 344089

Used on Kohler 6.5EFOZD / 8.0 EFOZD; 7EFOZD / 9EFOZD; 8.5EFOZD / 10EFOZD; 28EFOZD / 32EOZD 23EFOZD / 27EFOZD 25EFOZD / 28EFOZD.

*Sherwood G907P (with pulley) replaced Sherwood G907 (pump without pulley).

Sherwood G907P with pulley replaces Sherwood G906P with pulley.

This is a JMP marine pump JPR-SE7107P.

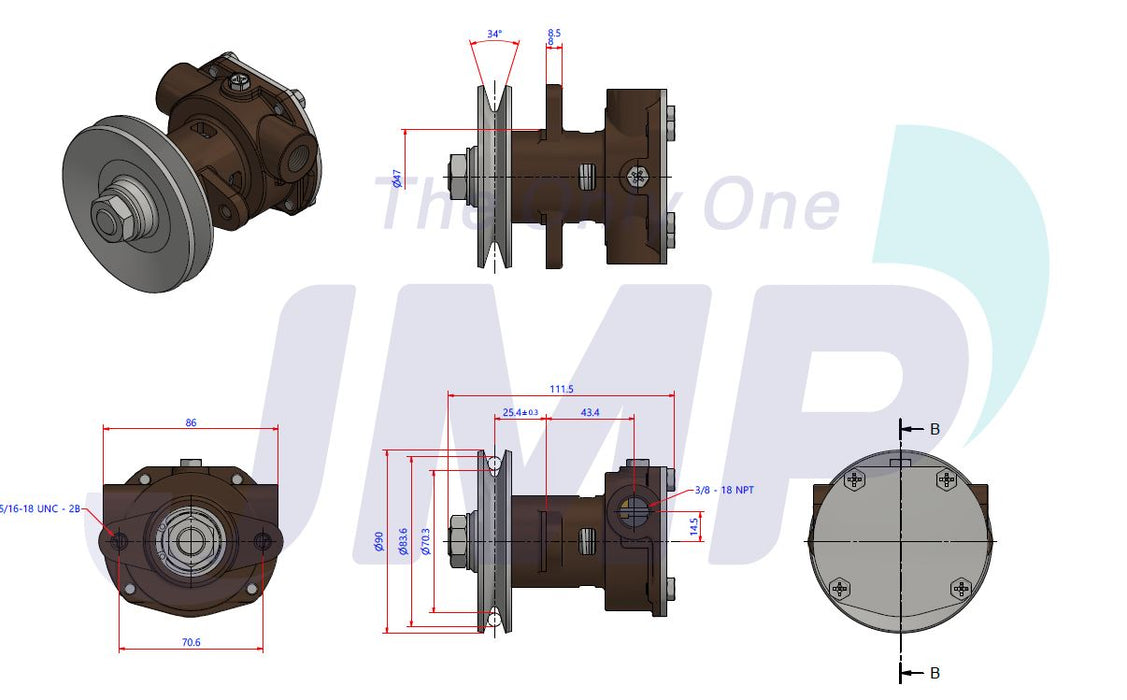

Dimensions:

Inlet	Outlet	Size (LxWxH)	Weight	Notes
3/8"	3/8"	112 x 90 x 90	1.8 kgs

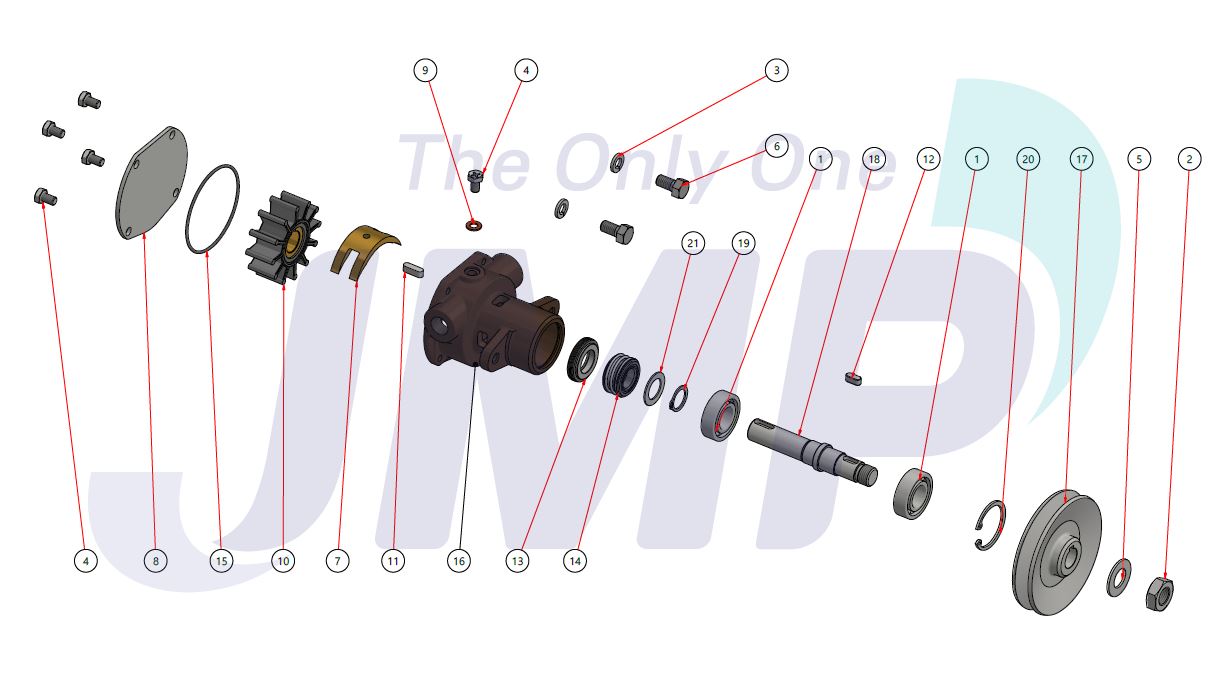

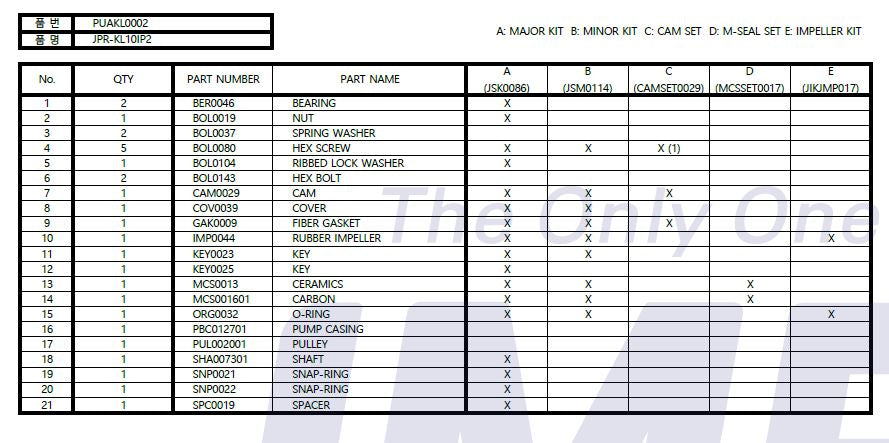

Pump Parts marked for inclusion in minor or major kits.

POS	JMP	Description	Qty	MINOR KIT	MAJOR KIT
	JSK0086	MAJOR KIT
	JSM0114	MINOR KIT
1	BER0046	BEARINGS	2		✔
2	BOL0019	NUT (Pulley)	1		✔
3	BOL0080	SCREW (Cover)	4	✔	✔
4	BOL0104	RIB LOCK WASHER	1		✔
5,3,7	CAMSET0029	CAM, SCREW, GASKET	1	✔	✔
6	COV0039	End Cover	1	✔	✔
8	7172-01	IMPELLER	1	✔	✔
9	KEY0023	KEY (Impeller)	1	✔	✔
10	KEY0025	KEY (Pulley)	1		✔
11,12,21	MCSSET0017	MECHANICAL SEAL	1	✔	✔
13	ORG0032	O RING	1	✔	✔
14		PUMP BODY	1
15		PULLEY	1
16	SHA007301	SHAFT	1		✔
17	SNP0021	SNAP RING	1		✔
18	SNP0022	SNAP RING	1		✔
19	SPC0019	SPACER	1		✔
20	CAMSET0029	CAM, SCREW, GASKET	1	✔	✔
21	MCSSET0017	MECHANICAL SEAL	1	✔	✔

Collections: Kohler Engine Cooling Pumps, Seawater Pumps - Seawater Pumps - Kohler, Seawater Pumps - Seawater Pumps - Yanmar, Seawater Pumps - Sherwood Replacement Pumps, Seawater Pumps Kohler - Aftermarket Pumps, Kohler 5/7/9EFKOZD, 6EKOD, 9/11EKOZD

Kohler Sea W Pump (Sherwood G907P, G906P) Replacement JPR-SE7107P (KL10IP2)

Sherwood G907P* (removable pulley) seawater pump replacement.

Pump Parts marked for inclusion in minor or major kits.
