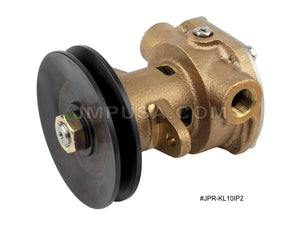

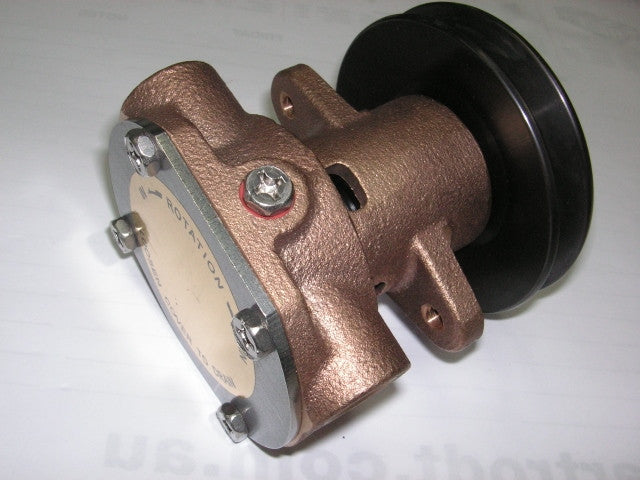

Kohler EFOZD Seawater Pump (Sherwood G907 P, G906 P) Replacement JPR-KL10IP2

Sherwood G907P* (removable pulley) seawater pump replacement.

(For a pump with the pulley pressed on, use JPR-KL10IP)

Used on Kohler generators powered by Yanmar engines.

Kohler part number 267373 / 246489 / 344089

Used on Kohler 6.5EFOZD / 8.0 EFOZD; 7EFOZD / 9EOZD; 8.5EFOZD / 10EOZD;  28EFOZD / 32EOZD 23EFOZD / 27EFOZD 25EFOZD / 28EFOZD.

*Sherwood G907P (with pulley) replaced Sherwood G907 (pump without pulley).

Sherwood G907P with pulley replaces Sherwood G906P with pulley.

This is a non-OEM, aftermarket part.

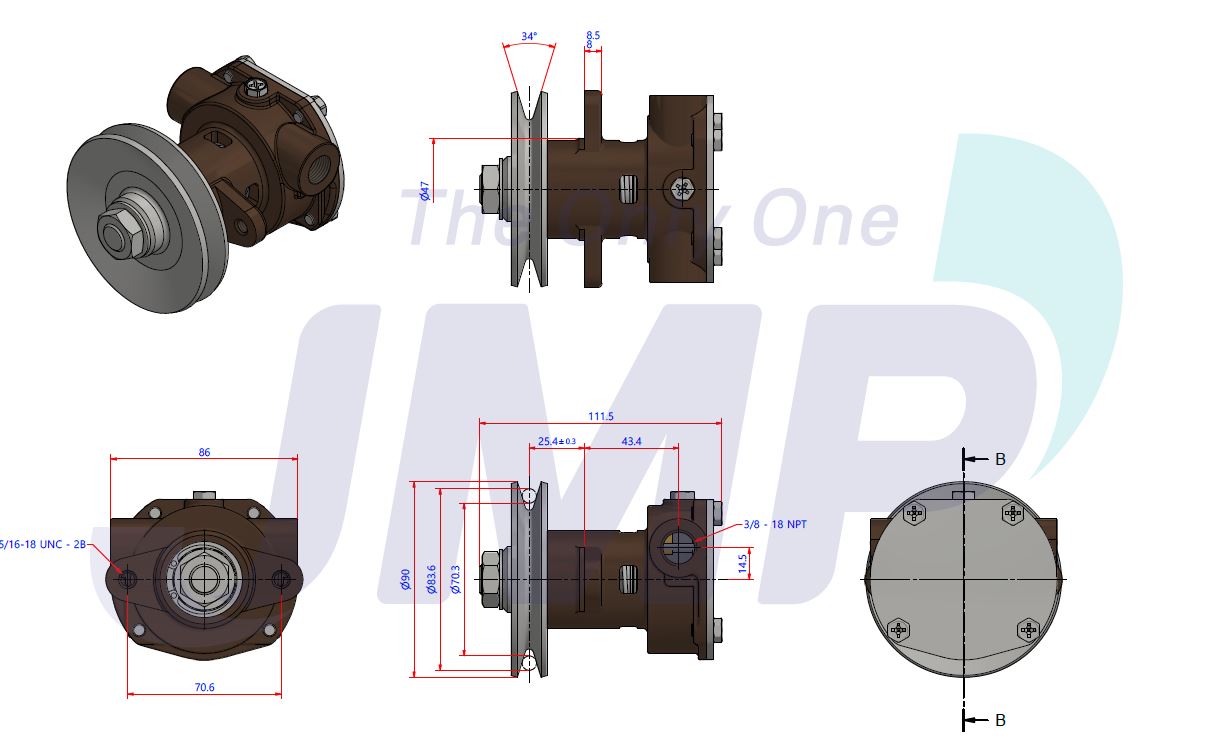

Dimensions:

Inlet Outlet Size (LxWxH) Weight Notes
3/8" 3/8" 112 x 90 x 90 1.8 kgs

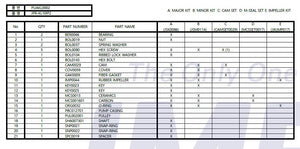

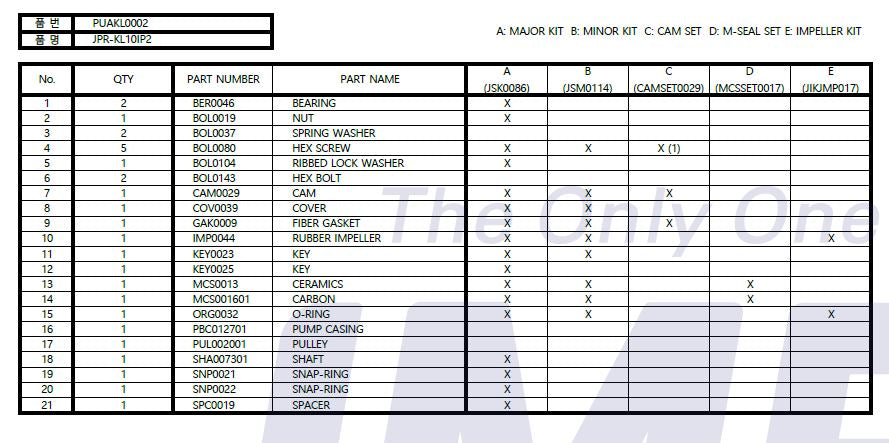

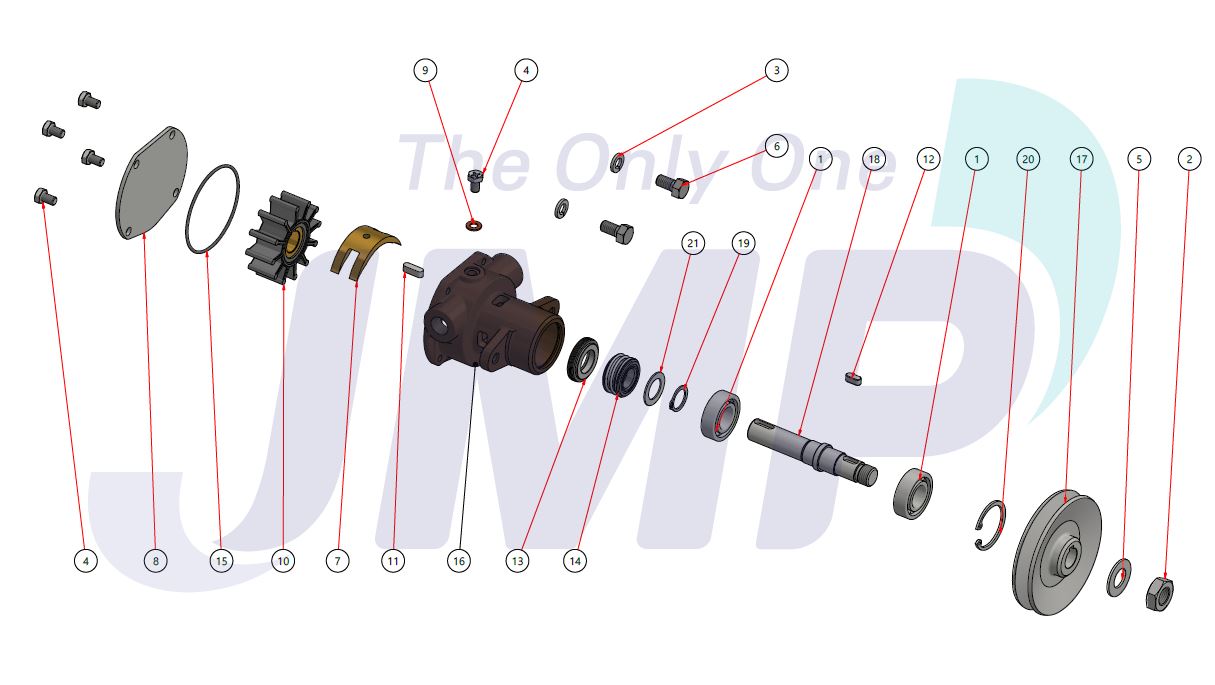

Pump Parts marked for inclusion in minor or major kits.

POS JMP Description Qty MINOR KIT MAJOR KIT

JSK0086
MAJOR KIT

JSM0114 MINOR KIT
1 BER0046 BEARINGS 2
2
BOL0019 NUT (Pulley)
1
3 BOL0080
SCREW (Cover)
4
4 BOL0104
RIB LOCK WASHER
1
5,3,7 CAMSET0029 CAM, SCREW, GASKET
1
6 COV0039 End Cover 1
8 7172-01
IMPELLER 1
9 KEY0023 KEY (Impeller)
1
10 KEY0025
KEY (Pulley)
1
11,12,21 MCSSET0017
MECHANICAL SEAL
1
13 ORG0032
O RING
1
14
PUMP BODY 1
15
PULLEY
1
16 SHA007301
SHAFT
1
17 SNP0021 SNAP RING
1
18 SNP0022
SNAP RING
1
19 SPC0019
SPACER
1
20 CAMSET0029 CAM, SCREW, GASKET 1
21 MCSSET0017 MECHANICAL SEAL 1
