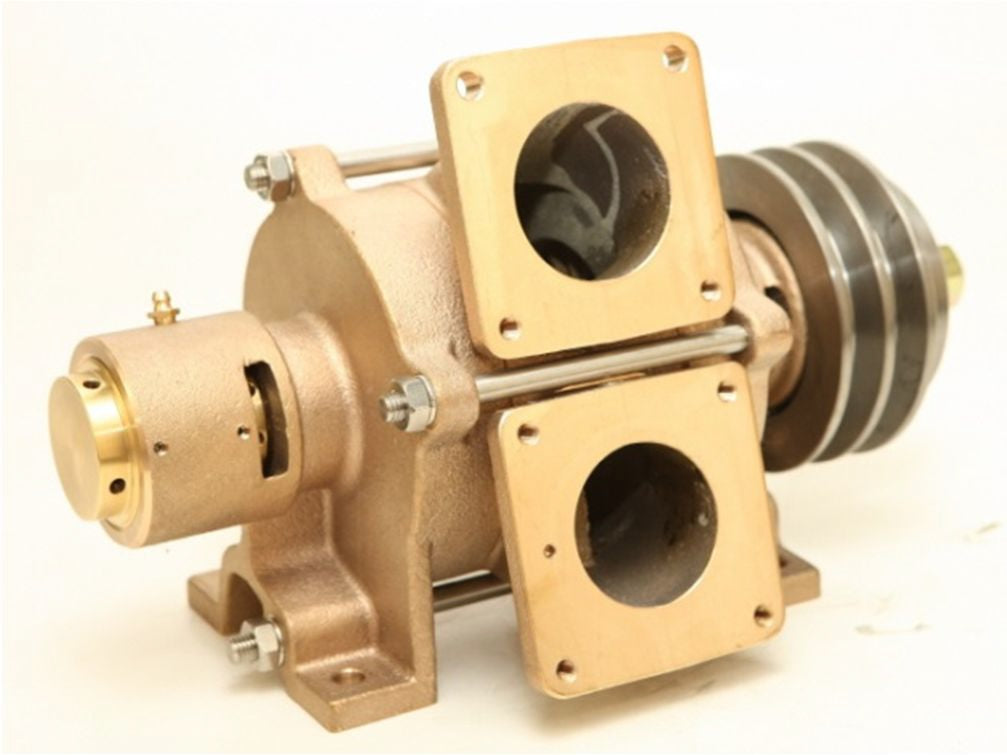

Doosan 4V158TIH Seawater Pump JMP JPR-D6505

Raw water pump for DOOSAN - 4V18TI, 4V222TI.

This is a non-OEM, aftermarket pump JMP JPR-D6505

Dimensions:

Inlet Outlet Size (LxWxH) Weight Notes
2" 2" 377 x 205 x 222 24.0 kgs


Pump Parts:

JMP OEM Description Qty Notes
IMP0021 Impeller 1
JSM0040 Minor Kit 1
JSK0054 Major Kit 1
BER0013 Bearing Drive 1
BER0007 Bearing Seal 1
N/A Screw
N/A Camset 1
N/A End Cover 1
GAK0021 Cover Gasket 1
KEY0014 Key 1
MCSSET0004 Seal 1
RET0006 Retainer Drive 1
RET0007 Retainer Seal 1
SHA0059 Shaft 1
SLI0003 Slinger 1
N/A Snap Ring Seal 1
SNP0004 Snap Ring Drive 1
N/A Wear Plate 1
PUL0017 Clutch /  Drive 1
